GE IS420UCSBH1A – High-Performance Controller Module for Mark VIe/Mark VIeS Systems

Introduction

In mission-critical power generation and industrial automation environments, controller modules must deliver high reliability, deterministic performance, and robust connectivity. The GE IS420UCSBH1A is a sophisticated controller module from GE’s Mark VIe & Mark VIeS series, designed to serve as the “brain” of complex systems such as gas turbines, steam turbines, and large automation installations. It supports high-speed processing, multiple network interfaces including proprietary I/O networks, and is built for industrial environments.

This article presents a comprehensive technical overview of the IS420UCSBH1A: its features, specifications, architecture, applications, implementation considerations, and why engineers continue to specify it in demanding systems.

Product Overview

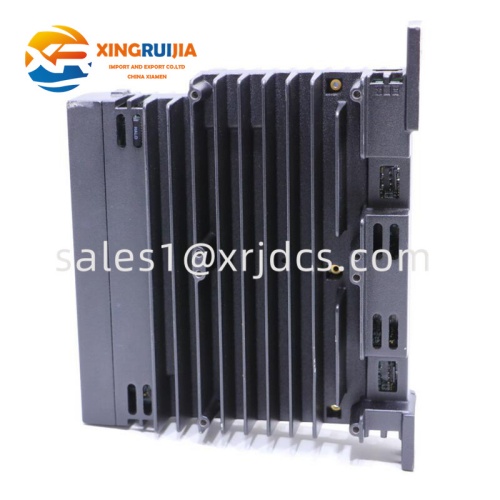

The IS420UCSBH1A is categorized as a UCSB controller module within GE’s Mark VIe/Mark VIeS family. It is designed as a self-contained computer module that executes application-specific control logic, interfaces with the I/O network, and communicates with operator/engineering stations. According to supplier information, it supports the Mark VIe/Mark VIeS, EX2100e and LS2100e platforms.  It features a robust processor and electronics architecture suitable for industrial use.

Key distinguishing points:

• The module has no battery and uses flash memory (ease of updates) and no fan (reducing moving parts) as per its “fan-less” design.

• It supports redundant architectures (dual/triple modules) in the Mark VIe system, enabling high availability.

• It is designed for power-plant and industrial automation environments, with support for hazardous locations via appropriate certification.

Typical Applications

Given its feature set, the IS420UCSBH1A is well suited for a range of demanding industrial applications:

• Gas Turbine Control Systems: As part of GE’s Speedtronic / Mark VIe / Mark VIeS control architecture in large power plants.

• Steam Turbine / Combined Cycle Plants: Where deterministic control, large I/O networks, and high availability are required.

• Balance-of-Plant Automation: Control of auxiliaries, pumps, fans, compressors, and other systems integrated into the main control architecture.

• Industrial Automation in Harsh Environments: Because of its rugged design and certification for hazardous locations, it is suitable for petrochemical plants, offshore platforms, refining, etc.

• Retrofit / Upgrade Projects: For facilities migrating or updating existing Mark VIe systems, this module may provide a direct replacement or compatible upgrade path. Supplier listings reference it as part of the Mark VIe/Mark VIeS family.

Implementation & Commissioning Considerations

When specifying or installing the IS420UCSBH1A, engineers should keep several important factors in mind:

Specification & Sizing

• Confirm that the module version (UCSB) matches the system architecture (Mark VIe, Mark VIeS) and is compatible with existing I/O racks.

• Validate power supply: ensure DC bus meets the 18-30 V DC range, with correct current capacity and redundancy if required.

• Environmental conditions: ensure ambient temperature, humidity, altitude rating match the site requirements.

• Confirm communication interface needs: Ethernet, IONet, operator/engineering stations.

Mounting & Wiring

• The module is designed for panel mounting inside a control rack. Provide proper ventilation (fanless module still needs ambient airflow) and separation of power/signals. Supplier notes “should be mounted to the panel unobstructed vertical airflow through the fins”.

• Correct wiring for DC supply, I/O networks, Ethernet cables with proper shielding and grounding is essential for system reliability.

• Ensure certification requirements for hazardous locations (if applicable) are adhered to.

Commissioning

• Load the correct firmware version, application logic, and verify compatibility with I/O modules.

• Validate communications (Ethernet link LEDs, IONet link status), check diagnostics and health indicators. Supplier listing mentions “Link/Act LEDs” etc.

• Run system tests: I/O exercise, redundant failover scenario testing, control logic validation, operator station interface.

• Establish monitoring and diagnostics: configure event logging, fault recording, and predictive maintenance monitoring.

Maintenance & Lifecycle

• Even though the module is reliable, regular inspections for dust, cabinet temperature, power supply voltage stability, and ventilation are advisable.

• Provide spare modules if uptime is critical. Since the module is part of an established system, verifying spare part availability is essential.

• Check firmware updates and compatibility with the broader control system architecture.

• Document configuration, serial numbers, software versions, and maintain backups of application logic and settings.

Why Engineers Should Specify GE IS420UCSBH1A

Here are the key reasons this module still appears in engineering specifications:

• Proven performance: With a 600 MHz processor (Intel EP80579) and robust architecture, it delivers strong compute capability for controller tasks.

• Rugged design: Fan-less, no battery, built-in power supply reduces maintenance concerns and increases reliability.

• Industrial certification: Supports hazardous location ratings and high environmental tolerance, making it suitable for power plants and industrial settings.

• Redundancy and availability: Engineered for dual/triple redundancy, enabling high-availability systems with minimal downtime.

• Compatibility with Mark VIe/Mark VIeS ecosystem: Helps integrate into existing installations or upgrades using GE control platforms.

Limitations & Engineer’s Checklist

Every product has trade-offs – engineers should verify the following when specifying:

• Legacy vs future-proofing: While robust, some installations may consider newer control architectures or migration paths; verify lifespan and support for the module. As some listings show, the product has been discontinued.

• Support and spares: Confirm availability of spares, firmware updates, technical support over the expected life of the plant.

• Power supply and infrastructure: Ensure existing bus and wiring are compatible with DC supply requirements and redundant infrastructure if needed.

• Integration complexity: If your system uses newer network protocols or I/O technology, ensure compatibility or evaluate upgrade requirements.

• Cooling and environment: Although fan-less, the module still requires proper ventilation; overheating or dust accumulation can shorten service life.

Summary & Conclusion

The GE IS420UCSBH1A controller module is a high-performance, industrial-grade controller designed for demanding automation applications in the power generation and process industries. With its 600 MHz processor, robust architecture, redundancy support, and integration into the Mark VIe/Mark VIeS ecosystem, it provides engineers with a reliable control platform for complex systems.

Whether you are specifying a new control rack, performing a retrofit, or need a replacement module in an existing installation, the IS420UCSBH1A offers strong performance, legacy compatibility, and industrial credibility. That said, ensure compatibility, check lifecycle status, plan spares, and verify that your specification aligns with the site’s environment and future roadmap.
