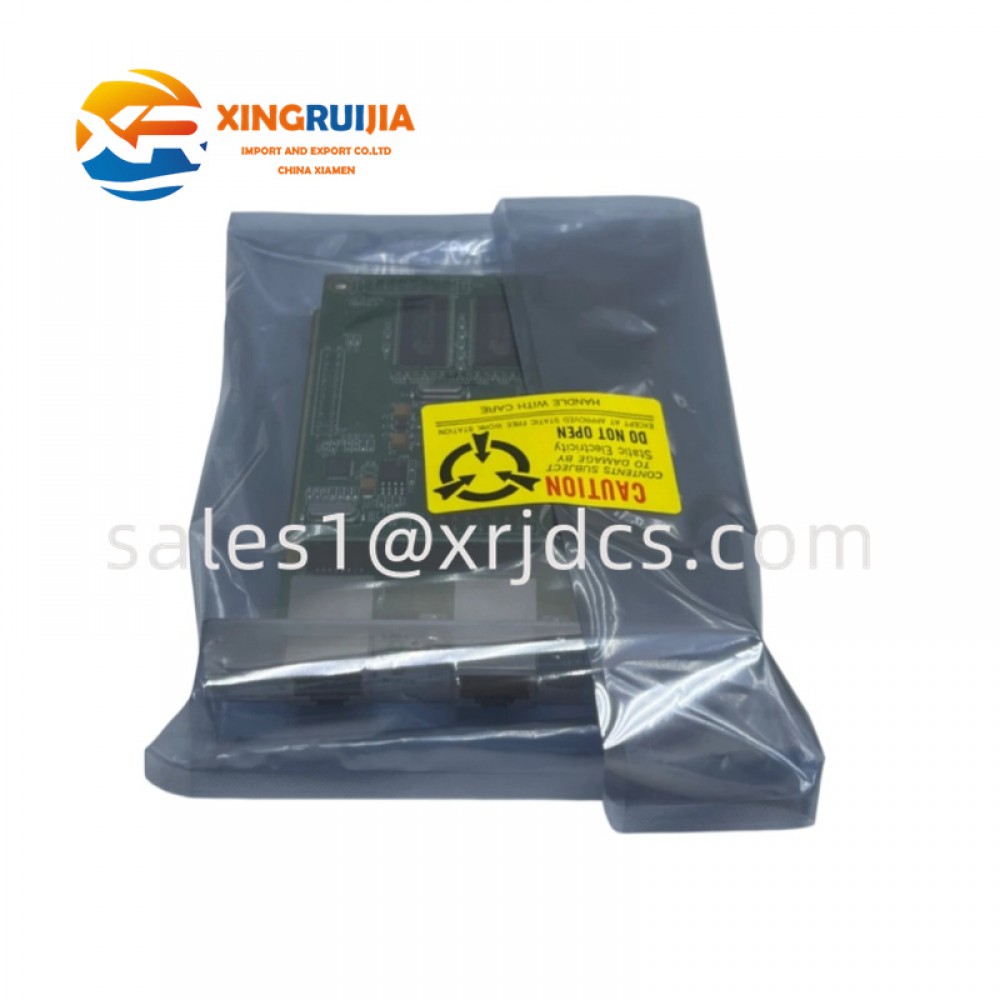

GE 1024747 1-PH

Product Overview

The GE 1024747 1-PH SNMP/Web Plug-In Adapter is a communication expansion module designed for GE Digital Energy Uninterruptible Power Supply (UPS) systems. It provides network-based monitoring and management capability by enabling UPS devices to communicate through SNMP (Simple Network Management Protocol) and a built-in web interface. The adapter allows users to remotely monitor UPS operating conditions, alarms, status information, and diagnostic data through standard Ethernet networks.

The module is mainly used with GE single-phase UPS systems, including selected VH, LP11, LP31, and LP31T series UPS platforms, providing a convenient way to integrate power protection equipment into enterprise network management systems. Through SNMP communication, the adapter can transmit UPS information to network monitoring software, allowing centralized supervision of critical power infrastructure.

Designed for industrial and commercial power environments, the GE 1024747 helps improve UPS visibility, simplify maintenance procedures, and support proactive power management strategies. It is especially suitable for applications where continuous power availability and remote equipment monitoring are required.

---

Technical Specifications

Parameter	Description
Manufacturer	GE Digital Energy
Model	1024747
Product Type	SNMP/Web Plug-In Communication Adapter
Application	Single-phase UPS network monitoring
Communication Protocol	SNMP
Web Interface	Supported
Network Function	Remote UPS monitoring and management
Installation Type	Internal plug-in module
Compatible UPS Series	GE VH, LP11, LP31, LP31T series (depending on configuration)
Management Method	Ethernet-based network communication
Monitoring Variables	UPS status, alarms, operating parameters, diagnostics
MIB Support	Standard MIB and extended UPS information
Installation Position	UPS communication expansion slot



---

Functional Description

The GE 1024747 is designed to extend the communication capability of GE Digital Energy UPS systems. Traditional UPS units mainly provide local status information through front-panel displays, but modern facilities require centralized monitoring through computer networks.

By installing the 1024747 SNMP/Web adapter, the UPS becomes part of an Ethernet-based monitoring environment. Network administrators can access UPS information remotely without physically visiting the equipment location.

The adapter performs several important functions:

• Collecting UPS operating information
• Providing SNMP-based network communication
• Offering browser-based monitoring access
• Reporting alarms and warning conditions
• Supporting centralized power management systems
• Improving UPS maintenance efficiency

The module communicates with network management platforms using SNMP protocols, allowing administrators to integrate UPS status into existing IT infrastructure monitoring systems.

---

Hardware Structure and Components

Communication Processing Unit

The internal processing unit is responsible for collecting UPS operating data and converting it into network communication information.

Its main functions include:

• Data acquisition from UPS controller
• Communication protocol processing
• Alarm transmission
• Network service management

The processor ensures stable communication between the UPS system and external monitoring platforms.

---

SNMP Communication Interface

The SNMP communication function is the core feature of the GE 1024747.

Through SNMP, users can monitor UPS conditions from network management software.

Typical monitored information includes:

• Input power status
• Battery condition
• UPS operating mode
• Output status
• Alarm events
• System warnings

The adapter supports standard SNMP monitoring methods, allowing compatibility with many network management solutions.

---

Embedded Web Interface

The built-in web function allows users to access UPS information through a standard web browser.

This eliminates the need for dedicated configuration software in many maintenance situations.

Users can view:

• Real-time UPS status
• Alarm information
• Basic operating parameters
• Communication settings

The web interface provides a convenient method for remote diagnostics and configuration.

---

Plug-In Installation Design

The GE 1024747 uses a plug-in module structure designed for installation inside compatible UPS systems.

Advantages include:

• Simple installation
• Reduced external wiring
• Compact design
• Easy replacement during maintenance

The internal installation keeps communication components protected inside the UPS enclosure.

Application Fields

Data Centers and IT Infrastructure

Data centers require continuous monitoring of backup power systems.

The GE 1024747 allows administrators to supervise UPS performance and receive alerts related to:

• Battery conditions
• Power failures
• Overload conditions
• UPS faults

---

Industrial Automation Systems

Industrial facilities depend on UPS systems to protect PLCs, DCS systems, and control equipment.

The adapter provides remote visibility of UPS operating conditions, helping maintain stable automation operation.

Typical applications include:

• Factory control rooms
• Process automation systems
• Manufacturing facilities

---

Telecommunications Facilities

Communication systems require reliable backup power.

The GE 1024747 enables centralized monitoring of UPS installations across multiple locations.

Applications include:

• Network equipment rooms
• Communication stations
• Remote infrastructure sites

---

Building Management Systems

Modern buildings often integrate UPS monitoring into centralized management platforms.

The adapter helps facility managers monitor power protection equipment efficiently.

---

Installation and Configuration

Installation Requirements

Before installing the GE 1024747, technicians should verify:

• Compatible GE Digital Energy UPS model
• Correct communication slot availability
• Proper network connection
• Suitable operating environment

The UPS should be powered down according to manufacturer procedures before installing the communication module.

---

Network Configuration

After installation, users typically configure:

• IP address settings
• Network parameters
• SNMP community information
• Web access settings

Correct network configuration ensures reliable communication between the UPS and monitoring systems.

---

Maintenance Recommendations

To maintain stable operation, regular checks should include:

• Verifying network communication
• Checking SNMP data availability
• Reviewing UPS alarm information
• Inspecting module connection status
• Confirming web interface accessibility

For critical UPS installations, keeping a replacement communication adapter can reduce downtime during unexpected module failures.

---

Compatibility and System Integration

The GE 1024747 belongs to the GE Digital Energy UPS communication accessory family. It is designed as an optional communication expansion module for compatible single-phase UPS systems.

The adapter integrates UPS equipment into modern network management environments by providing:

• SNMP monitoring
• Web-based access
• Remote diagnostics
• Centralized power management

It is particularly useful in installations where multiple UPS units must be monitored from a single control location.

---

Product Summary

The GE 1024747 1-PH SNMP/Web Plug-In Adapter is a practical communication accessory designed to enhance GE Digital Energy UPS monitoring capability.

With SNMP support, web-based management, remote status monitoring, and simple plug-in installation, the adapter provides an effective solution for integrating UPS systems into modern network management environments.

————————————————————————————————————————————————————————————————————————
