GE 117D7719G

Purpose of the Board

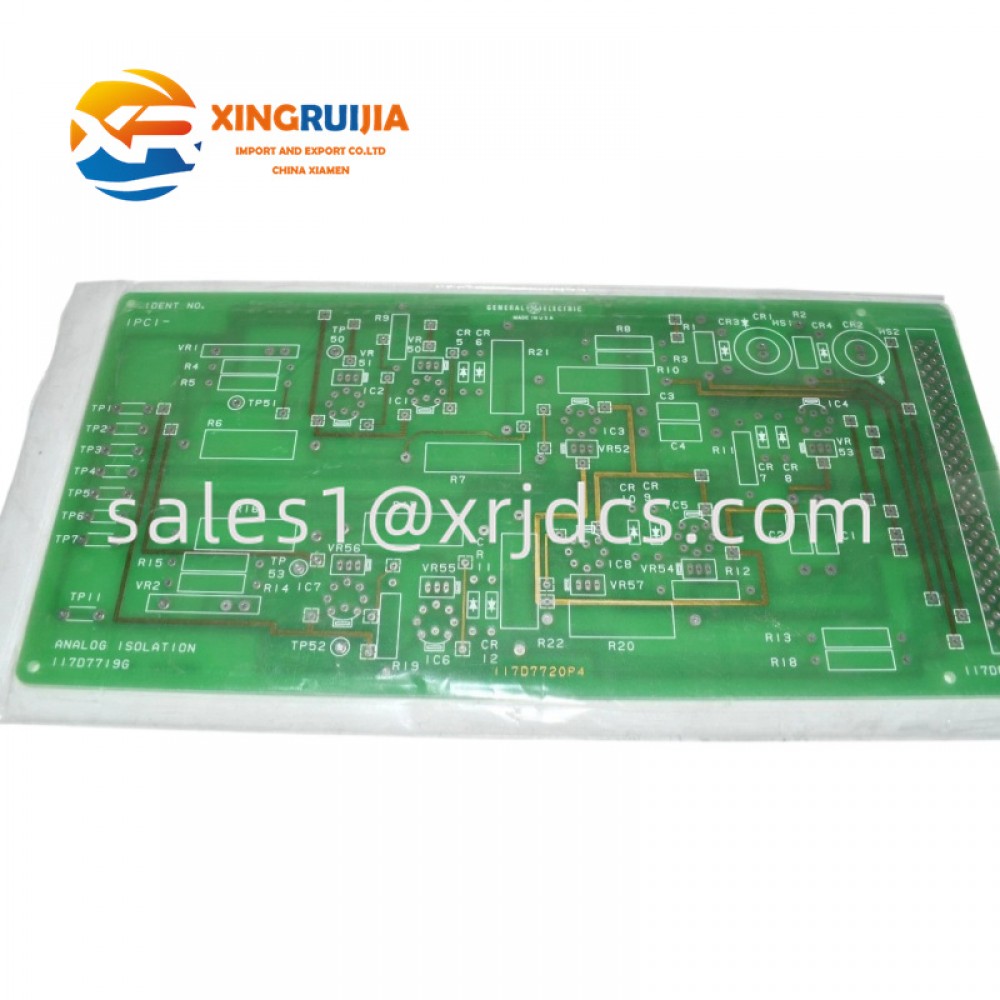

The GE IPCI 117D7719G is an Analog Isolation PCB intended for compatible GE industrial control equipment. Unlike a general-purpose controller, this board performs a dedicated board-level function within the larger IPCI control architecture.

Analog isolation is important in industrial systems because different signal circuits may need to remain electrically separated. The 117D7719G is designed around this type of application.

Technical Profile

The essential identification information is presented below:

• Manufacturer: General Electric
• Series: IPCI
• Part Number: 117D7719G
• Board Type: Analog Isolation PCB
• Primary Function: Analog signal isolation
• Product Category: Industrial control board
• Installation: Integrated PCB assembly
• Application: Compatible GE control equipment

The exact electrical ratings are dependent on the host system and board configuration. For this reason, original equipment documentation should be used when specific voltage, current, or environmental ratings are required.

How It Fits Into a Control System

The 117D7719G functions as one part of an industrial control assembly. Its PCB contains the electronic circuitry and connection interfaces necessary for its assigned isolation function.

Rather than replacing an entire control cabinet or system, maintenance teams can use the appropriate board-level replacement when the existing system configuration supports it.

This approach can help reduce unnecessary modifications to established equipment.

Notable Characteristics

The board offers several practical characteristics for industrial maintenance:

Signal isolation:
It is designed for analog isolation within compatible control circuitry.

Board-level integration:
Its compact format allows it to be installed as part of an existing equipment assembly.

Legacy-system support:
It can be useful when maintaining older GE industrial control installations.

Replacement flexibility:
A matching PCB may allow maintenance teams to restore an existing system without redesigning the complete control architecture.

Maintenance Applications

The GE IPCI board can be considered for industrial automation and process-control environments. Possible applications include analog signal circuits, control cabinets, equipment refurbishment, and legacy system maintenance.

Before purchasing, technicians should compare the complete 117D7719G number with the existing board. Connector position, revision information, and physical configuration should also be checked.

Installation Notes

Power should be removed from the relevant equipment before PCB replacement. Technicians should label or document connections before disconnecting the original board.

Once installed, verify that every connector is correctly seated. Then inspect the surrounding wiring and perform system-level checks before returning the equipment to service.

Store spare boards in anti-static packaging. A controlled, dry storage environment is recommended to protect the PCB from contamination and electrostatic damage.

————————————————————————————————————————————————————————————————————————
