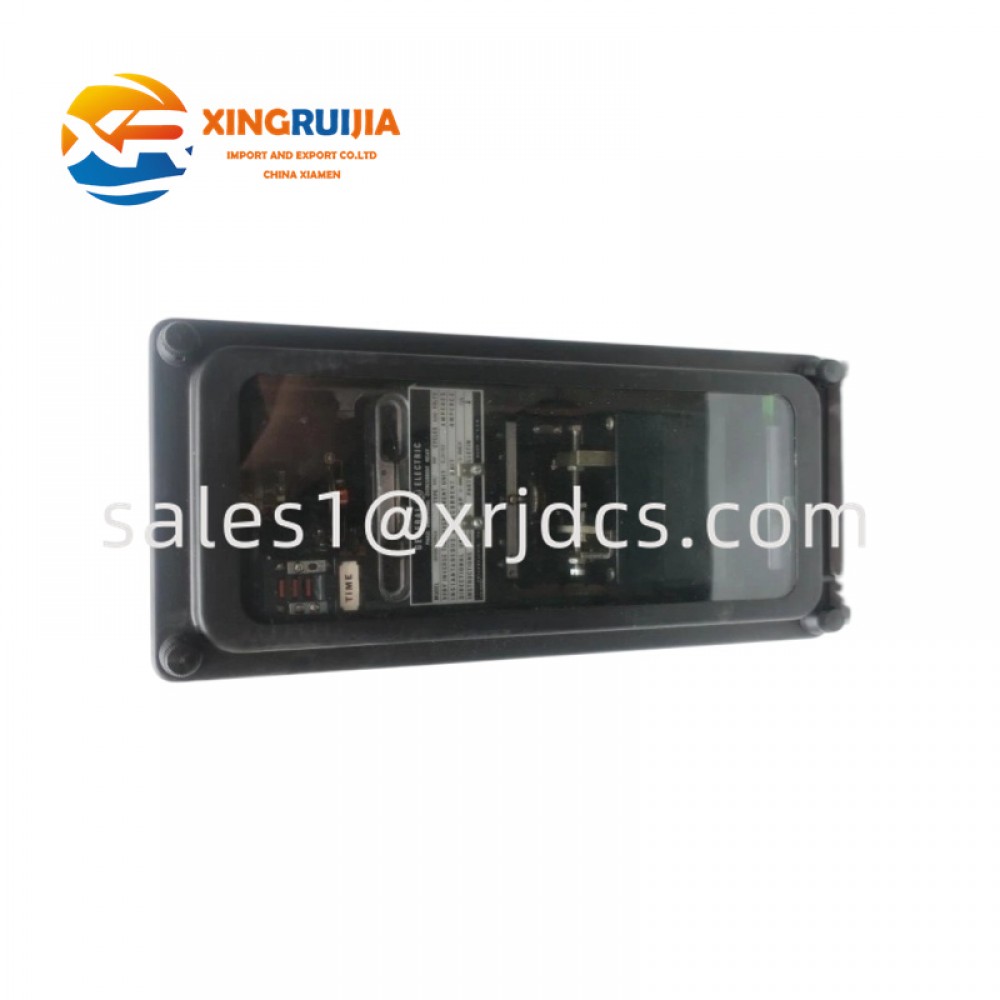

GE 12IBC53M1A

Product Overview

The GE 12IBC53M1A is an electromechanical Phase Directional Overcurrent Relay designed for feeder and transmission line protection in medium- and high-voltage power systems. As a member of the GE Type IBC relay family, this device combines directional fault detection with time-overcurrent protection, enabling selective isolation of faults while maintaining system stability and service continuity. The relay is commonly utilized in substations, industrial power distribution networks, utility transmission systems, and critical electrical infrastructure.

The relay operates using proven induction-disk and induction-cup technologies, providing dependable performance in applications where robust electromechanical protection remains preferred or where legacy protection schemes continue to operate.

---

Primary Functions

Rather than simply measuring current magnitude, the 12IBC53M1A determines both the magnitude and direction of fault current flow. This capability allows it to:

• Detect directional phase faults
• Provide time-delayed overcurrent protection
• Coordinate with upstream and downstream protection devices
• Improve fault discrimination
• Minimize unnecessary circuit breaker operations
• Enhance feeder protection reliability
• Support transmission line protection schemes

These functions are especially important in interconnected power systems where fault current may flow from multiple sources.

---

Technical Specifications

General Characteristics

• Manufacturer: General Electric (GE)
• Model Number: 12IBC53M1A
• Product Type: Phase Directional Overcurrent Relay
• Relay Family: IBC
• IEEE Device Number: 67
• Operating Principle: Electromechanical
• Frequency: 60 Hz
• Voltage Rating: 120 VAC Polarizing Circuit
• Time Characteristic: Very Inverse
• Pickup Range: 1.5–12 A
• Mounting Style: M1 Drawout Case
• Contact Arrangement: One Normally Open (N.O.) Contact
• Application: Phase Directional Overcurrent Protection
• Protection Category: Feeder and Transmission Line Protection
• Instruction Manual Reference: GEK-49821

---

Design and Construction

The relay utilizes a traditional electromechanical design consisting of:

• Induction-disk time-overcurrent unit
• Induction-cup directional unit
• Target and seal-in assembly
• Adjustable pickup tap settings
• Mechanical timing mechanism
• Drawout relay case
• Front-panel calibration and setting controls

The directional unit supervises operation of the time-overcurrent element, ensuring that relay tripping occurs only when fault current flows in the predetermined direction.

---

Key Features

Directional Fault Detection

The relay employs quadrature polarization techniques to determine the direction of fault current flow, improving selectivity and coordination in complex power networks.

Very Inverse Time Characteristic

The very inverse curve allows faster operation during high-current fault conditions while maintaining coordination for lower fault currents, helping reduce equipment stress and system damage.

Proven Electromechanical Reliability

Unlike fully electronic protection devices, the relay utilizes robust mechanical operating principles that have been trusted in utility and industrial applications for decades. Many facilities continue to operate similar GE electromechanical relays due to their durability and predictable performance.

Flexible Protection Coordination

The adjustable pickup settings allow engineers to coordinate protection schemes with circuit breakers, transformers, generators, and feeder systems.

---

Typical Applications

The GE 12IBC53M1A is commonly found in:

Utility Power Systems

• Distribution substations
• Transmission line protection
• Radial feeder networks
• Interconnected utility systems

Industrial Facilities

• Steel mills
• Petrochemical plants
• Mining operations
• Manufacturing facilities

Energy Infrastructure

• Power generation stations
• Renewable energy interconnections
• Cogeneration facilities
• Switchgear modernization projects

Its directional functionality makes it especially suitable for systems with multiple power sources and bidirectional fault current paths.

---

Installation Considerations

For reliable operation, the following practices are recommended:

1. Verify CT and PT ratios before installation.
2. Ensure correct directional polarity connections.
3. Confirm relay settings match the protection coordination study.
4. Inspect drawout case contacts for proper engagement.
5. Perform secondary injection testing before commissioning.
6. Verify breaker trip circuit functionality.

Correct polarity and directional connections are critical to proper relay performance.

---

Maintenance Recommendations

Routine maintenance may include:

• Visual inspection of contacts and mechanical components
• Pickup and timing verification tests
• Calibration checks
• Cleaning of relay mechanisms
• Inspection of drawout case connections
• Trip circuit continuity testing

Periodic testing helps maintain accurate protection performance throughout the relay's operational life.

---

Advantages in Legacy Protection Systems

Organizations maintaining legacy protection infrastructure often choose the 12IBC53M1A because it offers:

• Proven long-term reliability
• Predictable electromechanical operation
• Easy coordination with existing schemes
• Minimal software dependency
• Strong immunity to cyber-related concerns
• Compatibility with older switchgear installations

These benefits make the relay valuable for facilities operating established protection systems where modernization is not immediately required.

---

Conclusion

The GE 12IBC53M1A Phase Directional Overcurrent Relay is a robust electromechanical protection device designed for selective fault detection and feeder protection. Featuring a very inverse time-overcurrent characteristic, directional fault sensing, and a 1.5–12 A pickup range, it remains a dependable solution for substations, transmission networks, industrial power systems, and legacy protection applications. Its proven design and reliable operating principles continue to make it a trusted component in electrical protection schemes worldwide.

————————————————————————————————————————————————————————————————————————
