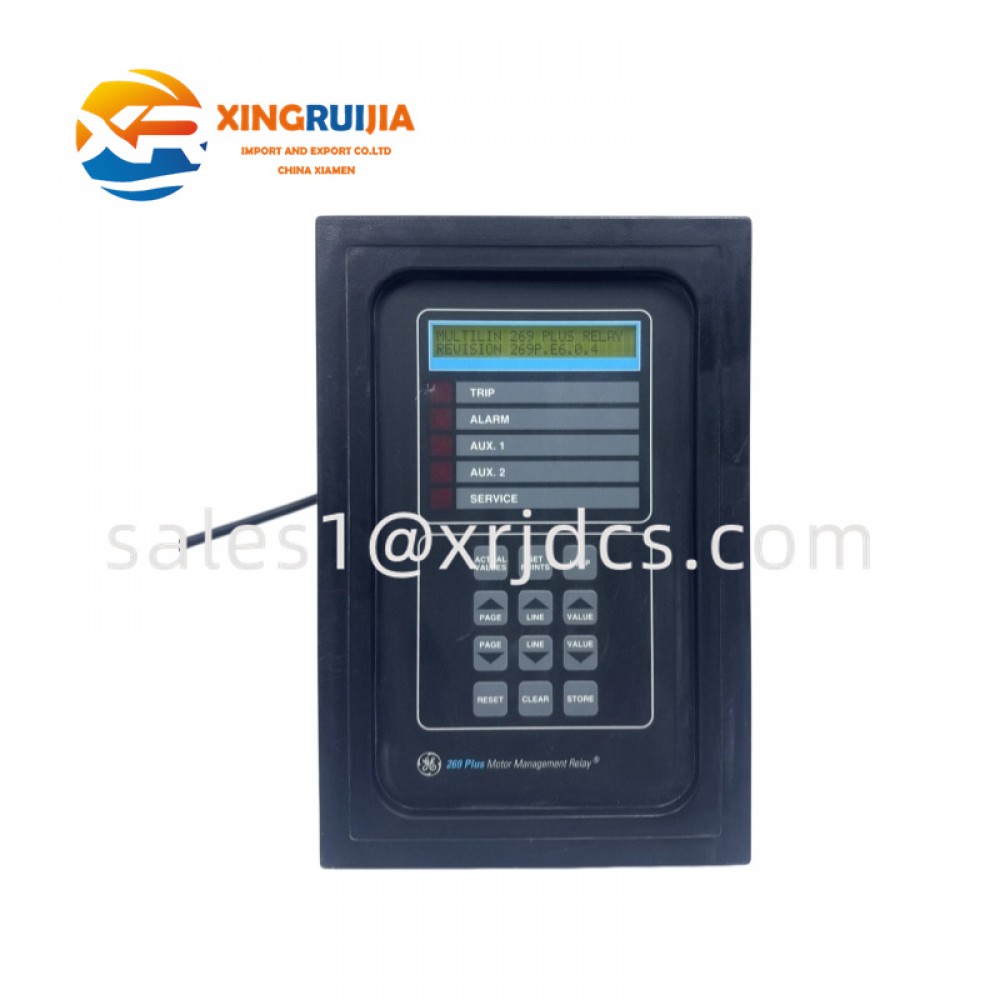

GE 269PLUS-100P-HI

Product Overview

The GE 269PLUS-100P-HI is a Microprocessor-Based Motor Management Relay from the GE Multilin 269 Plus series. It is designed to provide comprehensive protection, monitoring, and control functions for industrial three-phase AC motors and their associated mechanical equipment. The relay combines thermal overload protection, current monitoring, RTD temperature measurement, fault detection, and advanced diagnostic functions into a single intelligent motor protection device.

The GE 269PLUS-100P-HI model is configured with 100 Ohm Platinum RTD inputs and a high-range universal control power supply, making it suitable for demanding industrial environments where accurate motor temperature monitoring and reliable protection are required. The relay continuously monitors motor operating conditions and disconnects equipment when potentially damaging conditions are detected.

Designed for applications such as pumps, fans, compressors, conveyors, and other critical motor-driven systems, the 269PLUS-100P-HI helps prevent motor failures caused by overload, overheating, phase imbalance, locked rotor conditions, and mechanical problems.

---

Technical Specifications

Parameter	Description
Manufacturer	GE Multilin
Model	269PLUS-100P-HI
Product Type	Motor Management Relay
Series	GE Multilin 269 Plus
Application	Three-phase AC motor protection
RTD Type	100 Ohm Platinum RTD
Control Power	90–300 VDC / 80–265 VAC
Current Input	Phase CT input
Ground Fault Input	Ground CT input
Motor Protection	Thermal overload, short circuit, ground fault, phase loss
Temperature Monitoring	Stator and bearing RTD monitoring
Overload Protection	8 standard overload curves + FlexCurve
Communication	Metering and communication interface
Installation	Panel mounting
Operating Temperature	-25°C to +60°C
Storage Temperature	-25°C to +60°C
Power Consumption	Approx. 10 VA typical, 20 VA maximum
Sampling Method	RMS current measurement
Input Frequency Range	20–400 Hz depending on input type

---

Functional Description

The GE 269PLUS-100P-HI Motor Management Relay functions as an intelligent protection and monitoring device between the electrical power system and industrial motors.

Traditional motor protection methods usually rely on simple thermal overload relays. However, modern industrial motors require more comprehensive monitoring because failures can result from electrical faults, excessive temperature, mechanical blockage, or abnormal operating conditions.

The 269PLUS-100P-HI continuously collects operating data from current transformers, RTD temperature sensors, and external control signals. The internal microprocessor analyzes this information and determines whether the motor is operating within safe limits.

The relay provides protection against:

• Motor overload
• Locked rotor conditions
• Mechanical jam conditions
• Phase loss
• Phase imbalance
• Ground faults
• Short circuits
• Excessive winding temperature
• Bearing overheating
• Excessive motor starts

When a dangerous condition is detected, the relay can activate trip outputs, generate alarms, and record operating information for maintenance analysis.

---

Hardware Structure and Main Components

Microprocessor Control Unit

The core of the GE 269PLUS-100P-HI is a high-performance microprocessor system responsible for protection calculations, monitoring functions, and communication management.

The processor performs:

• Real-time current calculation
• Thermal model calculation
• Fault detection
• Alarm management
• Event recording
• Self-diagnostics

This digital architecture provides more accurate protection compared with traditional electromechanical motor relays.

---

Current Measurement Interface

The relay receives motor current signals through external current transformers.

The current monitoring system supports:

• Phase current measurement
• Ground fault current measurement
• Overcurrent detection
• Load monitoring

The relay uses calibrated RMS measurement technology to accurately calculate motor operating conditions.

---

RTD Temperature Monitoring Section

The GE 269PLUS-100P-HI includes inputs for 100 Ohm Platinum RTD sensors.

RTD monitoring allows the relay to directly measure motor temperatures, including:

• Stator winding temperature
• Bearing temperature
• Additional equipment temperatures

This function provides direct thermal protection and helps prevent insulation damage caused by excessive heat.

---

Digital Input and Output Interface

The relay provides multiple input and output connections for integration with motor control systems.

Typical connections include:

• External reset switches
• Emergency restart controls
• Motor starter signals
• Alarm outputs
• Trip circuits

These interfaces allow the relay to communicate with external control equipment.

---

Communication Interface

The communication capability allows users to access motor operating information and relay status.

Available functions include:

• Remote monitoring
• Parameter configuration
• Fault record retrieval
• Diagnostic analysis

The relay can be integrated into industrial automation systems for centralized motor management.

Emergency Restart Capability

The relay supports emergency restart functions, allowing authorized operators to restore motor operation after specific fault conditions when required.

This feature is useful in industrial processes where maintaining production continuity is important.

---

Fault Recording and Diagnostics

The GE 269PLUS-100P-HI records operational events and fault conditions.

Maintenance engineers can use this information to analyze:

• Motor trips
• Overload events
• Temperature alarms
• Electrical disturbances

This reduces troubleshooting time and improves preventive maintenance strategies.

---

Application Fields

Industrial Pump Systems

The relay is widely used for protecting motors driving:

• Water pumps
• Chemical pumps
• Cooling pumps
• Process pumps

It helps prevent damage caused by overload, blocked flow, or abnormal mechanical conditions.

---

Compressors and Fans

Large compressors and ventilation fans require reliable motor protection.

The GE 269PLUS-100P-HI provides monitoring functions for:

• Motor temperature
• Current imbalance
• Mechanical overload
• Startup conditions

---

Manufacturing Equipment

Industrial production lines depend on continuous motor operation.

Applications include:

• Conveyor systems
• Machine tools
• Material handling equipment
• Processing machinery

---

Power and Utility Facilities

The relay can be used for auxiliary motor protection in:

• Power plants
• Water treatment facilities
• Substations
• Industrial power systems

---

Installation and Configuration

Installation Requirements

Before installing the GE 269PLUS-100P-HI, technicians should confirm:

• Correct control voltage supply
• Proper CT wiring
• Correct RTD sensor connection
• Accurate motor parameters
• Proper grounding

The relay should be installed inside a suitable electrical cabinet with protection from excessive dust and moisture.

---

Parameter Configuration

The relay can be configured according to motor characteristics, including:

• Motor full-load current
• Overload curve selection
• RTD alarm limits
• Trip thresholds
• Restart conditions

Correct configuration ensures reliable protection without unnecessary trips.

---

Maintenance Recommendations

Regular maintenance should include:

• Checking relay diagnostic information
• Testing trip and alarm functions
• Inspecting CT connections
• Verifying RTD sensor accuracy
• Reviewing fault records
• Checking communication status

For critical motor applications, maintaining a spare GE 269PLUS-100P-HI relay can reduce downtime during unexpected failures.

---

Compatibility and System Integration

The GE 269PLUS-100P-HI belongs to the GE Multilin 269 Plus Motor Management Relay family.

It is designed for integration into industrial motor control systems requiring:

• Intelligent motor protection
• Temperature monitoring
• Fault diagnosis
• Remote monitoring capability

The relay can replace traditional motor overload devices by combining multiple protection functions into one compact unit.

---

Product Summary

The GE 269PLUS-100P-HI Motor Management Relay is a reliable protection solution designed for industrial three-phase AC motors.

With microprocessor-based protection technology, 100 Ohm Platinum RTD temperature monitoring, advanced overload protection, fault diagnostics, and flexible configuration options, it provides comprehensive protection for critical motor-driven equipment.
