GE 324B8001G1 FREQSPD

Product Overview

The GE 324B8001G1 is a FREQSPD (Frequency Speed) Card used in GE Mark V turbine control systems. Available industrial parts references identify this model as a Mark V FREQSPD PCB module, with versions designed for 3600 Hz and 4800 Hz applications.

The board is designed to process speed and frequency-related signals within the turbine control architecture. By handling these signals accurately, the FREQSPD card helps the Mark V system monitor rotating equipment and maintain stable operating conditions.

Because it is a dedicated control board, the 324B8001G1 should be installed only in compatible GE Mark V systems.

Technical Parameters

Item	Description
Manufacturer	GE
Model	324B8001G1
Product Type	FREQSPD Card
System Platform	GE Mark V
Main Function	Frequency and speed signal processing
Frequency Versions	3600 Hz / 4800 Hz
Component Type	PCB Assembly
Installation	Mark V control cabinet
Application	Turbine control systems

Detailed electrical specifications, connector assignments, and calibration parameters should be verified according to the original Mark V documentation before installation.

Key Features

• Designed for GE Mark V systems
• Dedicated frequency and speed processing functions
• Supports turbine monitoring applications
• PCB-based industrial design
• Suitable for replacement and maintenance projects
• Helps maintain stable control performance
• Compatible with legacy GE turbine systems

Structure and Components

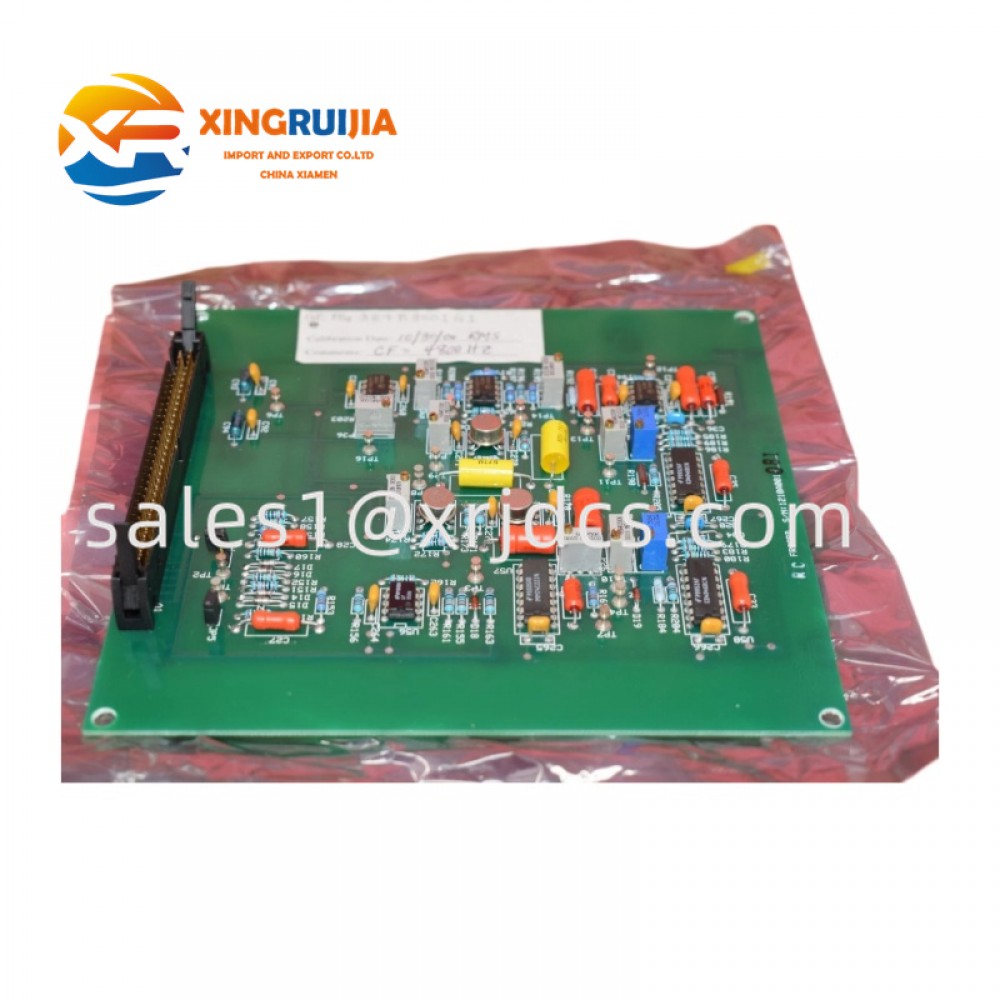

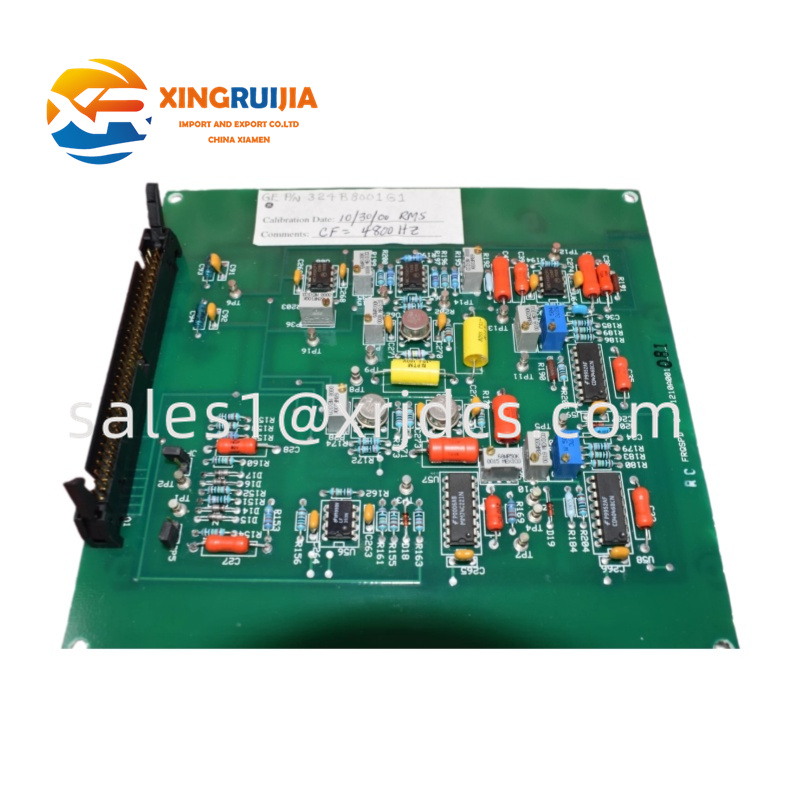

The GE 324B8001G1 consists of a printed circuit board populated with signal-conditioning components, electronic circuits, connectors, and processing sections dedicated to speed and frequency measurements.

The board receives input signals from associated equipment and provides processed information to the Mark V control system. Depending on the system configuration, the card may be associated with turbine speed detection and frequency monitoring functions.

Because Mark V systems often contain multiple specialized boards, technicians should verify the exact part number before replacement.

Applications

Typical applications include:

• Gas turbine control systems
• Steam turbine systems
• Power generation facilities
• Industrial rotating machinery
• Legacy GE Mark V installations
• Turbine retrofit and maintenance projects

Installation and Maintenance

Before replacing the board, isolate all power sources and follow plant safety procedures. Compare the replacement PCB with the installed unit, paying attention to the part number, connectors, and mounting configuration.

During maintenance, keep the board protected from static electricity, dust, and moisture. After installation, verify speed and frequency signals before returning the system to service.

————————————————————————————————————————————————————————————————————————
