Reliable motor protection is essential wherever large industrial motors operate continuously. A motor failure can affect production, process stability, equipment availability, and maintenance costs. For this reason, modern industrial facilities require protection equipment that can monitor motor operating conditions while providing dependable protection against abnormal electrical and thermal conditions.

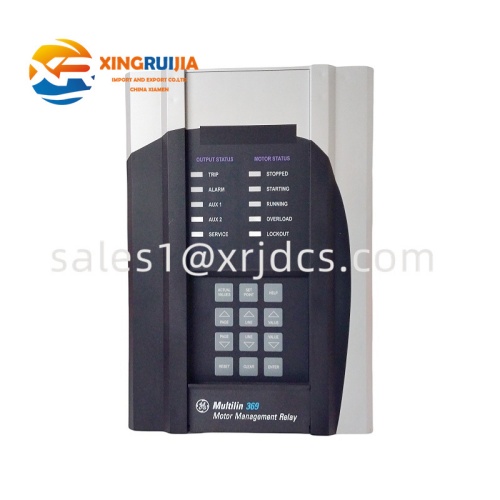

The GE 369-HI-R-0-0-0-0-E is a GE Multilin 369 Motor Management Relay designed for motor protection, monitoring, and management applications. This particular configuration combines high-range control power, built-in RTD capability, and enhanced diagnostic functions, making it a valuable choice for industrial facilities that need a comprehensive motor protection solution.

For customers looking for a replacement relay, maintenance spare, or an additional unit for critical equipment, understanding the configuration represented by each section of the model number is important. Our company supplies industrial automation and electrical control components and can assist customers with sourcing the GE 369-HI-R-0-0-0-0-E according to their project requirements.

What Is the GE Multilin 369?

The GE Multilin 369 is a motor management relay developed for the protection and management of medium-sized AC motors. Rather than providing only a basic trip function, the 369 platform integrates motor protection, monitoring, diagnostic, and control-related capabilities into a single relay.

This makes the product useful in industrial applications where motors are important parts of the production process. Pumps, compressors, fans, conveyors, and other motor-driven equipment can benefit from continuous monitoring and coordinated protection.

The relay can evaluate electrical and thermal operating conditions and provide protection when configured operating limits are exceeded. By combining protection and diagnostic information, it can also help maintenance teams understand motor operating conditions and investigate abnormal events.

Understanding the 369-HI-R-0-0-0-0-E Configuration

One of the most useful characteristics of this particular model is the information contained within its ordering code.

According to the GE 369 ordering structure, HI identifies the high-range control power option. GE specifies this option for 50–300 VDC or 60–265 VAC control power. The R option provides 12 built-in RTD inputs, allowing temperature information from the motor and associated equipment to be incorporated into the protection system. The remaining option positions are set to zero, indicating that the corresponding optional features are not selected. Finally, E identifies the enhanced diagnostics and enhanced faceplate option.

This configuration can therefore be summarized as:

The exact configuration should always be checked against the relay nameplate and original project documentation before replacement.

Built for Motor Protection

Industrial motors can experience a wide range of operating problems. Overload, excessive starting, thermal stress, abnormal current conditions, phase-related problems, and mechanical issues can all contribute to premature motor failure.

A motor management relay helps address these risks by continuously evaluating relevant operating information and applying configured protection logic.

The GE Multilin 369 platform is designed to protect three-phase motors while also providing useful operating information. This approach allows the relay to become part of a broader motor management strategy rather than functioning simply as an emergency trip device.

In a well-designed system, the relay works together with current transformers, control equipment, circuit breakers, motor starters, sensors, and plant automation systems.

The Value of Built-In RTD Inputs

The R option is particularly significant for the GE 369-HI-R-0-0-0-0-E. The GE documentation identifies this option as providing 12 built-in RTD inputs.

Temperature monitoring can be extremely valuable in industrial motor applications. Electrical loading is not the only factor that influences motor condition. Bearing temperature, stator temperature, ambient conditions, and other thermal information can provide additional insight into motor performance.

With multiple RTD inputs available, the relay can incorporate temperature information into the overall monitoring and protection strategy.

For maintenance teams, this capability can provide additional information when investigating recurring trips or unusual motor behavior. Instead of relying solely on current measurements, engineers can evaluate electrical and thermal conditions together.

Enhanced Diagnostics for Better Maintenance

The final E in the model number identifies the enhanced diagnostic configuration. GE documentation lists several enhanced features, including an enhanced faceplate with motor status indicators, Motor Health Report, enhanced learned data, Motor Start Data Logger, enhanced event recorder, and security audit trail events.

These capabilities are valuable because troubleshooting industrial motors often requires more than knowing whether a relay has tripped.

Maintenance personnel may need to understand what happened before an event, how the motor behaved during starting, and whether operating conditions have changed over time. Diagnostic and event information can make this investigation more efficient.

Consequently, the enhanced version of the relay can be particularly attractive for facilities where motor availability is closely connected to production performance.

Where Can GE 369-HI-R-0-0-0-0-E Be Used?

The GE 369 platform can be considered for a broad range of industrial motor applications. Typical environments may include:

• Manufacturing plants
• Oil and gas facilities
• Chemical processing systems
• Water and wastewater plants
• Power generation facilities
• Mining operations
• Cement plants
• Steel production
• Pumping stations
• Process automation systems

The relay is especially relevant where motor protection is a critical part of overall plant reliability.

For example, a failure involving a large process pump can interrupt an entire production line. Similarly, unexpected shutdown of a compressor or cooling fan can create operational problems beyond the motor itself. Proper motor protection can therefore contribute to both equipment protection and process continuity.

Replacement Considerations

When purchasing a replacement GE 369 relay, matching the basic series is not enough. The complete ordering code should be compared carefully.

The difference between HI and LO control power, for example, can determine whether the relay is suitable for the existing control-power architecture. Likewise, the presence of the R option is important when RTD monitoring is required.

The E suffix should also be confirmed because enhanced diagnostics and the enhanced faceplate provide functions that may be important to the original application.

Before replacing an existing relay, engineers should verify:

• Complete model number
• Control-power requirements
• RTD configuration
• Existing protection settings
• Wiring and terminal assignments
• Communication requirements
• Hardware condition
• Firmware compatibility
• Existing system documentation

A qualified engineer should also review the protection settings before returning the equipment to service.

Why Keep a Spare GE 369 Relay?

For plants operating critical motors, maintaining an appropriate spare-parts strategy can significantly reduce maintenance risk.

A protection relay may operate reliably for years, but unexpected failures can still occur because of aging components, environmental conditions, electrical faults, or other system problems. If a replacement cannot be sourced quickly, a relatively small relay failure can lead to a longer equipment outage.

Keeping a GE 369-HI-R-0-0-0-0-E as a maintenance spare can provide additional flexibility. It can also make planned replacement projects easier because the required component is already available when maintenance work begins.

For older installations, spare-parts planning is particularly important because certain configurations may become more difficult to source over time.

Our GE Multilin Supply Service

Our company specializes in supplying industrial automation spare parts, control equipment, protection components, PLC modules, DCS products, communication modules, I/O cards, and other industrial electronic equipment.

For customers searching for the GE 369-HI-R-0-0-0-0-E, we provide sourcing support based on the required configuration. We understand that industrial customers often need more than a simple product quotation. They may also require model verification, availability information, delivery estimates, and assistance identifying the correct replacement.

We work with customers for both individual replacement requirements and larger spare-parts procurement projects. Depending on product availability, we can support stock purchases as well as sourcing requirements.

Our goal is to make the purchasing process more efficient while offering competitive pricing and dependable supply support.

A Practical Choice for Motor Management

The GE 369-HI-R-0-0-0-0-E combines the established Multilin 369 motor management platform with a specific configuration that includes high-range control power, 12 built-in RTD inputs, and enhanced diagnostic capabilities. These characteristics make it a useful component for industrial motor protection and monitoring applications.

For maintenance departments and system integrators, the most important consideration is selecting the correct configuration rather than simply choosing a relay from the same product family. The complete part number should be checked carefully before procurement and installation.

If you are sourcing a GE 369-HI-R-0-0-0-0-E for equipment replacement, preventive maintenance, emergency repair, or spare inventory, our company can provide product sourcing and quotation support. With competitive pricing, professional service, and experience in industrial automation spare parts, we aim to help customers maintain reliable operation of their critical equipment.
