GE 531X305NTBAPG1

A Practical Interface for GE Drive and Excitation Systems

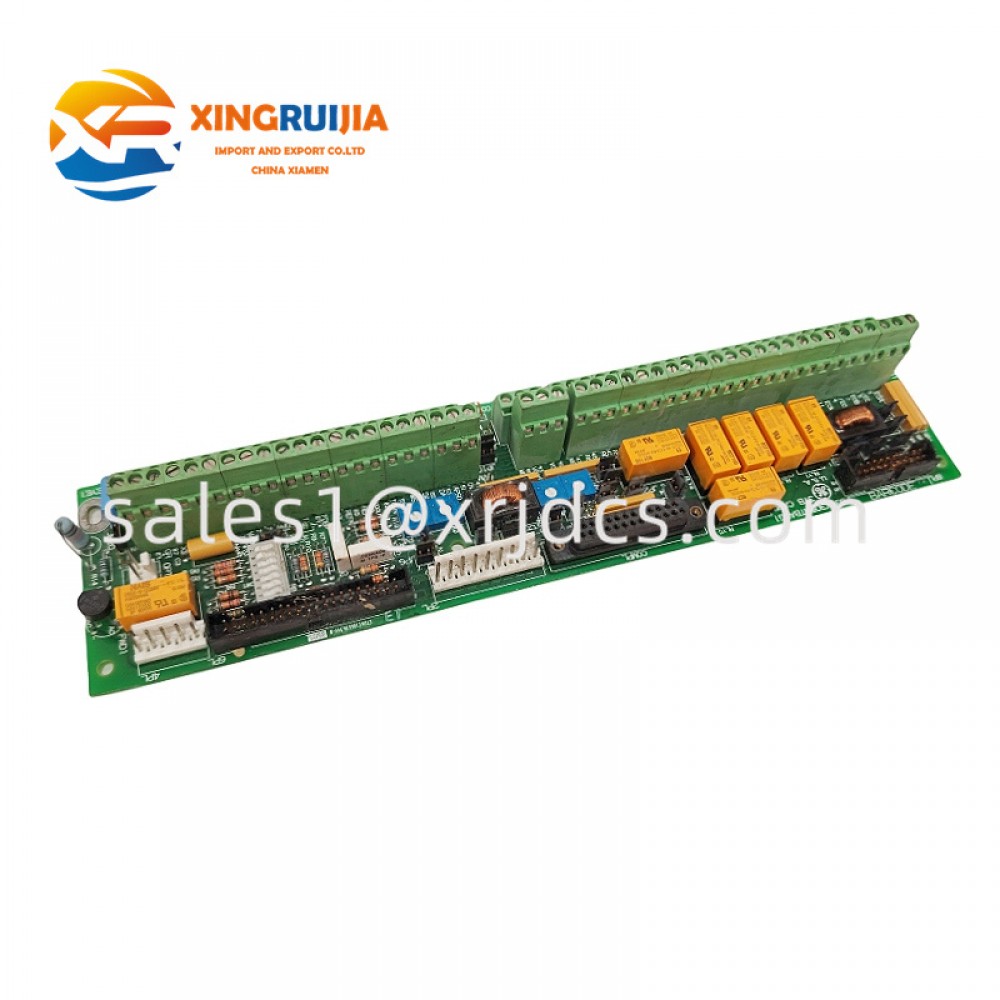

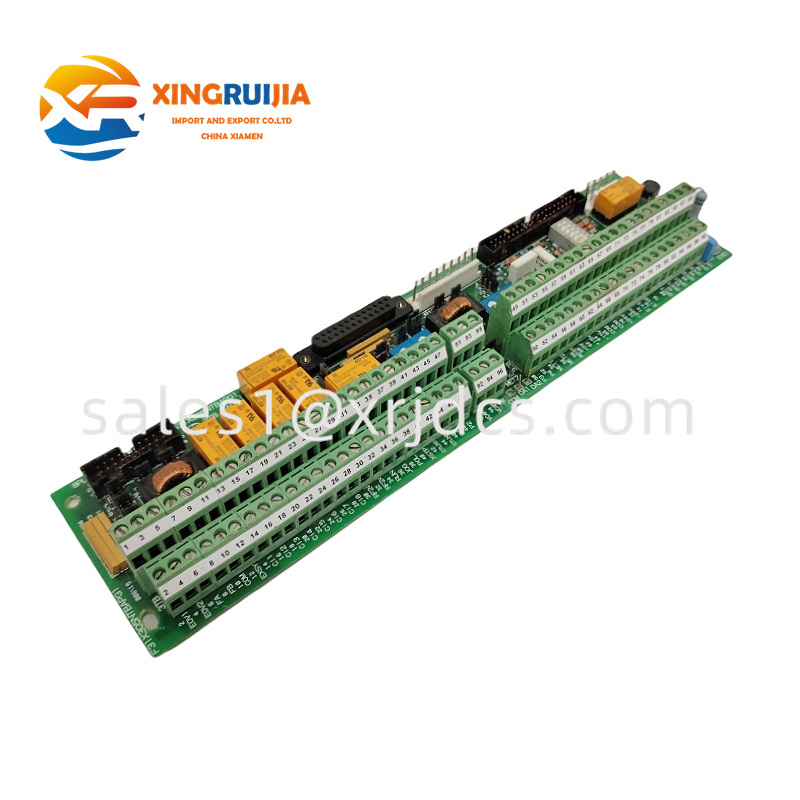

The GE 531X305NTBAPG1 is a GE 531X-series NTB/3TB terminal board used in drive and excitation-system environments. It is associated with the GE EX2000 excitation platform and provides an organized interface for external signal-level connections inside the cabinet.

Rather than functioning as the primary processor, the board serves as a connection and interface layer. It brings together field wiring, internal board connections, encoder feedback, auxiliary power, relay-related functions, and other signal interfaces required by the surrounding control equipment.

Functional Highlights

One of the important functions of the 531X305NTBAPG1 is its ability to accommodate an A-quad-B differential encoder interface with a marker channel. The encoder circuit is designed with optical isolation on the associated drive control circuitry, while jumpers provide configuration flexibility for compatible encoder supply requirements.

The board also provides several auxiliary power outputs. Reported capabilities include regulated +5 VDC and +15 VDC outputs at 300 mA each, an unregulated 24 VDC output rated at 500 mA, and a 120 VAC output rated at 0.5 A.

Additional product references identify four analog input potentiometers, six test points, and RS-232C/RS-422 serial connections as part of the board's configuration.

Board Identification

Part Number: 531X305NTBAPG1
Manufacturer: GE
Board Designation: NTB/3TB
Family: GE 531X / AC/DC2000
Associated Platform: EX2000 Excitation System
Application Type: Drive and excitation cabinet interface
Board Configuration: A
Alternate Reference: F31X305NTBAPG1 is listed by some suppliers as an alternate designation.

These identifiers are useful when sourcing a replacement because similar-looking 531X boards may have different electrical functions or terminal arrangements.

System Integration

The terminal board is intended to sit between the control system and external field-level connections. In an EX2000 cabinet, the NTB/3TB can receive connections from the drive control board and power supply board while also providing connection points for external equipment.

This architecture simplifies cabinet wiring and creates a centralized interface for several signal types. For maintenance teams working on older GE installations, retaining the correct terminal-board version is important for maintaining the original wiring arrangement and system compatibility.

Where It Is Used

The 531X305NTBAPG1 can be considered for applications involving:

• GE EX2000 excitation equipment
• Compatible 531X-series drive cabinets
• Industrial motor-control systems
• Encoder feedback interfaces
• Auxiliary control-power distribution
• Legacy GE industrial automation installations
• Maintenance and replacement of discontinued GE control hardware

The part is listed by multiple industrial automation suppliers as an AC/DC2000 terminal board, while some current distributors identify the product as discontinued, making accurate part-number verification particularly important when sourcing replacement equipment.

Replacement and Service Considerations

Before installing a replacement 531X305NTBAPG1, compare the board label and complete part number with the existing unit. Check terminal wiring, connectors, jumper positions, and associated control-board connections before energizing the equipment.

For long-term maintenance, keep the board clean and dry, protect it from electrostatic discharge, and inspect terminal connections periodically. If a system fault is suspected, technicians should first distinguish between a terminal-board problem and faults originating from the control board, power supply, encoder, or external field wiring.

The GE 531X305NTBAPG1 remains a useful replacement component for maintaining compatible legacy GE drive and excitation systems where original cabinet architecture must be preserved.
