GE 531X307LTBAKG

Product Overview

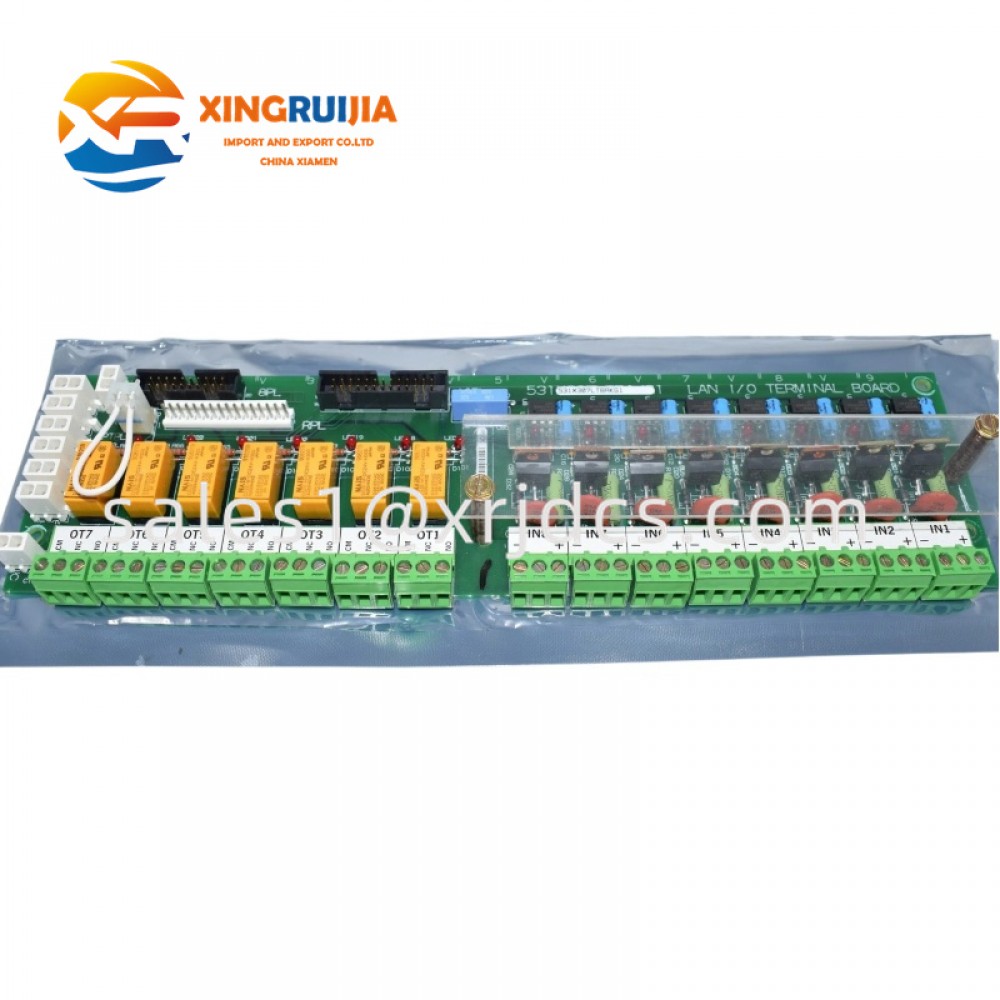

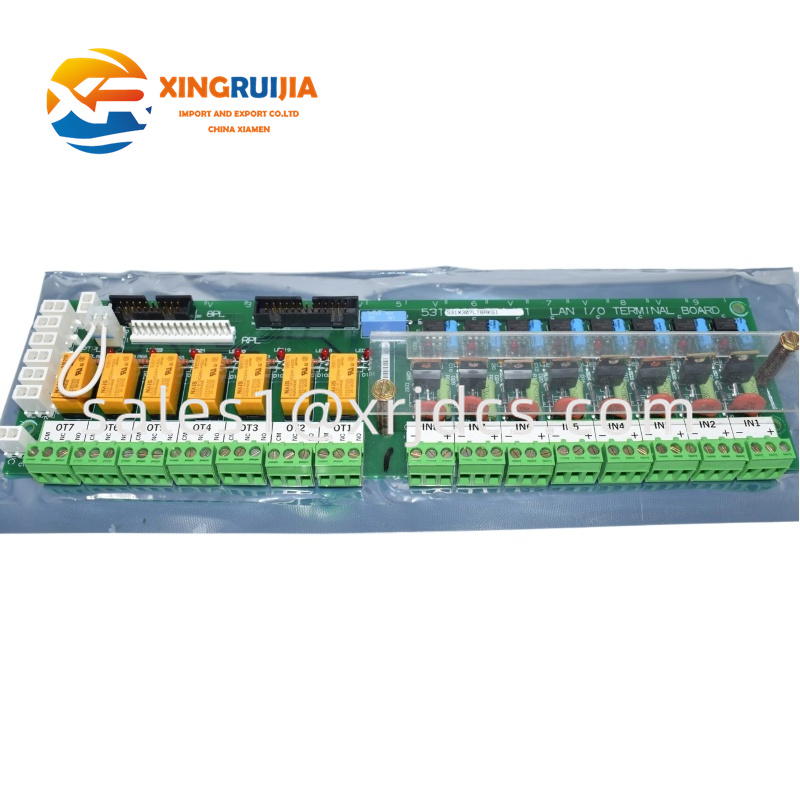

The GE 531X307LTBAKG1 is a LAN I/O Terminal Board designed for the GE 531X series of industrial drive systems. It provides an organized interface between the control system and external field devices such as contactors, indicators, pushbuttons, and interlocks.

As a terminal and interface board, the 531X307LTBAKG1 helps simplify field wiring while providing convenient signal routing and status monitoring. It is particularly useful when maintaining or replacing hardware in existing GE drive installations.

Technical Specifications

Parameter	Specification
Manufacturer	General Electric (GE)
Model	531X307LTBAKG1
Series	GE 531X
Product Type	LAN I/O Terminal Board
Input Channels	8
Input Range	24–230 V AC / 24–250 V DC
Control Inputs	8 × 24 V DC
Relay Outputs	7 × Form C
Main Connectors	8PL, 10PL, OPTPL, RPL
Approx. Weight	0.6 kg
Primary Function	I/O termination and field-device interface

The available product information identifies the board as an I/O/LAN terminal board for GE drive systems. Exact electrical ratings should be verified against the system documentation before installation.

Key Features

• Flexible field interfacing: Supports multiple external control signals and field devices.
• Eight input channels: Provides multiple input points for control and monitoring functions.
• Seven Form C relay outputs: Suitable for interfacing with low-voltage control loads.
• Organized terminal connections: Helps reduce wiring complexity inside industrial control cabinets.
• Status indication: Available product information describes onboard LED indicators for input and relay status, supporting troubleshooting and commissioning.
• Legacy-system compatibility: Suitable for maintenance and replacement applications involving GE 531X drive hardware.

Construction and Applications

The board is built as a dedicated industrial circuit-board assembly with terminal connectors, relay circuitry, input interfaces, and status indicators. Its design allows field wiring to be brought into a structured interface before signals are passed to the associated drive control hardware.

Typical applications include industrial motor drives, excitation/control cabinets, automated production equipment, and legacy GE drive installations. It can be used where contactors, interlocks, indicator circuits, and other external control devices need to interface with the drive system.

Installation and Maintenance

Before installation, disconnect system power and confirm that the replacement board matches the existing part number and hardware configuration. Carefully label field wiring before removing the original board, then verify connector positions and terminal assignments during installation.

For maintenance, inspect connectors, terminals, relays, and the PCB for loose connections, contamination, overheating, or visible damage. LED status indicators can also provide useful information during troubleshooting. Because the 531X307LTBAKG1 is intended for legacy industrial equipment, maintaining correct wiring and configuration is particularly important when replacing an existing board.

Replacement Value

The GE 531X307LTBAKG1 is a practical replacement component for maintaining compatible GE 531X drive systems. Its combination of multiple input channels, relay outputs, structured field connections, and diagnostic indicators makes it useful for keeping existing industrial control equipment operational without redesigning the complete control cabinet.
