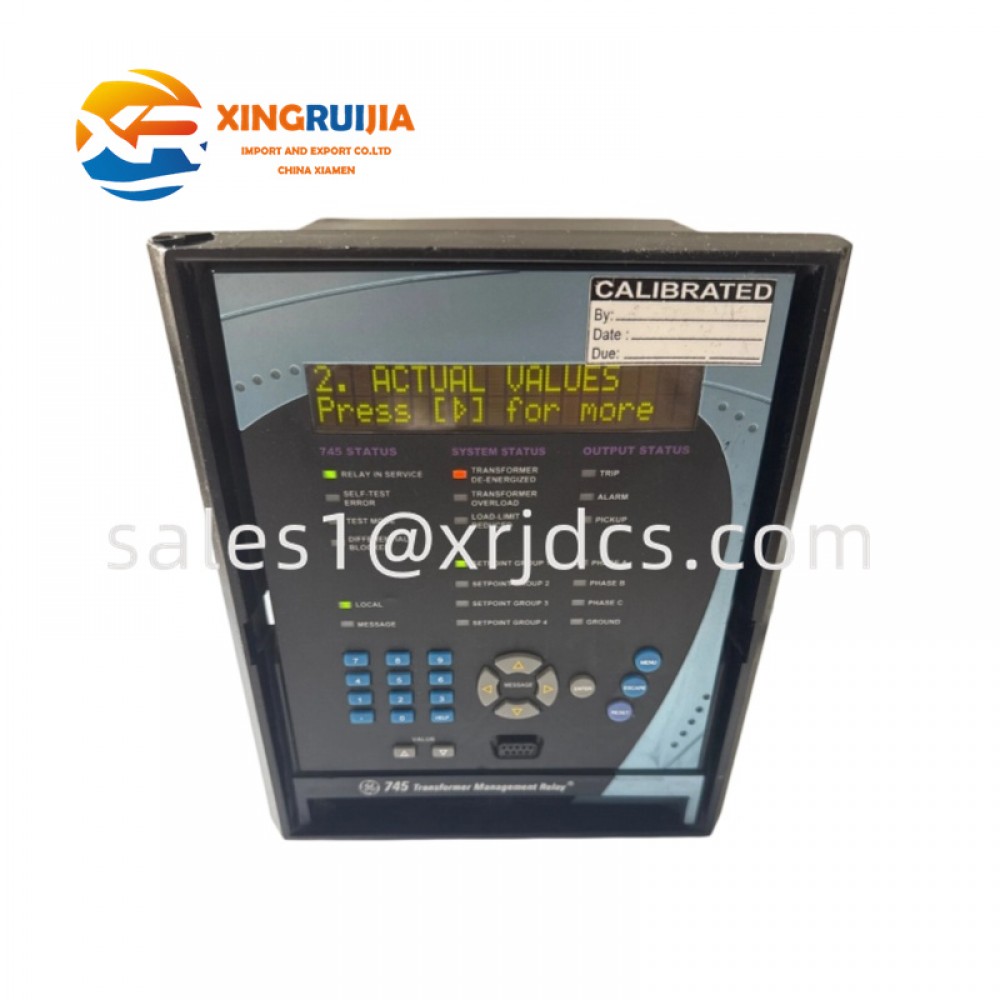

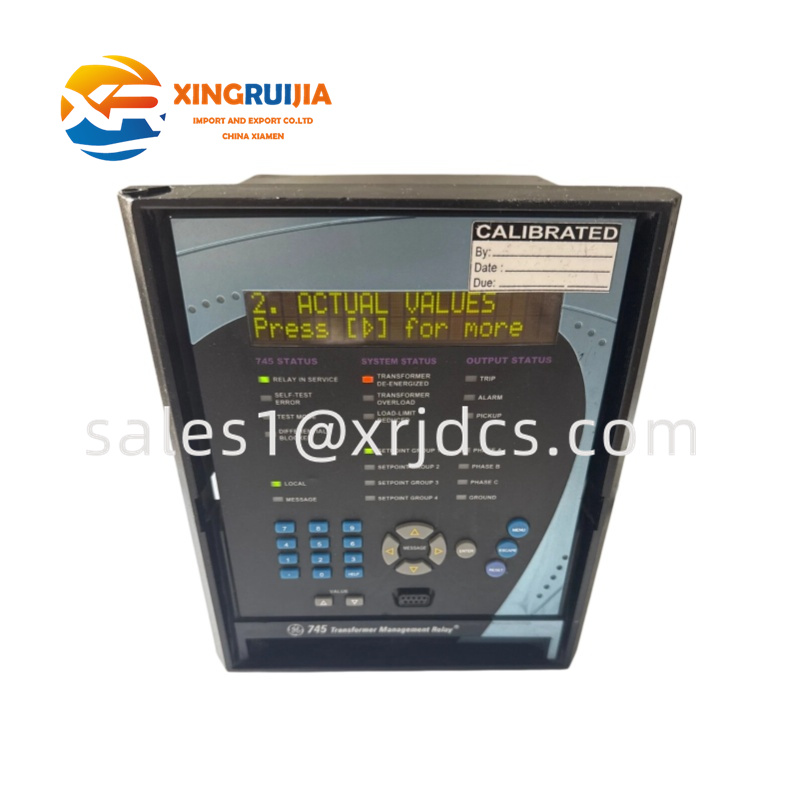

GE 745-W2-P5-G5-HI-A-R-E-H

Product Overview

The GE 745-W2-P5-G5-HI-A-R-E-H is a Transformer Management and Protection Relay from the GE Multilin 745 Transformer Protection System family. It is designed to provide comprehensive protection, monitoring, and control functions for medium and large power transformers, autotransformers, and reactors. The relay integrates transformer differential protection, overcurrent protection, monitoring functions, and advanced diagnostic features into a single intelligent protection device.

The GE Multilin 745 series is widely used in electrical substations, industrial power distribution systems, and utility networks where transformer reliability and operational continuity are critical. The W2-P5-G5-HI-A-R-E-H configuration represents a two-winding transformer protection model with enhanced display, high control power capability, analog input/output options, restricted ground fault protection, and additional communication and monitoring functions.

Designed with a microprocessor-based architecture, the relay continuously analyzes transformer operating conditions and provides fast response during abnormal events such as internal faults, winding failures, overload conditions, and grounding problems. It helps reduce equipment damage, improve system availability, and simplify maintenance operations.

---

Technical Specifications

Parameter	Description
Manufacturer	GE Multilin
Model	745-W2-P5-G5-HI-A-R-E-H
Product Family	GE Multilin 745 Transformer Protection System
Product Type	Transformer Management Relay
Application	Two-winding transformer protection
Transformer Protection	Differential and overcurrent protection
Phase Current Input	5 A
Ground Current Input	5 A
Voltage Input Range	60–120 V AC phase-neutral
Control Power Supply	90–300 VDC / 70–265 VAC
Frequency	50/60 Hz
Display	40-character enhanced LCD
Communication Software	EnerVista 745
Communication Interface	RS485 / Modbus (depending on configuration)
Analog Inputs/Outputs	Supported
Restricted Ground Fault	Supported
Installation Type	Panel mounting
Operating Temperature	-40°C to +60°C
Weight	Approx. 4.8 kg
Protection Standard	IEC/ANSI industrial protection requirements

---

Functional Description

The GE 745-W2-P5-G5-HI-A-R-E-H operates as a complete transformer protection platform, continuously collecting electrical measurements from current transformers (CTs), voltage transformers (PTs), and other monitoring devices.

The relay processes these signals through high-speed digital algorithms to detect abnormal operating conditions and initiate protective actions when necessary.

Its main protection functions include:

• Transformer differential protection
• Overcurrent protection
• Restricted ground fault protection
• Overload protection
• Thermal monitoring
• Overexcitation protection
• Frequency protection
• Fault recording
• Event logging

The relay compares current levels between transformer windings to identify internal faults. When a significant difference is detected, the protection logic can quickly issue a trip command to disconnect the transformer from the power system.

This fast detection capability helps minimize transformer damage and improve electrical system safety.

---

Product Configuration Features

Two-Winding Transformer Protection

The 745-W2-P5-G5-HI-A-R-E-H is configured for two-winding transformer applications.

It supports protection of:

• Distribution transformers
• Power transformers
• Industrial transformers
• Auxiliary transformers

The two-winding configuration allows the relay to compare primary and secondary current measurements to detect internal transformer faults.

---

High Control Power Design

The HI designation indicates the high control power version of the 745 relay.

The unit supports a wide control power range:

• 90 to 300 VDC
• 70 to 265 VAC

This allows installation in substations and industrial environments where different auxiliary power systems are used.

---

Advanced Differential Protection

Transformer differential protection is one of the most important functions of the GE 745 relay.

The relay provides:

• High-speed fault detection
• Harmonic restraint
• Transformer inrush current discrimination
• Accurate current comparison

These functions prevent unnecessary transformer trips while maintaining fast response during genuine internal faults.

Analog Measurement Interface

The relay includes analog input circuits for receiving transformer electrical measurements.

These circuits process:

• Phase current signals
• Ground current signals
• Voltage measurements
• External analog signals

High-resolution measurement processing improves protection accuracy.

---

Digital Input and Output Section

The digital I/O section allows connection with external substation equipment.

Typical connections include:

• Circuit breaker status signals
• Trip circuits
• Alarm contacts
• Control commands

The relay can exchange information with external protection and automation systems.

---

Communication Module

The communication interface allows integration into modern power automation systems.

Supported communication functions may include:

• Remote monitoring
• Relay configuration
• Event retrieval
• System diagnostics

The GE EnerVista software platform provides configuration and maintenance tools for the relay.

---

Main Advantages

Comprehensive Transformer Protection

The GE 745-W2-P5-G5-HI-A-R-E-H combines multiple protection functions in one device, reducing the need for separate protection relays.

This integrated design helps:

• Simplify system architecture
• Reduce installation complexity
• Improve protection coordination

---

High-Speed Fault Response

Fast digital processing enables rapid identification of transformer faults.

This helps protect:

• Transformer windings
• Power system equipment
• Industrial production systems

---

Advanced Monitoring Capability

The relay continuously records transformer operating information.

Monitoring functions include:

• Load condition analysis
• Fault event recording
• Alarm history
• System diagnostics

These features support preventive maintenance strategies.

---

Flexible Industrial Integration

The relay can be integrated into different electrical automation environments, including:

• Substation automation systems
• Industrial power networks
• Utility protection systems

---

Application Areas

Electrical Substations

The GE Multilin 745 relay is widely installed in substations for transformer protection and monitoring.

Applications include:

• Distribution substations
• Transmission substations
• Utility power systems

---

Configuration and Commissioning

The relay configuration is completed using GE EnerVista 745 software.

Typical commissioning tasks include:

• Setting transformer parameters
• Configuring protection thresholds
• Testing trip logic
• Checking communication functions
• Verifying alarm settings

---

Maintenance Recommendations

Regular maintenance should include:

• Checking relay event records
• Reviewing alarm history
• Testing protection functions
• Inspecting wiring terminals
• Verifying communication performance

For critical transformer installations, maintaining a spare relay is recommended to reduce downtime during unexpected failures.

---

Compatibility and System Integration

The GE 745-W2-P5-G5-HI-A-R-E-H belongs to the GE Multilin 745 Transformer Protection System family.

It is compatible with transformer protection applications requiring:

• Two-winding transformer monitoring
• Differential protection
• Ground fault protection
• Substation automation integration

The relay can operate as an independent protection device or as part of a larger automated electrical control system.

---

Product Summary

The GE 745-W2-P5-G5-HI-A-R-E-H Transformer Management Relay is a high-performance protection solution designed for reliable transformer operation and advanced electrical system monitoring.

With two-winding transformer protection, differential protection, restricted ground fault functions, enhanced display capability, analog interfaces, and flexible communication features, the relay provides comprehensive protection for critical power equipment.
