GE Fanuc 8102-HO-IP

Product Overview

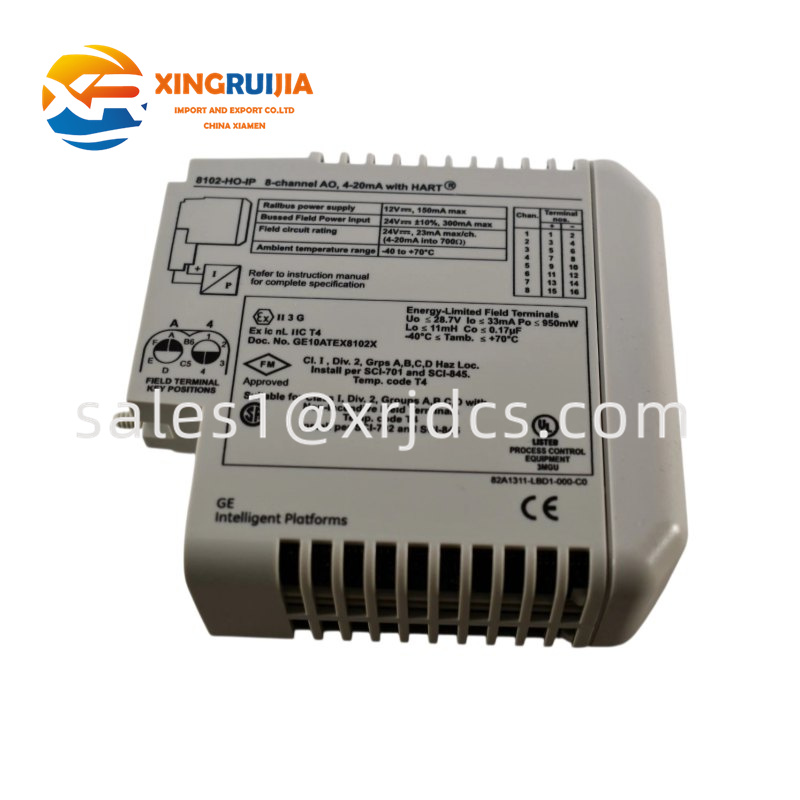

The GE Fanuc 8102-HO-IP is an eight-channel analog output module designed for the PAC8000 process I/O platform. It provides 4–20 mA analog outputs with HART communication, making it suitable for industrial process control applications that require both analog control signals and intelligent field-device communication.

The module is commonly used to send control signals to devices such as valve positioners, actuators, and remote indicators. Its HART pass-through capability also allows the control system to exchange additional information with compatible HART field instruments.

Key Specifications

Item	Specification
Model	8102-HO-IP
Product Type	Analog Output Module
Platform	PAC8000
Number of Channels	8
Output Signal	4–20 mA
HART	Supported
Resolution	12 bits
Accuracy	±0.25% of span
Full Signal Range	1–23 mA
Module Width	42 mm
Approx. Weight	200 g
Field Power	24 VDC ±10%
Railbus Current	100 mA typical / 150 mA maximum

The published PAC8000 documentation specifies eight single-ended 4–20 mA output channels, 12-bit resolution, and HART pass-through functionality.

Main Features

• Eight independent analog output channels
• Standard 4–20 mA signal range
• Integrated HART communication
• 12-bit output resolution
• Open-loop detection on each channel
• User-configurable channel status
• Supports HART variable and status reporting
• Designed for general-purpose and Zone 2/Class 1 Division 2 applications
• Compact 42 mm module design

The module can communicate with one HART instrument on each channel and can acquire HART information such as dynamic process variables and device status.

Construction and Interface

The 8102-HO-IP forms part of the PAC8000 modular I/O architecture. Its internal electronics include a microprocessor, multiplexing and digital-to-analog conversion circuitry for generating the required 4–20 mA outputs.

Field connections are made through compatible PAC8000 field terminals. The module also provides channel status indication and diagnostic functions, helping operators identify abnormal output or wiring conditions.

Industrial Applications

The GE Fanuc 8102-HO-IP can be applied in:

• Process control systems
• Chemical processing
• Oil and gas facilities
• Power generation
• Water and wastewater treatment
• Industrial valve control
• Flow and pressure control
• HART-enabled instrumentation systems

Installation and Maintenance

Before installation, verify the PAC8000 system configuration, field terminal type, power supply, and wiring requirements. The module requires 24 VDC ±10% bussed field power, with a maximum field power consumption of 300 mA.

During maintenance, inspect terminal connections, field wiring, module indicators, and HART communication status. If an output channel reports an open-loop condition, check the connected instrument and associated wiring before replacing the module.

————————————————————————————————————————————————————————————————————————
