GE 8709-CA-08 PAC8000

Product Overview

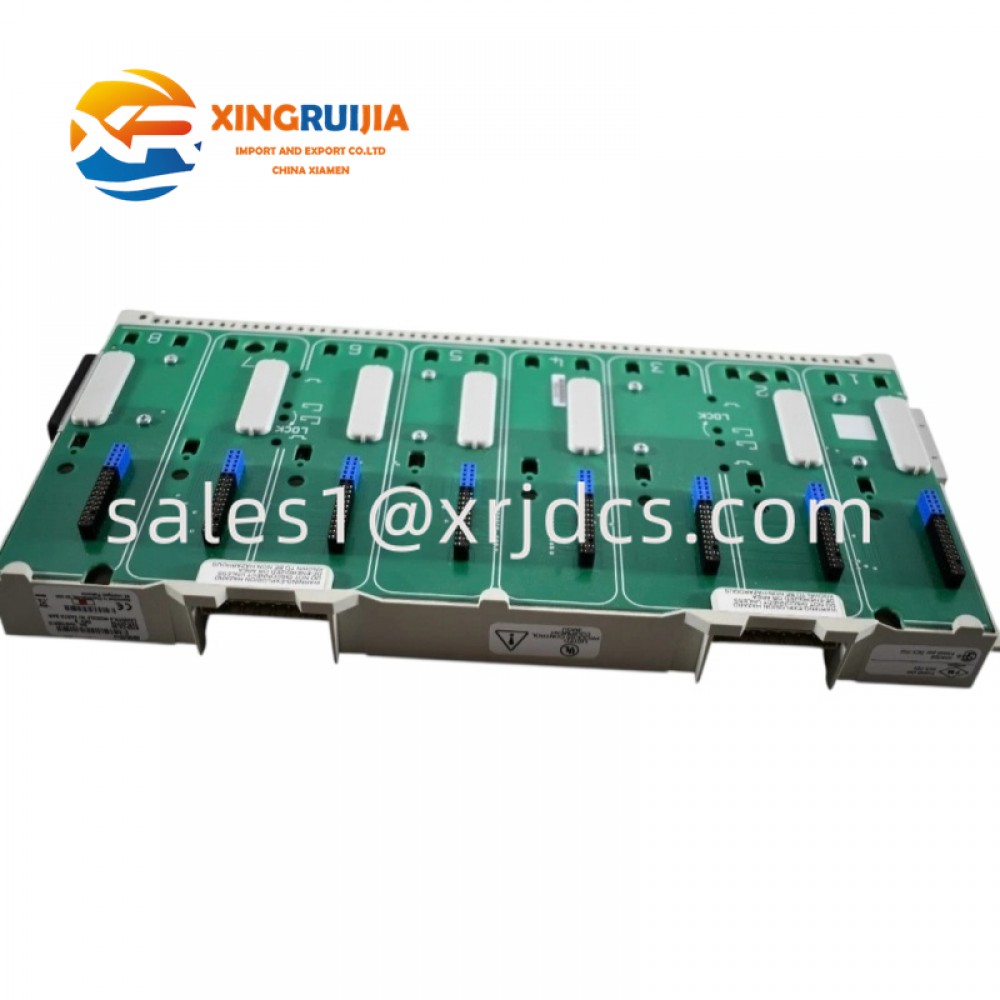

The GE 8709-CA-08 is an 8-module I/O carrier designed for the PAC8000 Remote I/O system. It provides the physical and electrical backbone for compatible PAC8000 I/O modules, connecting them through the internal Railbus while also distributing system and field power. The carrier includes an isolated earth bar for cable screens and shields.

The 8709-CA-08 is therefore not an individual input or output module. Instead, it provides the mounting and interconnection platform required to build a modular PAC8000 I/O station.

Technical Specifications

Parameter	Specification
Manufacturer	GE / MTL
Model	8709-CA-08
Product Family	PAC8000
Product Type	I/O Carrier
Module Capacity	Up to 8 I/O modules
Addressing	Extended, 1–64
Railbus	Female input / male output connectors
Field Power	Two 8-pin connectors
Earth Bar	Isolated
Mounting	DIN rail or flat panel
Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	5–95% RH, non-condensing
Dimensions	Approx. 342 × 170 × 22 mm

The PAC8000 product documentation identifies the 8709-CA-08 specifically as an 8-module I/O carrier with an earth bar.

Key Features

The carrier offers several practical functions for PAC8000 installations:

• Supports up to eight compatible I/O modules.
• Provides internal Railbus communication.
• Distributes system power to installed modules.
• Provides bussed field-power connections.
• Includes an isolated earthing bar.
• Supports extended addressing up to 64 module addresses.
• Can be mounted on DIN rail or a flat panel.
• Supports modular PAC8000 control-system construction.

Because the carrier handles both mechanical mounting and electrical interconnection, it helps create a clean and organized I/O architecture.

Construction and System Integration

The 8709-CA-08 forms part of the physical infrastructure of a PAC8000 station. Compatible field terminals can be attached to the I/O modules, while the carrier provides the Railbus connections needed to carry address, data, and power lines. GE documentation also lists the carrier for PAC8000 PROFINET Scanner configurations.

The isolated earth bar provides dedicated connection points for cable screens and shields. Consequently, the carrier can contribute to better cabinet organization and grounding practices in industrial installations.

Applications

The GE 8709-CA-08 is suitable for industrial automation and process-control systems using PAC8000 Remote I/O. Typical applications include:

• Process automation
• Factory control systems
• Distributed I/O stations
• Power and utility systems
• Oil and gas facilities
• Chemical processing
• Industrial monitoring
• PAC8000 PROFINET installations

Its eight-slot arrangement makes it useful when several I/O functions need to be installed within a compact modular station.

Installation and Maintenance

During installation, verify the carrier type, compatible I/O modules, field terminals, Railbus connections, and power requirements. The carrier can be installed on suitable DIN rail or a flat panel.

For maintenance, inspect module connections, Railbus connectors, field-power terminals, mounting hardware, and the earth bar. Also check for contamination, corrosion, loose connections, or physical damage.

Our company supplies the GE 8709-CA-08 PAC8000 I/O Carrier for industrial automation replacement, expansion, and maintenance projects. Exact part-number and system compatibility should be confirmed before ordering.

————————————————————————————————————————————————————————————————————————
