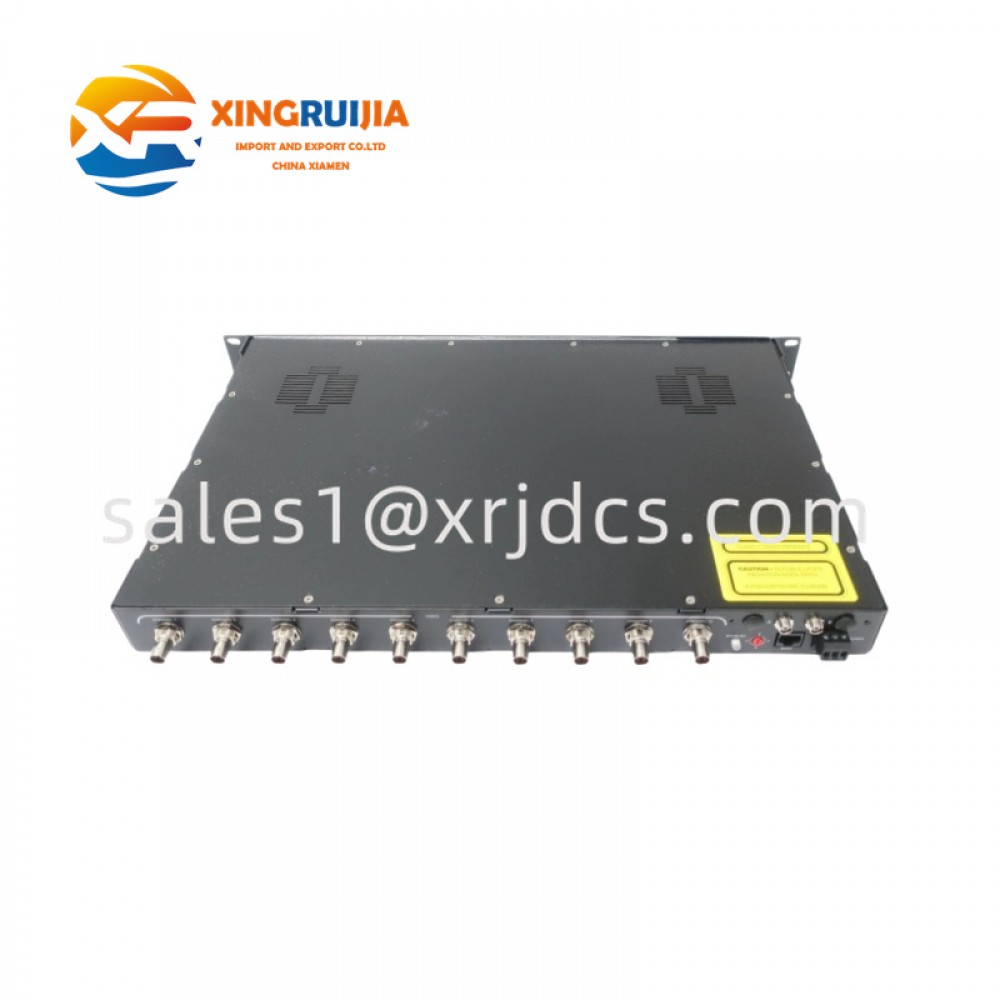

GE 9910VMPD2-T-R

The GE 9910VMPD2-T-R is an industrial-grade fiber optic video multiplexer transmitter engineered for high-performance video and data transmission applications. Designed for demanding security monitoring and industrial communication systems, this module supports simultaneous transmission of multiple real-time video channels together with bidirectional data communication over single-mode optical fiber networks. It is widely used in surveillance infrastructure, transportation systems, utility facilities, and critical industrial environments requiring stable long-distance signal transmission.

---

Key Advantages

• Supports 10-channel real-time video transmission
• Two-way multiprotocol data communication capability
• Designed for single-mode fiber optic systems
• Rack-mount industrial installation design
• High video clarity with low signal distortion
• Compatible with NTSC and PAL video standards
• Built-in SMARTS™ diagnostics for monitoring system status
• Reliable long-distance optical transmission performance
• Compact structure for control cabinet integration
• Stable operation in industrial and security environments

---

System Overview

The 9910VMPD2-T-R transmitter module utilizes digital multiplexing technology to combine multiple analog video signals and data channels into an optical transmission stream. The device is optimized for long-range communication through one or two single-mode optical fibers while maintaining excellent image quality and signal stability.

This module is commonly paired with compatible receiver units within fiber optic surveillance systems. In large-scale industrial facilities, the equipment helps reduce copper cabling complexity while improving electromagnetic interference resistance and transmission distance capabilities.

---

Technical Data

Manufacturer: General Electric (GE Security / Interlogix)
Model: 9910VMPD2-T-R
Product Type: Fiber Optic Video Multiplexer Transmitter
Transmission Capacity: 10 Video Channels
Fiber Type: Single-Mode Fiber
Transmission Direction: One-Way Video + Two-Way Data
Mounting Style: Rack Mount
Video Standards: NTSC / PAL
Video Bandwidth: 6.5 MHz per channel
Video Resolution: Greater than 520 TV Lines
Video Signal-to-Noise Ratio: >55 dB
Optical Budget: 10–20 dB
Diagnostic Function: SMARTS™ Built-In Diagnostics
Data Support: Multiprotocol Data Formats
Data Configuration: Field Selectable
Optical Transmission: One or Two Fiber Configuration Supported

---

Construction and Internal Design

The GE 9910VMPD2-T-R is manufactured using industrial-grade electronic architecture designed for continuous operation. The module includes advanced optical conversion circuits, signal conditioning components, and digital multiplexing hardware that ensure reliable signal integrity across extended transmission distances. Its rack-mounted enclosure simplifies centralized installation inside communication cabinets or control rooms.

The internal system is optimized to reduce signal degradation and electromagnetic interference, making it suitable for electrically noisy industrial environments.

---

Application Areas

The module is suitable for a wide range of professional transmission systems, including:

• Industrial surveillance systems
• Transportation monitoring networks
• Power generation facilities
• Oil and gas installations
• Traffic control centers
• Utility infrastructure
• Security command centers
• Factory automation monitoring systems
• Long-distance fiber optic communication projects

Its ability to transmit multiple video channels over fiber makes it ideal for centralized monitoring applications where signal quality and transmission reliability are critical.

---

Installation Notes

For proper deployment, the transmitter should be installed in a clean and ventilated rack environment. Recommended installation practices include:

• Verify optical fiber compatibility before connection
• Avoid excessive bending of optical cables
• Maintain proper grounding of the rack system
• Confirm NTSC or PAL configuration settings
• Use qualified fiber connectors and clean optical interfaces
• Inspect power stability before system startup

Correct installation helps ensure maximum transmission efficiency and long-term operational reliability.

---

Maintenance Recommendations

Routine maintenance can improve overall system performance and service life. Suggested maintenance procedures include:

• Periodic cleaning of fiber optic connectors
• Inspection of rack ventilation and cooling conditions
• Monitoring optical signal levels
• Checking data communication stability
• Verifying diagnostic indicators regularly
• Replacing damaged optical cables immediately

The built-in diagnostic system assists maintenance personnel in identifying transmission abnormalities and reducing system downtime.

---

Performance Characteristics

Compared with conventional copper-based transmission systems, the GE 9910VMPD2-T-R provides several operational benefits:

• Extended transmission distance
• Reduced electromagnetic interference
• Improved signal stability
• High-quality video performance
• Efficient cable management
• Reliable real-time transmission capability
• Strong industrial adaptability
• Simplified large-scale surveillance integration

These characteristics make the unit highly suitable for mission-critical communication systems.

---

Conclusion

The GE 9910VMPD2-T-R Fiber Optic Video Multiplexer Transmitter is a professional industrial communication module designed for reliable multi-channel video and data transmission over single-mode optical fiber networks. With advanced multiplexing technology, diagnostic capabilities, and industrial-grade construction, the module delivers dependable performance for modern surveillance, automation, and infrastructure monitoring applications.
