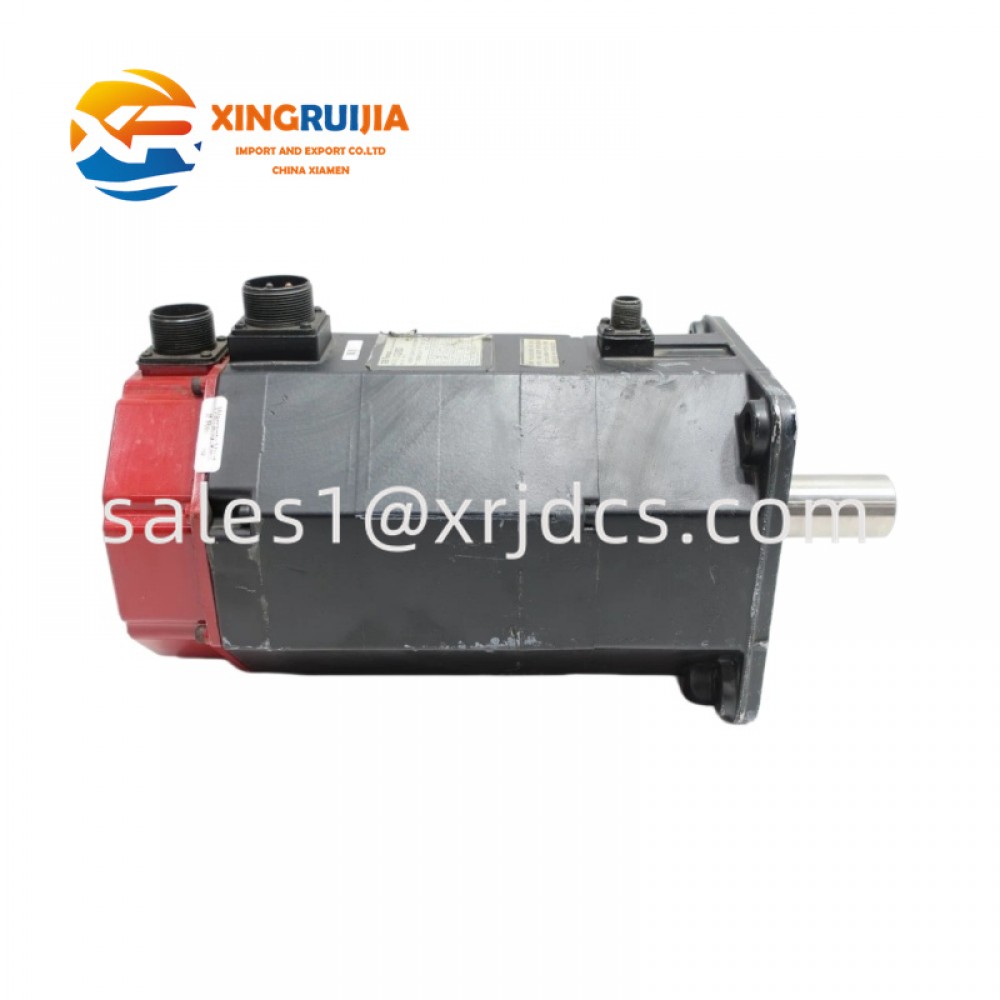

GE A06B-0143-B177

Overview

The FANUC A06B-0143-B177 is a high-performance AC servo motor from FANUC’s Alpha series, widely used in CNC machine tools and industrial automation systems. It is designed to deliver precise motion control, stable torque output, and reliable long-term operation in demanding machining environments.

This model belongs to the A12/3000 motor class, typically equipped with a built-in brake and high-resolution encoder feedback system, making it suitable for applications requiring accurate positioning and fast response.

It is commonly found in milling machines, machining centers, robotic axes, and automated production systems where precision and repeatability are critical.

---

Key Technical Specifications

Parameter	Specification
Model	A06B-0143-B177
Manufacturer	FANUC
Series	Alpha AC Servo Motor
Motor Type	AC Servo Motor
Rated Output	Approx. 2.8 kW
Rated Torque	~12 Nm (typical for A12 class)
Rated Speed	Up to 3000 RPM
Input Voltage	~155V AC (3-phase)
Encoder	High-resolution incremental encoder (i-series compatible)
Brake	Built-in electromagnetic brake
Shaft Type	Straight / keyed shaft (variant dependent)
Protection	Industrial sealed design (approx. IP65–IP67 depending on version)
Application Class	CNC / Industrial machine tools
Weight	~20–25 kg (approx. depending on configuration)

---

Key Features

• High-precision servo control for CNC machining applications
• Integrated brake for safe axis holding during power-off conditions
• Robust encoder feedback for accurate positioning and motion control
• Designed for high-speed dynamic response and torque stability
• Strong resistance to industrial vibration and continuous duty cycles
• Long service life with low maintenance requirements
• Fully compatible with FANUC Alpha drive systems

---

Structure & Composition

The A06B-0143-B177 motor is built using a rugged industrial servo architecture:

• High-efficiency permanent magnet rotor system
• Stator windings optimized for torque density and thermal stability
• Integrated brake assembly (electromagnetic holding mechanism)
• Precision encoder unit for real-time position feedback
• Reinforced motor housing for vibration and thermal resistance
• Heavy-duty shaft assembly designed for CNC coupling systems

This integrated structure ensures stable performance even under continuous machining loads and rapid acceleration/deceleration cycles.

---

Applications

The FANUC A06B-0143-B177 is widely used in:

• CNC machining centers
• Milling and turning machines
• Industrial robotics
• Automated production lines
• Metal cutting and forming equipment
• Precision positioning systems
• Factory automation machinery

It is especially suitable for axes requiring both holding torque and dynamic motion control.

---

Installation & Maintenance

Installation Guidelines

• Must be paired with compatible FANUC Alpha servo amplifiers
• Ensure correct alignment with machine axis coupling
• Proper grounding is required to prevent encoder noise interference
• Follow FANUC wiring and feedback connection standards strictly

Maintenance Recommendations

• Regular inspection of encoder cables and connectors
• Monitor brake performance for holding stability
• Keep motor housing clean and free from coolant/oil contamination
• Ensure proper ventilation to avoid overheating during continuous operation

---

Operational Notes

• Designed exclusively for FANUC CNC control ecosystems
• Not interchangeable with non-compatible servo drives
• Brake-equipped versions require proper control sequencing
• Encoder feedback must match drive system configuration

---

Summary

The FANUC A06B-0143-B177 AC servo motor is a reliable and widely used industrial motion component designed for high-precision CNC and automation applications. With strong torque performance, integrated braking, and accurate feedback control, it remains a key part of FANUC’s Alpha servo ecosystem and is trusted in machine tools worldwide for stable and repeatable performance.
