GE C70TGDHLHFXXH81MXXP6TU6GWXX

Overview

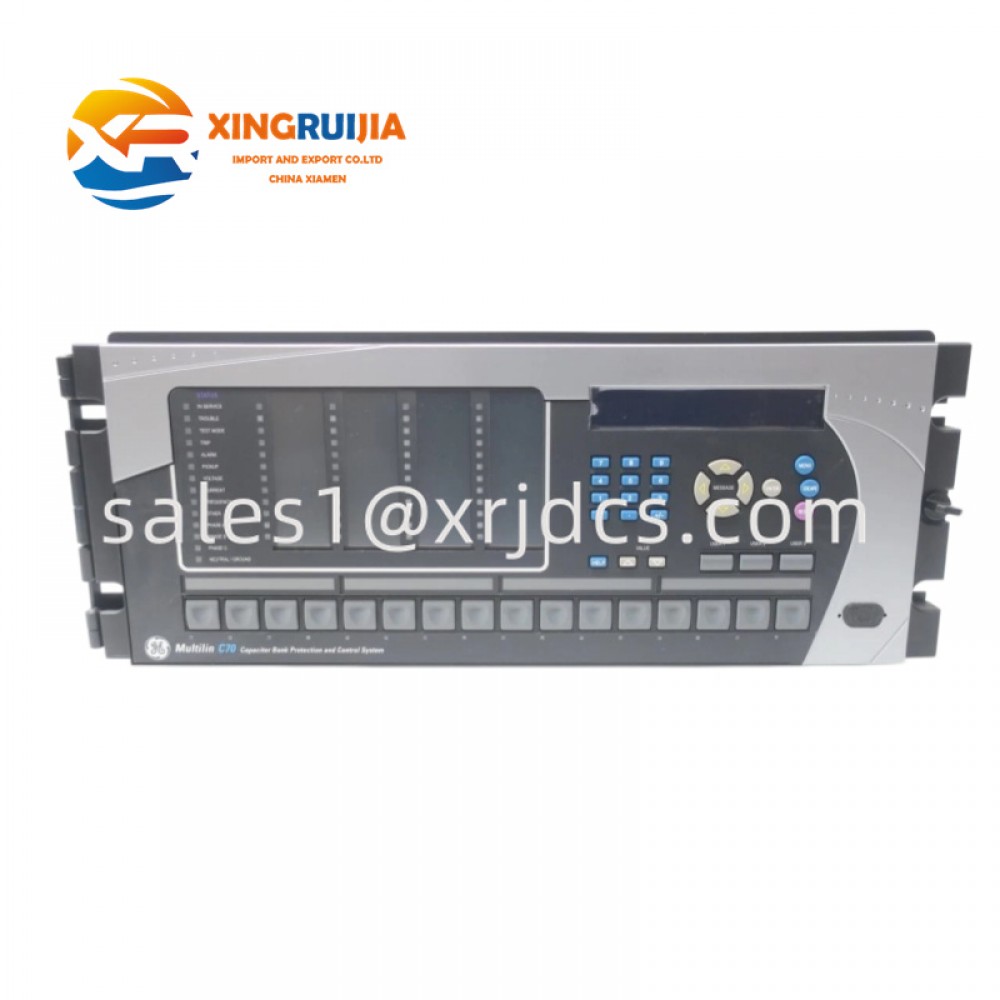

The GE C70TGDHLHFXXH81MXXP6TU6GWXX is a configuration variant of the GE Multilin C70 Capacitor Bank Protection Relay, designed for advanced protection, control, and monitoring of medium and high-voltage capacitor bank systems.

This relay belongs to GE’s Multilin C70 platform, which is widely used in electrical substations and industrial power distribution networks to ensure stable reactive power compensation and capacitor switching protection.

It is engineered to detect electrical faults, prevent capacitor bank damage, and maintain grid stability in utility and industrial power systems.

---

Product Classification & Function

This model is generally used as a:

• Capacitor bank protection relay
• Power system monitoring and control device
• Substation automation protection module
• Reactive power compensation controller
• Medium/high-voltage electrical protection unit

Its main role is to protect capacitor banks from electrical faults such as overcurrent, unbalance, and overvoltage conditions, ensuring safe operation and extended equipment life.

---

Technical Specifications

Item	Specification
Model	C70TGDHLHFXXH81MXXP6TU6GWXX
Series	GE Multilin C70
Manufacturer	General Electric (GE)
Application	Capacitor bank protection & control
System Type	Digital protection relay
Voltage Inputs	Configurable VT inputs (system dependent)
Current Inputs	CT-based measurement inputs
Protection Functions	Overcurrent, unbalance, overvoltage, harmonics protection
Control Functions	Capacitor switching control, breaker interface
Communication Protocols	IEC 61850, Modbus, DNP3 (typical C70 platform support)
Mounting Type	Panel / rack-mounted relay
Display	Front HMI LCD interface (C70 series standard)
Power Supply	24–250 VDC / 110–240 VAC (variant dependent)
Operating Temperature	-40°C to +85°C (industrial grade range)

---

Key Features

The GE Multilin C70 platform provides advanced protection and control capabilities, including:

• Dedicated capacitor bank protection algorithms
• Fast fault detection and tripping response
• High-precision current and voltage monitoring
• Harmonic and unbalance detection for capacitor health
• Integrated breaker and switching control logic
• Flexible communication for SCADA integration
• Event recording and fault logging (SOE – Sequence of Events)
• Support for substation automation systems

---

Structure and System Composition

The relay is built as a microprocessor-based protection system consisting of several functional modules:

• Analog Input Module: Processes CT and VT signals from power system
• Digital Processing Unit (CPU): Executes protection algorithms in real time
• Protection Logic Engine: Applies capacitor bank safety rules and thresholds
• Output Relay Module: Sends trip/close signals to circuit breakers
• Communication Interface: Enables SCADA and substation integration
• Front Panel HMI: Provides local configuration and monitoring
• Event Recording Memory: Stores fault history and system logs

This modular architecture ensures both fast response time and high system reliability in electrical substations.

---

Applications

The GE C70 capacitor bank protection relay is widely used in:

• Electrical substations (utility grid systems)
• Industrial power distribution networks
• Power factor correction systems
• Renewable energy integration facilities
• Mining and heavy industry power systems
• Oil & gas electrical infrastructure
• Large manufacturing plants with reactive power compensation

It is especially critical in systems requiring power factor correction and voltage stability management.

---

Installation & Maintenance

Installation Guidelines

• Must be installed in substation control panels or relay racks
• Requires correct CT/VT wiring configuration
• Proper grounding and shielding is essential for measurement accuracy
• Communication setup must match SCADA system protocol
• Configuration should follow GE Multilin C70 engineering software

Maintenance Recommendations

• Periodic verification of relay settings and protection logic
• Inspection of terminal connections for looseness or corrosion
• Firmware and configuration backup for system recovery
• Routine testing of trip outputs and breaker interface
• Review of event logs for abnormal capacitor behavior

---

Importance in Power Systems

This relay plays a critical role in maintaining electrical grid stability:

• Prevents capacitor bank failures due to electrical stress
• Improves power factor and system efficiency
• Reduces reactive power penalties in industrial plants
• Enhances overall grid reliability and voltage regulation
• Provides fast isolation of faulty capacitor banks

Because capacitor banks are often high-energy systems, proper protection is essential for both equipment safety and operational stability.

---

Summary

The GE C70TGDHLHFXXH81MXXP6TU6GWXX is a highly configurable capacitor bank protection relay based on GE’s Multilin C70 platform. It provides advanced monitoring, control, and protection functions for medium and high-voltage capacitor systems in industrial and utility environments.

————————————————————————————————————————————————————————————————————————
