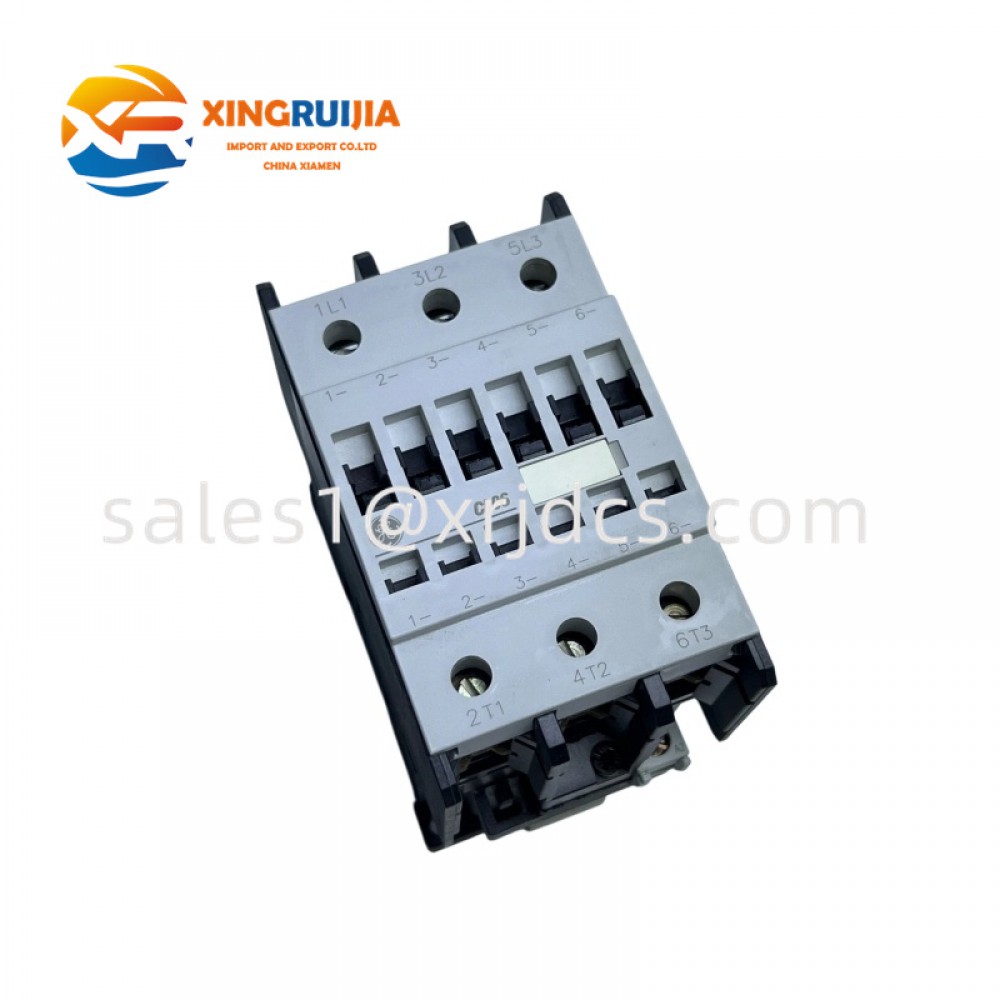

GE CL06A300M1

Product Overview

The GE CL06A300M1 is a high-performance industrial contactor designed by General Electric (GE) for motor control and power switching applications. As part of the GE CL series contactor family, this device is engineered to provide reliable electrical switching, efficient power management, and long service life in industrial automation and electrical distribution systems.

The CL06A300M1 is mainly used for controlling three-phase motors, industrial machinery, HVAC equipment, pumps, compressors, and other electrical loads requiring dependable switching operations. With a compact design, robust mechanical construction, and compatibility with standard industrial control systems, this contactor is suitable for a wide range of automation and power control environments.

GE designed the CL series contactors to meet international industrial requirements, offering flexible installation options, reliable coil operation, and convenient integration with auxiliary accessories. The CL06A300M1 is an ideal choice for applications where stable operation, safety, and efficient maintenance are important factors.

---

Technical Specifications

The GE CL06A300M1 combines reliable switching performance with a practical industrial design. Its main specifications are listed below:

Parameter	Description
Manufacturer	General Electric (GE)
Model Number	CL06A300M1
Product Type	Industrial Contactor
Series	CL Series
Contact Configuration	3-Pole, Normally Open (NO x3)
Rated Control Voltage	24 VAC
Frequency	50/60 Hz
Rated Operating Current	50 A
Motor Rating	22 kW (AC-3, 380/400 V)
Mounting Method	DIN rail mounting or panel mounting
Terminal Type	Screw terminals / double clamp terminals
Application Category	AC-3 motor switching applications
Auxiliary Contacts	Compatible with optional auxiliary blocks
Protection Design	Finger-safe terminal construction
Installation Environment	Industrial control cabinets

---

Functional Description

The primary function of the GE CL06A300M1 contactor is to control the connection and disconnection of electrical power circuits through an electromagnetic switching mechanism.

When the control coil receives the required voltage signal, the internal electromagnetic system activates and closes the main contacts, allowing electrical power to flow to the connected load. When the coil is de-energized, the contacts return to their original position, interrupting the power circuit.

This operating principle allows the CL06A300M1 to provide safe and efficient control of industrial equipment without requiring manual switching. It is commonly integrated into automatic control systems where frequent start and stop operations are required.

Typical controlled equipment includes:

• Three-phase induction motors
• Pumps and fans
• Conveyor systems
• Compressors
• Industrial machinery
• Production line equipment

The contactor can also be combined with overload relays, auxiliary contacts, and other control accessories to create complete motor starter solutions.

---

Structural Design and Main Components

The GE CL06A300M1 features a compact modular structure designed for industrial applications.

Electromagnetic Coil Assembly

The coil is the control element responsible for activating the contactor mechanism. The 24 VAC coil version allows easy integration with many industrial control circuits and PLC-based automation systems.

The reliable coil design helps ensure stable operation during repeated switching cycles.

Main Contact System

The contactor includes three main power contacts designed for three-phase electrical loads.

The contact structure provides:

• Low electrical resistance
• Reliable current transmission
• Reduced contact wear
• Long operational lifespan

This makes the device suitable for demanding industrial switching environments.

Suitable for Automation Systems

The 24 VAC coil design makes the CL06A300M1 easy to connect with industrial controllers, relay systems, and automation panels.

It can work together with:

• PLC control systems
• Motor control centers
• Industrial relay circuits
• Machine automation systems

Long Service Life

The high-quality mechanical and electrical design helps reduce maintenance requirements and improves equipment availability.

For industrial users, this means:

• Reduced downtime
• Lower maintenance costs
• Improved operational reliability

---

Application Fields

Industrial Automation

The GE CL06A300M1 is widely used in automated manufacturing systems for controlling motors, actuators, and production equipment.

It can be installed in:

• Assembly lines
• Packaging machines
• Material handling systems
• Factory automation equipment

Motor Control Applications

The contactor is especially suitable for motor starting and stopping applications.

Common examples include:

• Pumps
• Fans
• Compressors
• Machine tools
• Conveyor motors

Building and Facility Systems

The CL06A300M1 can also be applied in commercial and industrial facility systems for controlling:

• Ventilation equipment
• Air conditioning motors
• Water circulation systems
• Auxiliary electrical loads

Energy and Infrastructure Projects

Because of its reliable switching characteristics, the contactor can support electrical control systems used in infrastructure and utility applications.

---

Installation and Maintenance Guidelines

Proper installation ensures safe and reliable operation of the GE CL06A300M1.

Before installation, engineers should verify:

• Correct coil voltage compatibility
• Appropriate current rating
• Proper wiring arrangement
• Suitable installation environment
• Correct protection devices

During installation:

1. Mount the contactor securely on the DIN rail or panel.
2. Connect control wiring according to electrical diagrams.
3. Ensure power terminals are tightened properly.
4. Check insulation and grounding conditions.

For routine maintenance, recommended inspections include:

• Checking terminal tightness
• Inspecting contact wear
• Confirming coil operation
• Cleaning dust from the enclosure
• Checking abnormal noise or overheating

If excessive contact wear or abnormal operation occurs, the contactor should be inspected and replaced according to maintenance procedures.

---

Product Value and Supply Information

The GE CL06A300M1 industrial contactor remains a reliable component for motor control and industrial electrical applications. Its combination of compact design, 50 A switching capability, 24 VAC coil control, and compatibility with GE CL series accessories makes it suitable for both new installations and replacement projects.

As an industrial automation spare parts supplier, we provide GE electrical components, automation modules, control products, and related industrial equipment. The GE CL06A300M1 can support customers requiring maintenance replacements, system upgrades, and long-term spare inventory solutions.
