GE CR309C002BAA

Overview

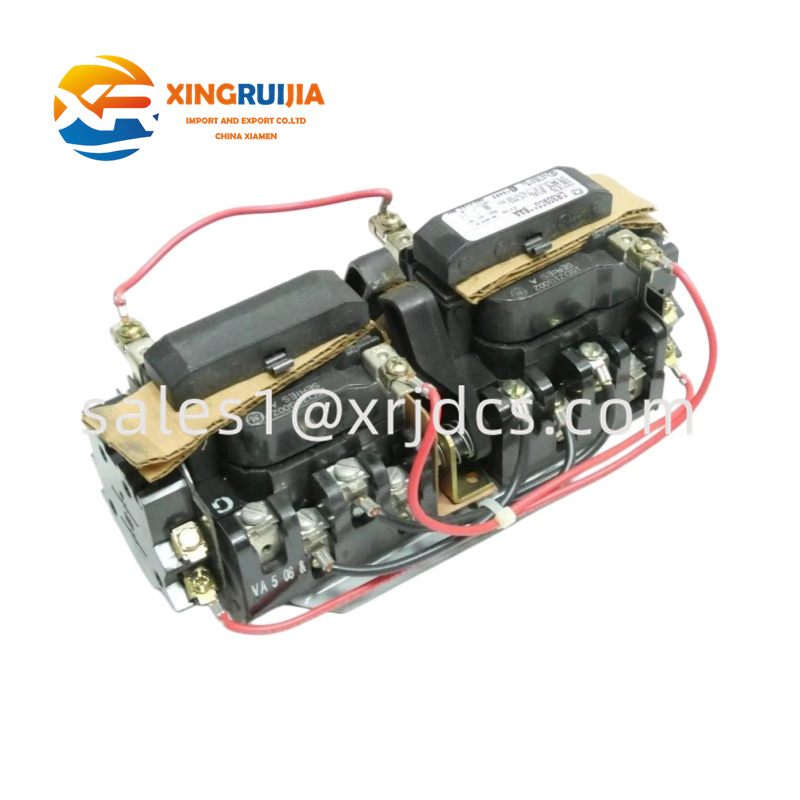

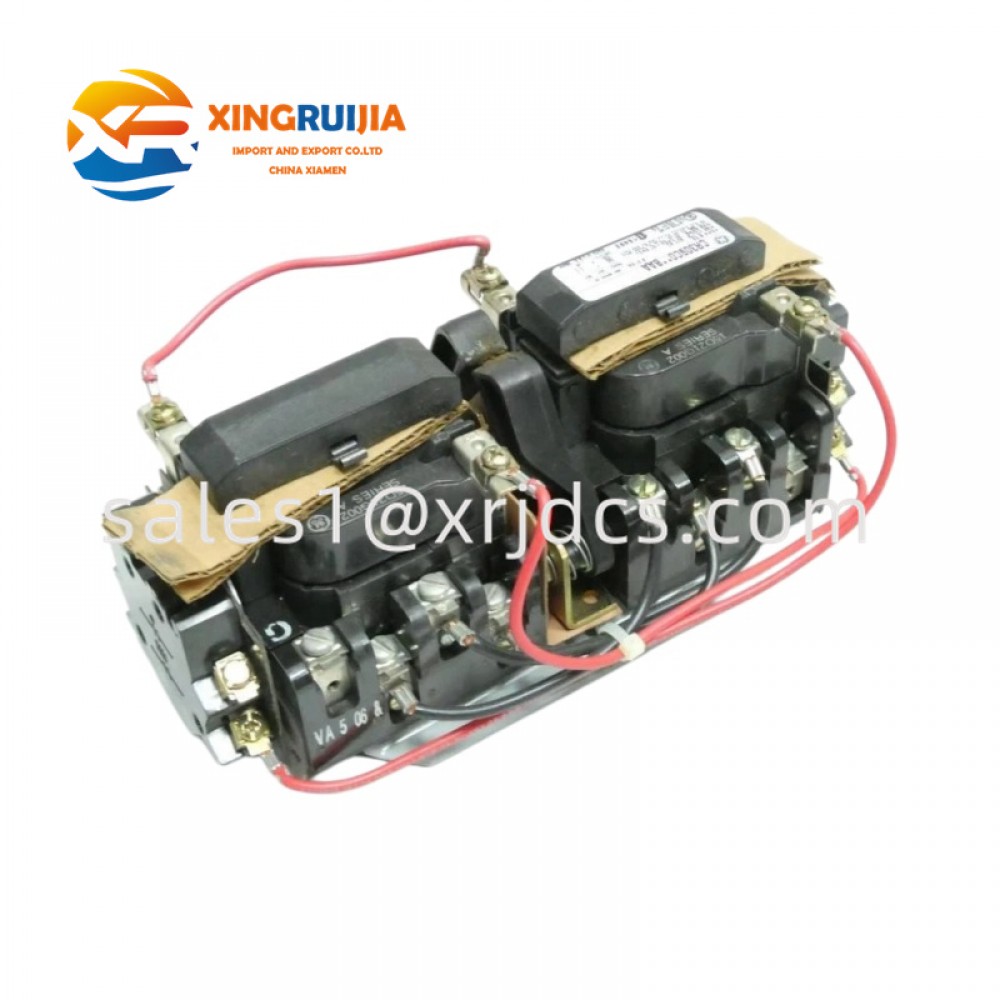

The GE CR309C002BAA is a NEMA-rated reversing magnetic motor starter from GE’s CR309 300-line series. It is designed to control the forward and reverse operation of three-phase AC motors, providing reliable motor switching, overload protection, and safe operation in industrial automation systems.

This device is widely used in industrial machinery, conveyors, pumps, hoists, compressors, and manufacturing equipment where directional motor control is required.

---

Product Type & Function

The CR309C002BAA is classified as:

• Reversing magnetic motor starter
• NEMA Size 1 motor controller
• Full-voltage non-combination starter
• Industrial motor protection and switching device

Its main function is to switch motor rotation direction (forward/reverse) while protecting the motor from overload conditions using integrated thermal overload relays.

---

Technical Specifications

Item	Specification
Model	CR309C002BAA
Manufacturer	GE (General Electric)
Series	CR309 / 300 Line
Type	Reversing magnetic motor starter
NEMA Size	1
Rated Current	27 A
Voltage Rating	600 VAC
Control Coil Voltage	115–120 VAC (50/60 Hz)
Poles	3-pole
Enclosure Type	Open type (non-enclosed)
Overload Protection	Thermal overload relay (3-leg block type)
Operation	Forward / Reverse switching
Mounting	Panel / industrial control cabinet

---

Key Features

The CR309C002BAA is designed for rugged industrial performance and includes:

• Reliable forward/reverse motor control
• Heavy-duty NEMA Size 1 construction
• Integrated thermal overload protection
• High interrupting and switching capacity for industrial motors
• Mechanical interlock to prevent simultaneous forward/reverse engagement
• Encapsulated coil design for improved durability
• Long mechanical and electrical service life
• Suitable for continuous industrial operation

---

Structure & Internal Composition

The unit is built using a modular electromechanical design, typically including:

• Forward Contactor Assembly – Controls motor rotation in one direction
• Reverse Contactor Assembly – Reverses phase sequence for opposite rotation
• Mechanical Interlock System – Prevents both contactors from closing simultaneously
• Thermal Overload Relay Unit – Detects overcurrent conditions and trips the circuit
• Coil Control Circuit (120 VAC) – Energizes contactor switching mechanism
• Main Power Contacts – Carry motor load current during operation
• Arc Suppression Components – Reduce contact wear during switching

This structure ensures safe directional motor control in demanding environments.

---

Applications

The GE CR309C002BAA is commonly used in:

• Conveyor belt systems
• Industrial pumps and pumping stations
• HVAC and ventilation systems
• Hoists and lifting equipment
• Manufacturing production machinery
• Machine tools and processing equipment
• Material handling systems

It is especially suitable where frequent motor direction changes are required.

---

Installation & Maintenance

Installation Guidelines

• Must be installed inside a properly rated industrial control panel
• Ensure correct 120 VAC control voltage wiring for coils
• Proper grounding is required for safety and noise reduction
• Verify phase sequence before commissioning
• Mechanical interlock must be tested before operation

Maintenance Recommendations

• Regular inspection of contact wear and pitting
• Check coil condition and thermal overload settings
• Tighten terminal connections periodically
• Replace worn contact sets when switching performance degrades
• Ensure ventilation inside control cabinet to avoid overheating

---

Advantages

• Proven GE industrial reliability
• Simple and robust electromechanical design
• Cost-effective solution for motor reversing control
• Easy maintenance and component replacement
• Strong overload protection for motor safety
• Suitable for harsh industrial environments

---

Limitations

• Open-type design requires cabinet protection
• Electromechanical wear over long-term switching cycles
• No modern digital diagnostics or communication features
• Replacement may be limited due to legacy product status

---

Summary

The GE CR309C002BAA reversing motor starter is a robust and widely used industrial control device designed for safe and reliable forward/reverse operation of three-phase motors. With its NEMA Size 1 rating, 27A capacity, and integrated thermal protection, it remains a dependable solution for industrial motor control applications.

————————————————————————————————————————————————————————————————————————
