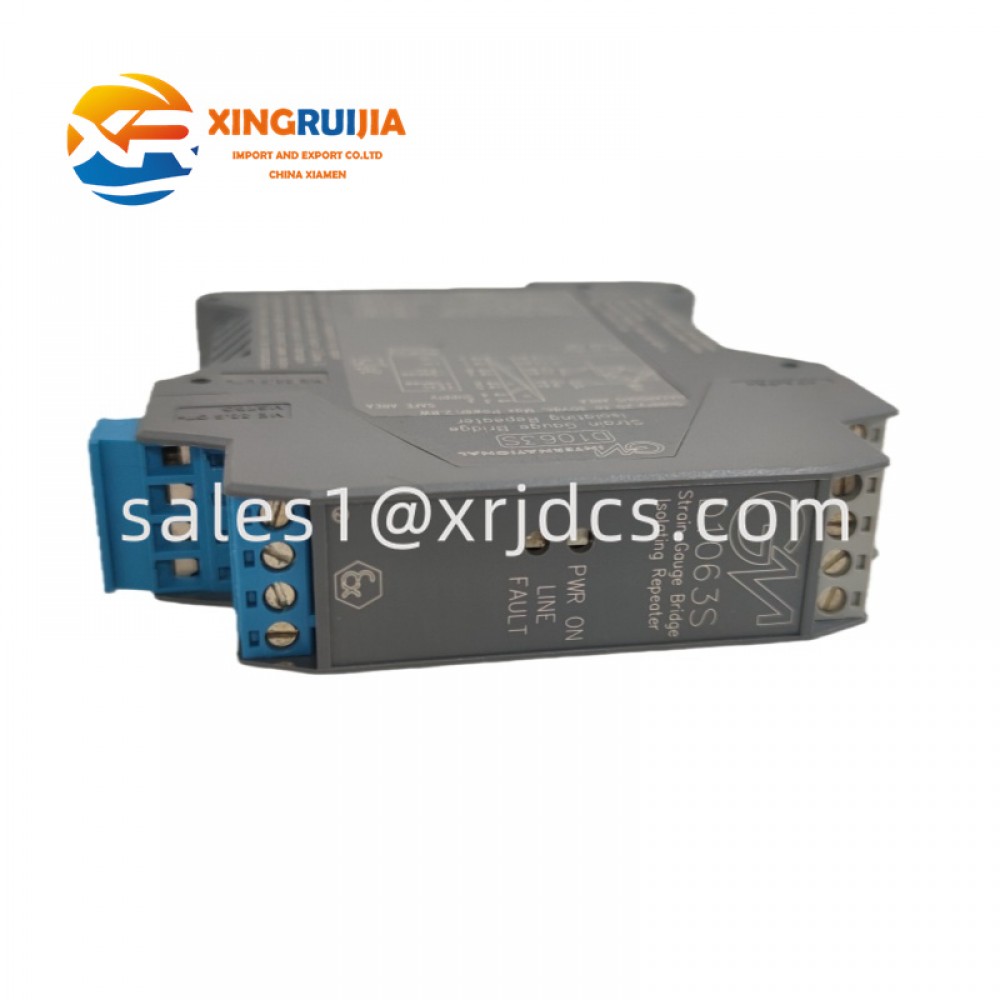

GE D1063S

Product Overview

The GE D1063S is a specialized galvanic isolation repeater engineered to provide precise, transparent signal isolation for load cells and strain gauge bridges, particularly in hazardous industrial environments. It functions as an interface between weighing sensors located in hazardous areas and control systems in safe zones, ensuring accurate signal transmission while maintaining safety and system integrity.

---

What It Does

The D1063S module is designed to:

• Provide galvanic isolation between hazardous‑area sensors and safe‑area instrumentation

• Repeat and condition low‑level mV signals from load cells or strain gauge bridges

• Protect control systems from ground loops, electrical noise, and intrinsic safety risks

• Support signal transmission from multiple load cells in parallel

• Offer built‑in field wiring fault detection for enhanced diagnostics




---

Key Technical Characteristics

Feature	Specification
Model	D1063S
Product Type	Load Cell / Strain Gauge Bridge Isolating Repeater
Function	Galvanic isolated signal repeater
Input Signal	Strain gauge bridge (3‑wire/4‑wire)
Output	Isolated mV signal
Load Cell Capacity	Up to 4 × 350 Ω, 6 × 450 Ω, or 12 × 1000 Ω (parallel)
Power Supply	20–30 V DC
Mounting	DIN‑rail (EN/IEC60715 TH35)
Protection Class	IP20
Operating Temp.	−20 °C to +60 °C
Storage Temp.	−45 °C to +80 °C
Isolation Voltage	250 Vrms (max)
Fault Detection	LED indication for field wiring breaks

---

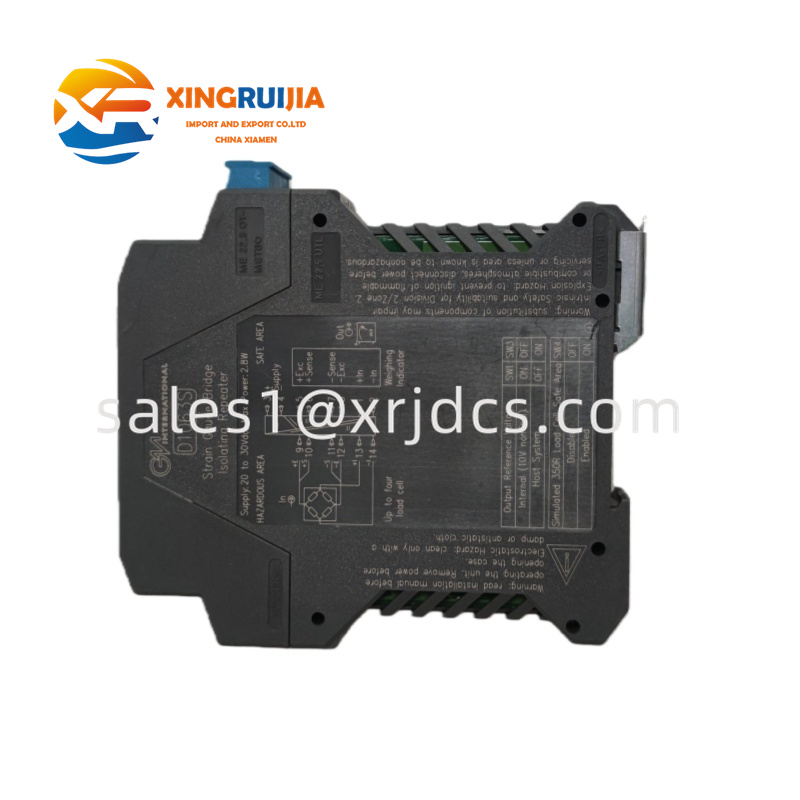

Design and Construction

The D1063S comes in a rugged DIN‑rail mountable housing with polarized screw terminals for secure connections. Internally, the isolator uses precision circuitry to perform three‑port galvanic isolation — separating input, output, and power supply paths to prevent electrical interference and ensure measurement integrity. DIP switches allow flexible configuration of reference voltage sources (internal or external).

---

Core Features & Advantages

• Intrinsic Safety Compliance: Designed for use with load cells in hazardous environments (can be installed in safe zones adjacent to Zone 0 hazardous areas) without requiring external Zener barriers.

• High Parallel Capacity: Supports multiple load cells in parallel, making it suitable for systems with several force sensors.

• Fault Monitoring: Built‑in LED indicates wiring faults or open field circuits, simplifying troubleshooting.

• Noise Immunity: Galvanic isolation improves signal clarity, minimizing ground loop and EMI problems.

---

Typical Applications

This isolating repeater is widely used in:

• Industrial weighing systems and scales

• Load monitoring in hazardous areas (oil & gas, chemical plants)

• Conveyor tension measurement and process control

• Offshore and marine load measurement (with appropriate certifications)

• Any application requiring safe, isolated load cell signal interfacing

---

Installation & Best Practices

The unit is installed on a standard DIN rail inside control or distribution cabinets. Ensure proper grounding and shielding of sensor cables to maintain signal integrity. DIP switch settings should be configured according to system reference voltage and load cell type. Periodic inspection of wiring and LED fault indicators helps maintain operational reliability.
