GE DS200CTBAG1A

Product Overview

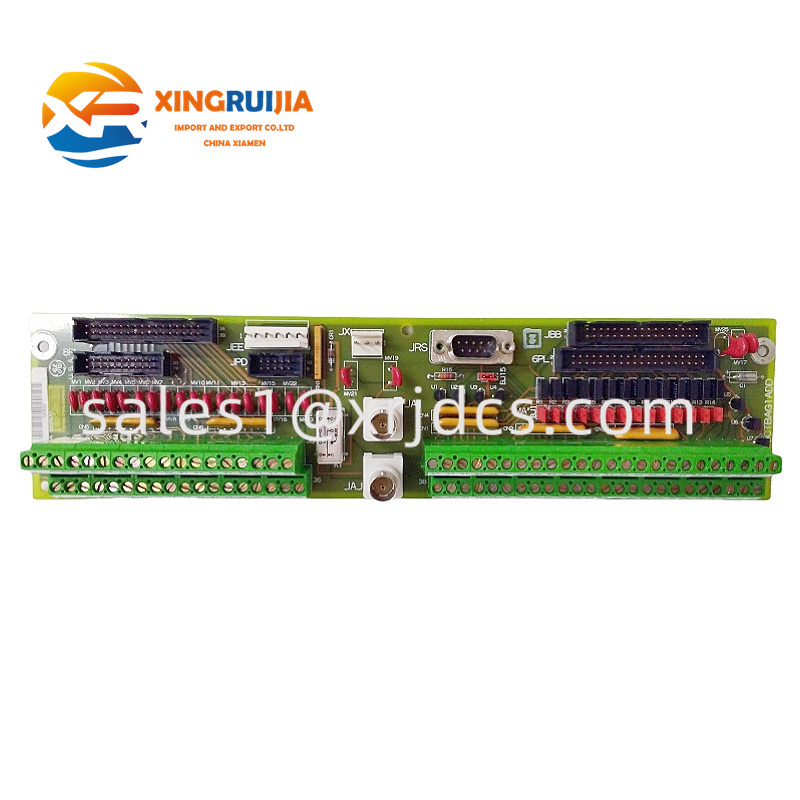

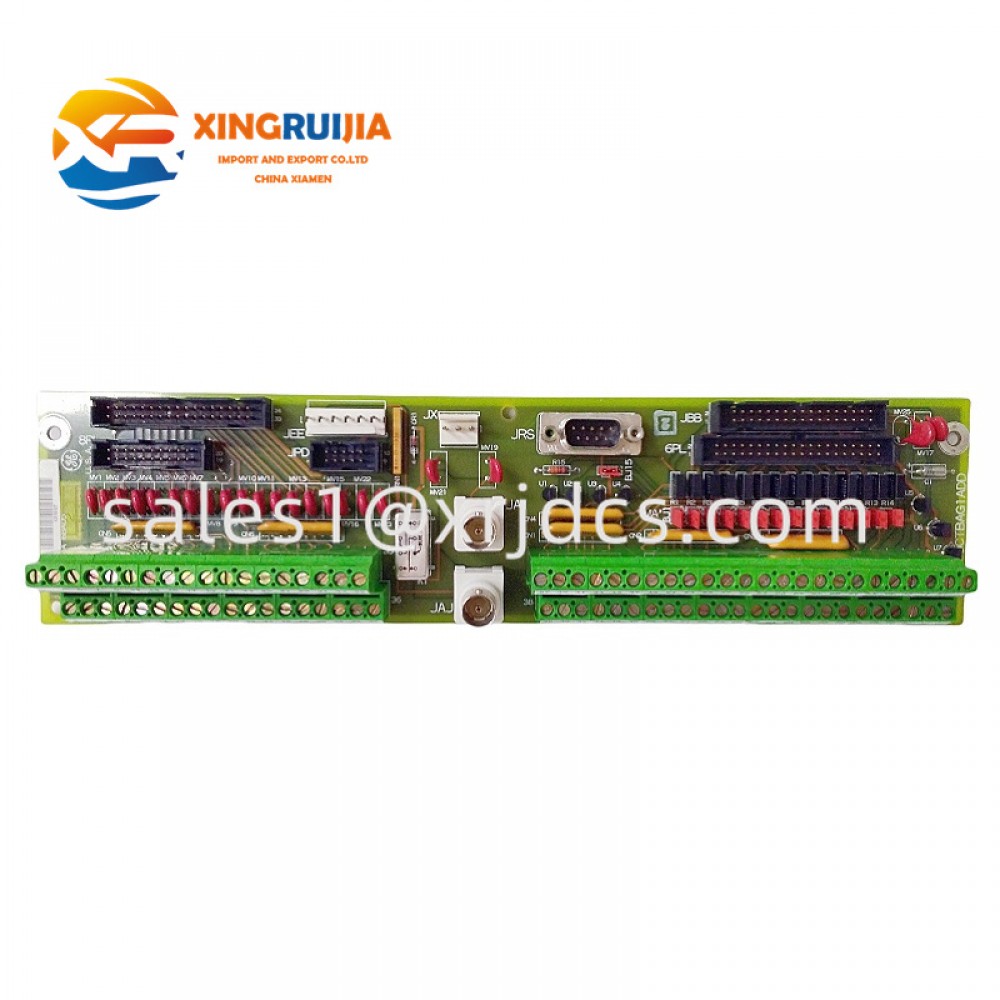

The GE DS200CTBAG1A is an analog termination board designed for the GE Mark V LM turbine control system. It provides interfaces for analog input and output signals, shaft voltage and current signals, and communication connections between compatible control boards. The board supports signal routing and monitoring within industrial turbine control applications.

Technical Specifications

Parameter	Description
Brand	General Electric (GE)
Product Model	DS200CTBAG1A
Product Type	Analog Termination Board
Functional Acronym	CTBA
Product Series	Mark V LM
Analog Signal Interface	4–20 mA inputs and outputs
Communication Interfaces	IONET and COREBUS
Diagnostic Interface	RS-232 monitor connection

Main Features

• Analog Signal Handling: Supports connections for 4–20 mA analog inputs and outputs.

• Communication Support: Provides interfaces for communication between compatible turbine control boards.

• Shaft Signal Connections: Accommodates shaft voltage and current signals.

• Diagnostic Access: Supports serial monitoring through the associated diagnostic interface.

• System Integration: Helps connect field signals with the Mark V control architecture.

These functions are described in available product references.

Structure and Applications

The board consists of a printed circuit board, electronic protection components, communication connectors, and hardware configuration jumpers. Its connectors link analog signals and communication paths with designated boards in the control system.

Typical applications include:

• Gas and steam turbine control systems

• Power generation facilities

• Industrial turbine monitoring

• Maintenance of legacy GE Mark V installations

Installation and Maintenance

Before replacing the board, isolate the equipment from all relevant power sources and follow site safety procedures. Verify connector positions and jumper settings against the original system documentation. Inspect connectors for corrosion and check for damaged components. Use appropriate electrostatic discharge protection when handling the circuit board.

Purchasing Information

We supply industrial automation spare parts, including GE turbine control boards, PLC modules, I/O assemblies, and power supply components. Contact us to confirm availability, board revision, product condition, and shipping arrangements.
