GE DS200DCFBG1BGB

Product Overview

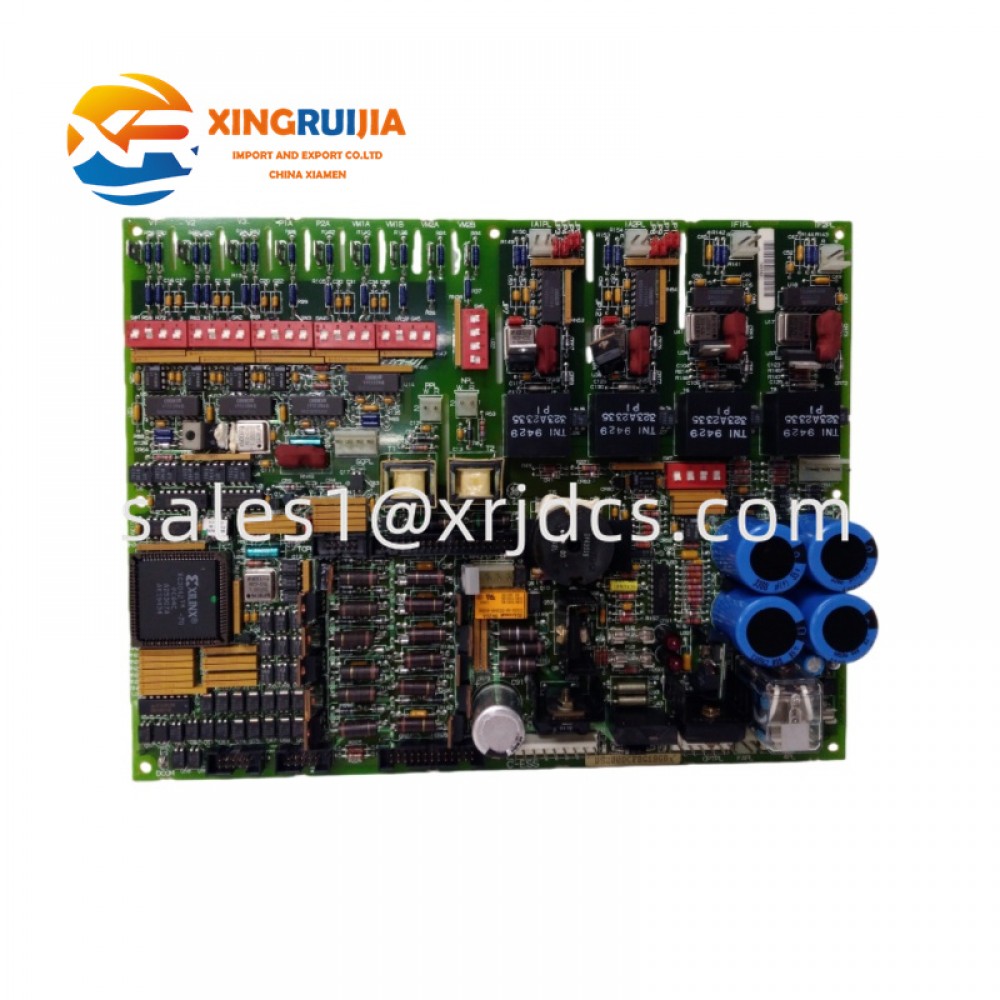

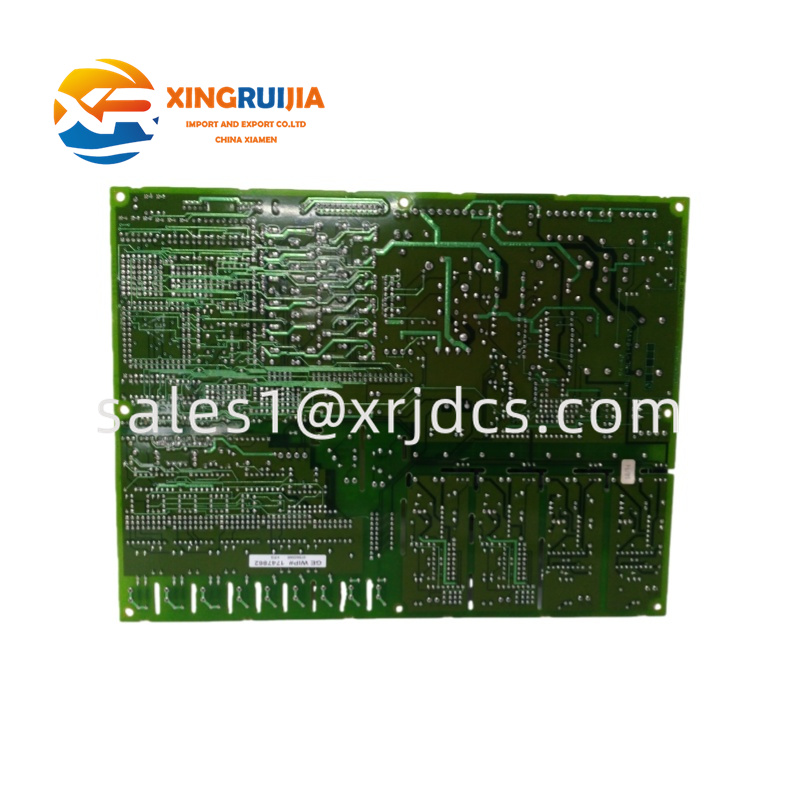

The GE DS200DCFBG1BGB is a power supply and feedback board designed for use in industrial automation and control systems, particularly within the GE Mark V drive and turbine control series. It manages control level power distribution, feedback monitoring, and system diagnostics for connected modules, ensuring dependable power and operational signals in demanding industrial environments.

---

Technical Parameters

• Model: DS200DCFBG1BGB

• Brand: GE (General Electric)

• Product Type: Power Supply / Feedback Board

• Applicable Series: Mark V drive and control systems (e.g., DC2000, AC2000, FB2000 variants)

• Input Voltage Range: ~38–115 VAC via control power transformer

• Auxiliary Power: 24 V DC support (system dependent)

• Mounting Style: PCB board for rack or chassis installation

• Operating Temp.: Industrial range (system dependent)

• Protection & Indicators: LED and neon indicator lights for fuse and supply status

• Configurability: Configurable via jumpers and DIP switches for system options




---

Core Functions

The DS200DCFBG1BGB performs multiple critical roles within GE Mark V systems:

• Control Level Power Supply: Provides stable DC power to control boards and associated electronics.

• Enclosure Fan Power: Supplies AC power to internal cooling fans.

• Voltage Feedback & Monitoring: Supplies accurate feedback signals to processing and control units for system regulation.

• Diagnostic Status Reporting: Integrated LEDs and test points give real-time status for power circuits and fuse condition.

---

Design & Structure

Built as a printed circuit board (PCB) module, this unit includes multiple sub‑circuits responsible for power regulation, driver interfaces, monitoring circuits, and feedback signal conditioning. Adjustable jumpers and DIP switches enable configuration for specific application requirements. Integrated protective fuses and visual indicators aid both protection and maintenance diagnostics.

---

Typical Industrial Applications

This board is widely used in:

• Mark V turbine control systems for steam, gas, and industrial drives.

• Industrial drive systems requiring stable control power and feedback handling.

• Energy generation automation and power distribution control.

• Process automation platforms where reliable power feedback is essential.




---

Installation & Maintenance

Installation typically involves securely mounting the board within the designated rack or chassis of the automation system. Ensure that power inputs and connectors align with system specifications, and verify jumper/DIP settings according to configuration requirements. Routine visual checks of indicator lights and test point voltages help maintain dependable operation with minimal downtime.

---

Why Choose DS200DCFBG1BGB

The GE DS200DCFBG1BGB is engineered for durability and performance in environments where power stability and feedback accuracy are critical. Its modular and configurable design helps system integrators and maintenance teams achieve reliable automation outcomes with clear diagnostics and long service life.
