GE DS200DCFBG2BNC-MRP433745

I. Overview

The GE DS200DCFBG2BNC MRP433745 is one of the core components of the GE Mark V series control systems. Specifically designed for gas turbine and steam turbine management systems, it provides precise monitoring and control functions. As part of the Speedtronic gas turbine and steam turbine management system, this product has been continuously iterated since the late 1960s, adopting the best available technologies at that time to ensure system reliability. Its core role is to provide a stable DC power supply for the control system and realize real-time monitoring and adjustment of the operating status of gas turbines or steam turbines through a feedback mechanism.

II. Parameters

• Input voltage: 24V DC (some data mentions 120/240 VAC, specific model needs to be confirmed)
• Output voltage: 0~10V DC (12-bit high-precision analog output)
• Rated current: 2A
• Operating temperature range: -40℃ to 85℃ (some data shows -20℃ to 65℃)
• Response time: 0.5ms for both on and off
• Dimensions: 3.5 inches × 2.5 inches × 0.75 inches (some data shows 6.5 × 3.5 × 5.0 inches)
• Weight: 0.45 kg (some data shows 1.5 pounds)

III. Product Features

• High reliability
  • Adopts industrial-grade design and high-quality components, suitable for harsh industrial environments.
  • Redundant design (triple voting function) and digital control functions, supporting complex industrial scenarios.
• Stable power output
  • Provides precise and stable DC power supply to ensure the normal operation of connected equipment.
  • Integrates AC/DC monitoring circuits to ensure the stability of system power supply.
• Multiple protection mechanisms
  • Includes overvoltage, overcurrent and short-circuit protection functions, realized through fuses and jumpers.
  • When the fuse is blown, the indicator light will turn on, facilitating fault diagnosis.
• Easy integration
  • Modular design, seamlessly adapts to GE Mark V/VI systems, supporting rapid upgrades.
  • Electrically isolated 12-bit analog output, with strong anti-interference ability.
• Durability
  • Optimized for industrial environments, with strong anti-electromagnetic interference ability.

IV. Structure and Composition

• Connector layout

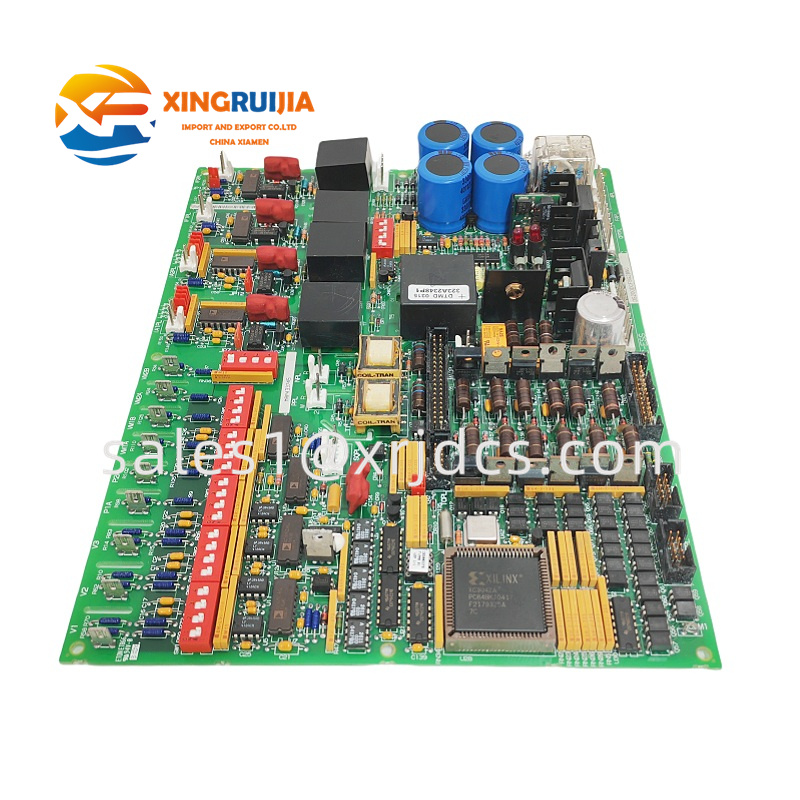

  • Sends/receives input and output signals through 18 plug connectors and 9 pin connectors. The pin connectors are located in the upper left corner (marked V1-V3, P1A, etc.).
  • Plug connectors cover the entire circuit board, supporting 2-pin to multi-pin connectors.
• Core components
  • 7 transformers, oscillation chips, relays, more than 50 resistor network arrays, heat sinks, and various integrated circuits and capacitors.
  • Resistors made of carbon composite resistors and metal film materials to improve durability.
• Protection and configuration
  • 7 DIP switches are used to select AC line voltage and feedback circuit parameters.
  • 5 test points (TP) and 12 jumpers are used for debugging and configuration.
  • 3 fuses provide overcurrent protection.

V. Application Fields

• Energy industry
  • Power plants: Provide stable power supply for gas turbine and steam turbine control systems.
  • Wind power generation: Support the automatic control of wind turbines.
• Industrial automation
  • Manufacturing: Control modules for CNC machine tools and automated production lines.
  • Petrochemical industry: Power support for key control units and instruments.
• Other fields
  • Iron and steel metallurgy: Stable power supply for automated production line equipment.
  • Water treatment: Reliable power supply for pump stations and control system equipment.
  • Transportation: Rail transit signal control, intelligent transportation systems.

VI. Installation and Maintenance

• Installation requirements
  • Must comply with GE Speedtronic system standards to ensure compatibility with the Mark V/VI series.
  • During installation, check that all electrical connections are secure to avoid poor contact.
• Maintenance recommendations
  • Regular inspection: Test the status of fuses and replace blown ones.
  • Firmware update: Regularly update firmware to obtain the latest functions and security patches.
  • Environmental monitoring: Ensure the working temperature is within the range of -40℃ to 85℃, and avoid high temperature or humid environments.
• Troubleshooting
  • When a fuse is blown, locate the fault point through the indicator light and replace it.
  • Adjust parameters through DIP switches and jumpers to optimize system operation.

————————————————————————————————————————————————————————————————————————
