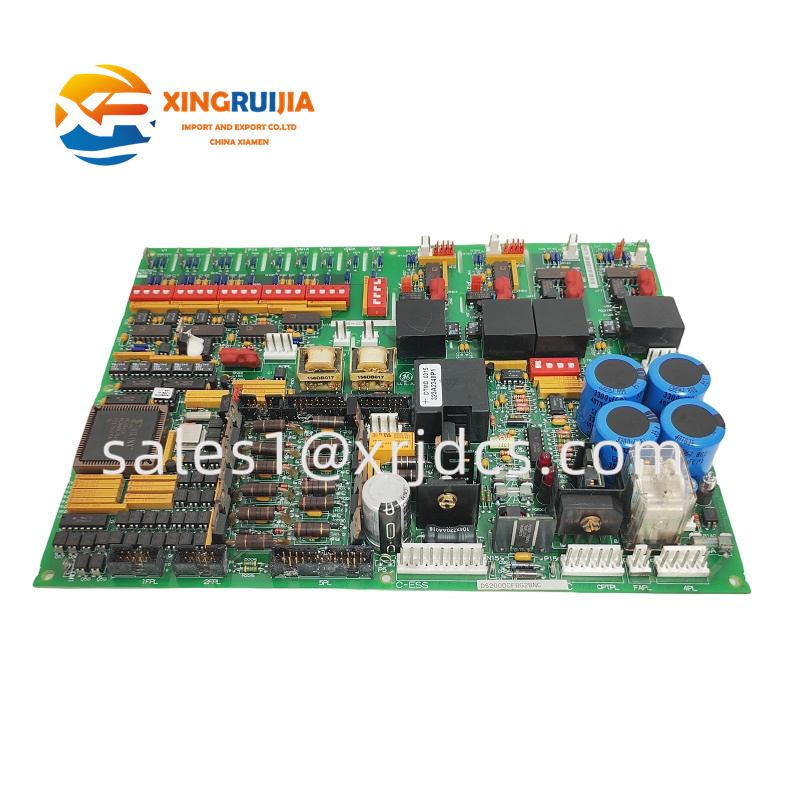

GE DS200DCFBG2BNC MRP56966

I. Overview

The GE DS200DCFBG2BNC is a field control processor module specifically designed for industrial automation. It is one of the core components of the GE Speedtronic control system (Mark V/VI series). Its main function is to provide DC power support and signal processing capabilities for industrial equipment such as gas turbines and steam turbines, and it is widely used in energy, manufacturing, chemical and other industries. The module communicates with external devices through standardized interfaces, supports multiple industrial protocols, and has high reliability and anti-interference capabilities.

II. Parameters

• Input voltage: 24 VDC (some documents mention 200-240V AC input)
• Output voltage: 24 VDC
• Operating temperature range: -20°C to 65°C (some documents mention 10-40°C)
• Dimensions: 6.5 x 3.5 x 5.0 inches (approximately 16.5 x 9 x 12.7 cm)
• Weight: 1.5 pounds (approximately 0.68 kg)
• Communication interface: 18 plug connectors + 9 pin connectors (top left corner)
• Number of fuses: 3 (for power protection)
• Number of DIP switches: 7 (for configuring AC line voltage, etc.)
• Number of test points: 5 (TP test points)
• Number of jumpers: 12

III. Product Features

• Industrial-grade reliability
  • Designed for harsh industrial environments, with high durability and anti-interference capabilities.
  • Adopts resistor networks made of carbon composite resistors (CCR) and metal film materials to improve stability and service life.
• Flexible communication capabilities
  • Supports multiple industrial protocols (such as Modbus, Profibus, etc.), facilitating integration with systems like PLC and HMI.
  • Provides electrically isolated 12-bit analog output, suitable for high-precision control scenarios.
• Modular design
  • Includes 7 transformers, relays, oscillation chips, radiators and other core components, supporting rapid fault diagnosis and maintenance.
  • Realizes voltage configuration through DIP switches and jumpers to adapt to different industrial scenarios.

IV. Structure and Composition

• Physical structure
  The circuit board size is 6.5 x 3.5 x 5.0 inches, using a standard DIN rail mounting method.
  Connector layout:
  • Top left corner: 9 pin connectors (V1-V3, P1A-P2A, etc.).
  • Other areas: 18 plug connectors (2-pin to multi-pin).
• Core components
  • Power protection: 3 fuses (trigger indicator alarm after fusing).
  • Signal processing: 7 DIP switches (select AC line voltage), 5 TP test points (manual debugging).
  • Electronic components: 7 transformers, 50+ resistor network arrays, relays, integrated circuits, capacitors, etc.

V. Application Fields

• Energy industry
  • Gas/steam turbine control systems: As the power board of the Mark V/VI system, it supports the operation monitoring of gas turbines (such as MS9001E) and steam turbines.
  • Circulating water pump control: Realizes automatic control and fault detection of pumps, butterfly valves, filters and other equipment through micro PLC.
• Industrial automation
  • Manufacturing industry: Control modules for CNC machine tools and automated production lines.
  • Chemical industry: Process control and data acquisition systems.
  • Transportation field: Rail transit signal control, intelligent transportation systems.
• Other fields
  • Wind energy/photovoltaic systems: Used for control and monitoring of new energy power generation equipment.
  • Building automation: Integrated control of lighting and HVAC systems.

VI. Installation and Maintenance

• Installation steps
  • Pre-inspection: Confirm that the power supply voltage (24VDC) and ambient temperature (-20°C to 65°C) meet the requirements.
  • Physical installation: Fix on the control cabinet through DIN rail, ensuring that the connector direction is consistent with the drawing.
  • Configuration settings:
    • Use DIP switches to set the AC line voltage (such as 220V/440V).
    • Select the feedback mode (such as DC bridge voltage feedback) through jumpers.
• Maintenance suggestions
  • Regular inspection:
    • Check the status of fuses (replace immediately and record faults if fused).
    • Test the voltage of TP test points to ensure normal signal transmission.

————————————————————————————————————————————————————————————————————————
