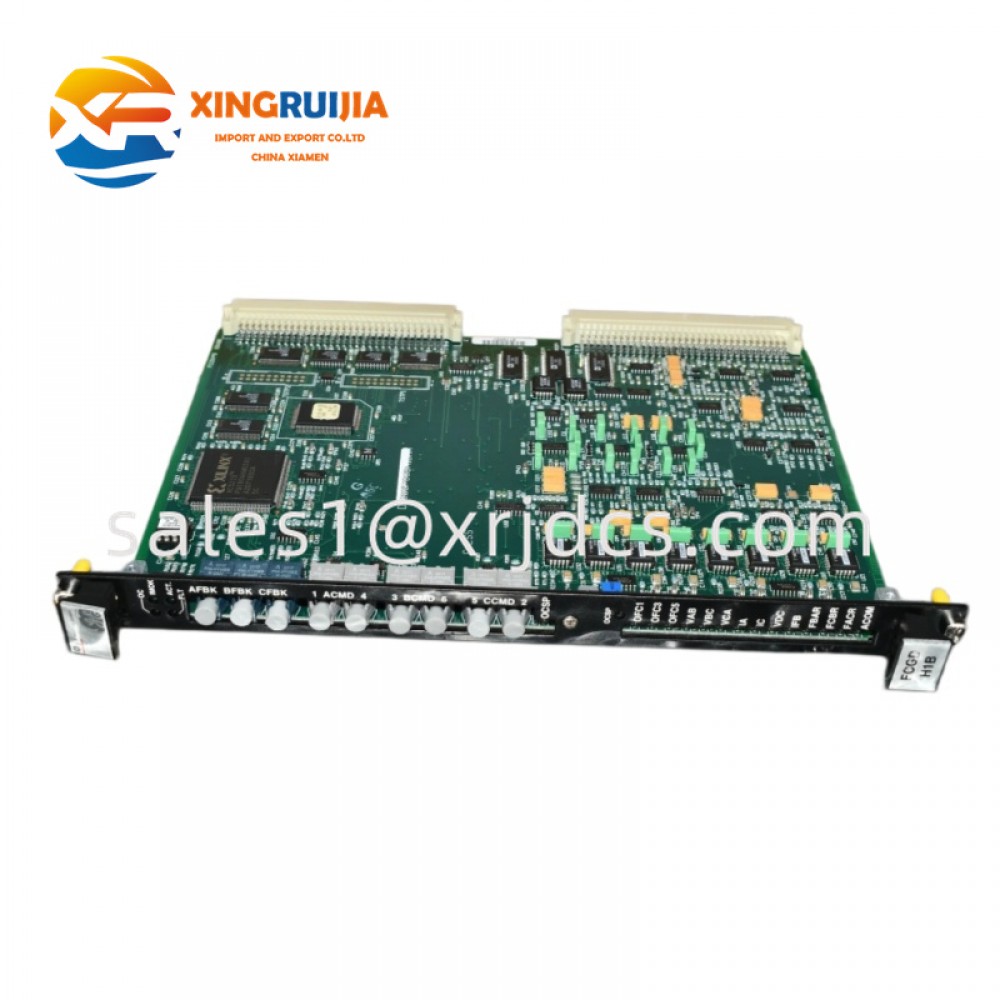

GE DS200FCGDH1BBA

Product Overview

The GE DS200FCGDH1BBA is a Gate Distribution and Status Board. It belongs to the GE Mark V family.

The board is also known by the functional acronym FCGD. It is designed for drive control and power conversion applications.

The FCGD board interfaces with a six-pulse phase-controlled non-reversing bridge. It receives information from the DSPC control board. Then, it processes the signals for gate control and system feedback.

The board is also associated with GE LCI and related drive systems. Therefore, it is useful for legacy industrial control and maintenance projects.

Technical Specifications

The main specifications of the DS200FCGDH1BBA include:

• Manufacturer: General Electric
• Model: DS200FCGDH1BBA
• Product Family: Mark V
• Functional Acronym: FCGD
• Product Type: Gate Distribution and Status Board
• Board Format: 6U VME
• Main Function: Gate signal distribution and status feedback
• Bridge Interface: Six-pulse phase-controlled non-reversing bridge
• Communication Architecture: VME backplane
• Board Size: Approximately 9.2 x 6.3 inches
• PCB Design: Six-layer construction
• Component Type: Surface-mounted and conventional components

The board receives diagnostic information from the DSPC board. It then translates control signals into gate signals for the bridge circuit.

Key Features

Gate Signal Distribution

The FCGD board distributes gate control signals to the bridge. These signals control the switching operation of the connected power devices.

As a result, the board supports accurate power control. It is important for stable drive system operation.

Status Feedback

The board also collects status information from the bridge. It processes feedback signals and sends relevant information back through the system.

Therefore, the control system can monitor operating conditions. This also supports troubleshooting and system diagnostics.

VME-Based Architecture

The DS200FCGDH1BBA uses a 6U VME board format. This design allows it to integrate with compatible GE control racks.

The VME backplane also provides system communication. Consequently, the board can exchange control and diagnostic information with other modules.

Industrial PCB Construction

The board uses a multilayer PCB design. Surface-mounted devices are installed on both sides of the board.

This construction provides a compact layout. It also supports efficient signal routing within the control system.

Structure and Functional Design

The DS200FCGDH1BBA contains several important functional areas.

Gate Control Section
This section handles gate signals for the six-pulse bridge. It helps coordinate switching actions within the drive system.

Feedback Section
The board receives multiplexed status information from the bridge. It also processes feedback signals for the control system.

DSPC Interface
The board communicates with the DSPC control board. The DSPC provides information that the FCGD uses for control and diagnostic functions.

VME Interface
The VME interface connects the board with the system backplane. It provides a communication path to other control modules.

Application Areas

The GE DS200FCGDH1BBA is used in industrial drive and power control applications.

Typical applications include:

• GE LCI drive systems
• Industrial motor control
• Six-pulse power conversion systems
• GE Mark V control systems
• Industrial excitation equipment
• Power control applications
• Legacy automation systems
• Drive maintenance and replacement projects

The board is especially useful when maintaining older GE control equipment. Its original design supports specialized drive and bridge control functions.

Installation and Maintenance

Before installation, verify the complete part number. Also, check the board revision and system compatibility.

Always remove system power before replacing the PCB. Follow the applicable GE maintenance procedures during installation.

Technicians should inspect the following areas:

• VME backplane connectors
• Board edge connectors
• Gate signal connections
• Feedback connections
• PCB components
• Signs of overheating
• Physical board damage

In addition, use proper anti-static protection when handling the board. Keep the control cabinet clean and dry.

After installation, check system diagnostics carefully. Verify gate control and feedback signals before returning the equipment to normal operation.

Product Value

The GE DS200FCGDH1BBA Gate Distribution and Status Board is a specialized component for GE drive and control systems. It combines gate signal distribution with bridge status monitoring.

Its VME architecture also supports integration with compatible GE control platforms. Therefore, it remains a useful spare part for legacy industrial equipment.

We supply GE DS200FCGDH1BBA for automation maintenance and replacement projects. We can also support sourcing requirements for GE Mark V, LCI, and related industrial control components.

————————————————————————————————————————————————————————————————————————
