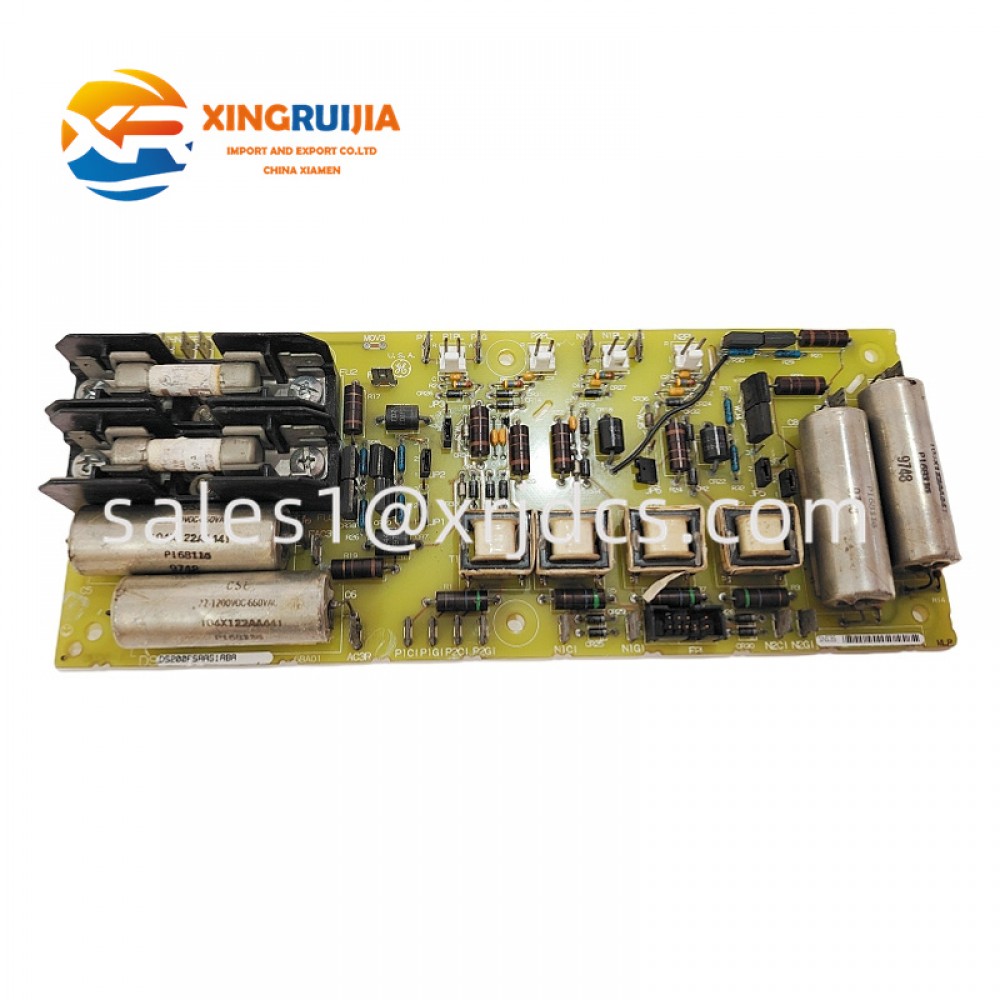

GE DS200FSAAG1ABA

Overview

GE DS200FSAAG1ABA is an industrial automation and control system module produced by General Electric (GE). It is part of the Mark V series control systems, mainly used to provide excitation current, signal amplification, and protection functions. It is widely applied in the power industry and industrial automation fields.

Parameters

• Dimensions and Weight: The dimensions are approximately 25.4 cm × 10.2 cm × 3.5 cm (some data mentions 16 cm × 16 cm × 12 cm), and the weight is about 0.4 kg or 0.8 kg.
• Electrical Parameters: Supports 24VDC or 125VDC input voltage, with an output voltage of 24VDC and a maximum output current of 10A.
• Connectors and Fuses: Includes 5 jumpers, 1 10-pin connector, 2 fuses (600V/30A), and multiple test points.

Product Features

• Functions: Provides excitation current, signal amplification, signal isolation, overcurrent/overvoltage protection, and supports the stable operation of industrial automation control systems.
• Design: Adopts a modular design, supporting high reliability and easy maintainability in industrial environments, and is equipped with anti-static protection measures (such as transportation in sealed bags and anti-static wristbands).

Structure and Composition

• Physical Characteristics: Consists of 5 jumpers, 1 10-pin connector, 2 fuses, and multiple test points, with a compact design and complete functions.
• Installation and Maintenance: Attention should be paid to electrostatic protection. Anti-static wristbands must be worn during installation to avoid electrostatic damage to the circuit board.

Application Fields

• Main Applications: Power industry (such as power plants, wind power generation, gas turbines), industrial automation control systems (such as Mark VI/Mark VIe systems), industrial process control, etc.

Installation and Maintenance

• Installation Precautions: Sealed bags must be used for anti-static purposes during transportation and installation. Anti-static wristbands should be worn before installation to avoid static accumulation.
• Maintenance Recommendations: Regularly check connectors, fuses, and test points to ensure the stable operation of the equipment.

————————————————————————————————————————————————————————————————————————
