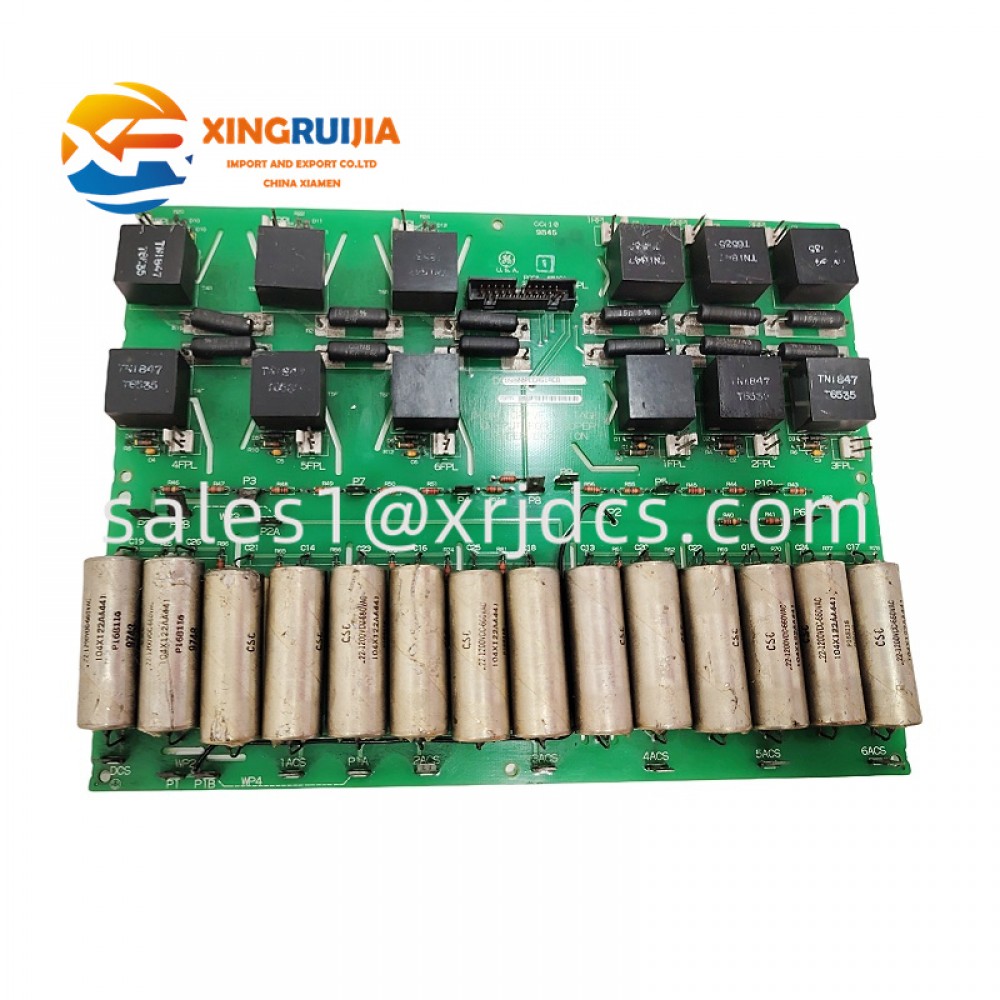

GE DS200PCCAG1ACB

I. Overview

The GE DS200PCCAG1ACB is a core component in the General Electric (GE) Mark V series control systems. It belongs to the Power Connect Card (PCCA) category, primarily responsible for providing power support to drives and enabling signal transmission and control between drives and SCR power bridges. Its design goal is to ensure high reliability and precise control of industrial automation systems, with wide applications in power plants, industrial automation, petrochemicals, and other fields.

II. Parameters

• Input Voltage: 24V DC
• Output Current: 10A
• Operating Temperature Range: -40℃ to +70℃
• Relative Humidity Range: 5% to 95% (non-condensing)
• Communication Interfaces: RS485, Ethernet, Modbus, etc.
• Dimensions: 120mm × 80mm × 40mm
• Product Revision Versions: Grade A functional revision, Grade C functional revision, Grade B appearance revision

III. Product Features

• High Reliability and Durability
  • Adopts industrial-grade design, suitable for harsh environments, and supports operation within a wide temperature range.
  • No fuses, LED indicators, test points, or switches; fault diagnosis and configuration are only realized through four configurable jumpers.
• Modular Design
  • Easy to install and maintain, supporting quick replacement and flexible configuration.
  • Provides multiple communication interfaces (such as RS485, Ethernet) for easy integration with other devices.
• Fault Diagnosis and Protection Functions
  • Configures drive behavior through jumpers, supporting adjustment of capacitor operation and voltage feedback channels.
  • Built-in overcurrent protection (line fuses) to ensure system safety.
• Compatibility
  • Compatible with GE Mark V series SDCI power boards, enabling seamless integration into drive systems.

IV. Structure and Composition

• Hardware Composition
  • Input/Output Terminals: Used for connecting power supplies and drives.
  • Jumper Configuration: Four configurable jumpers for adjusting drive behavior (such as capacitor operation, voltage feedback).
  • Fuse-less Design: Relies on external fuses or line protection.
• Functional Modules
  • Serves as an intermediate component between the drive and the SCR power bridge, transmitting control signals and distributing power.
  • Supports pulse transformer isolated gate drive signals without the need for suppressors or attenuation coils.

V. Application Fields

• Power Plants
  Used in electro-hydraulic control (EHC) systems of gas turbines, steam turbines, and wind turbines to ensure high precision and stability.
• Industrial Automation
  Widely applied in motor control systems, production line equipment (such as robots, conveyors), and process control (such as chemical and petroleum industries).
• Hydropower Stations
  Realizes precise control and protection in hydropower generation equipment.
• Medical Equipment
  Used in control systems of medical equipment, such as ventilators and monitors.

VI. Installation and Maintenance

• Installation Requirements
  Must be operated by professionals or qualified technicians, usually installed in the circuit board cabinet of Mark V series drives.
  Follow the manufacturer's guidelines to ensure correct configuration of power connections and communication interfaces.
• Maintenance Recommendations
  Regularly check power supply and communication connections to ensure normal operation of the module.
  Use the control panel's diagnostic function to quickly locate drive faults.
  Maintain environmental conditions (such as temperature, humidity) within the specified range to avoid overload or short circuit.

————————————————————————————————————————————————————————————————————————
