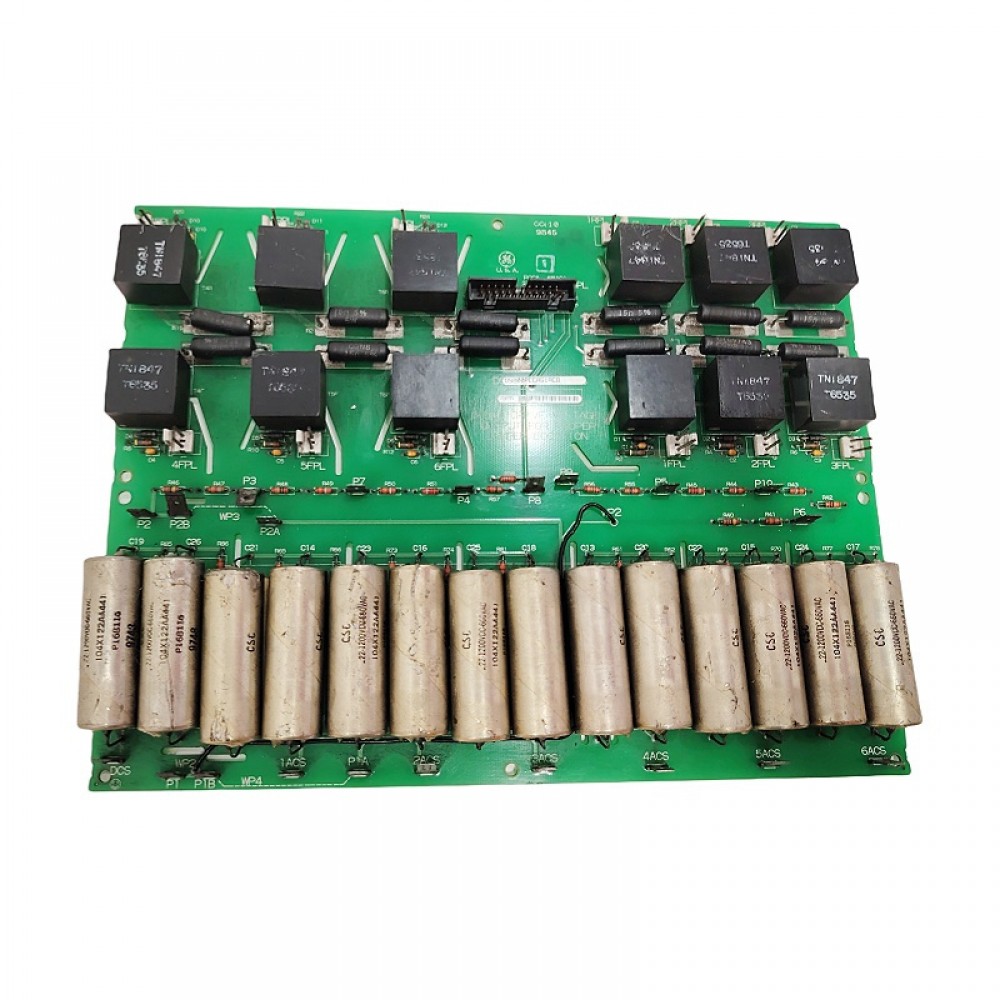

GE DS200PCCAG4A

Overview

The GE DS200PCCAG4A belongs to the PCCA Power Connect Card family used in compatible GE Mark V drive systems. Its primary role is to provide an interface between the drive and the SCR power bridge, supporting the electrical connections needed for power conversion and drive control.

For maintenance teams operating legacy industrial equipment, the board can serve as a replacement component when the installed hardware matches the required configuration.

Main Functions

• Provides an interface between the drive and SCR power bridge.

• Routes selected control and feedback signals.

• Supports electrical connections within compatible drive assemblies.

• Helps maintain integration between control electronics and power circuitry.

• Offers a replacement option for existing Mark V installations.

Product Details

• Brand: General Electric

• Series: Mark V

• Board category: Power Connect Card

• Functional code: PCCA

• Group designation: G4

• Revision: A

• Primary application: Industrial drive power interface

The exact electrical ratings, connector assignments, and configuration requirements should be verified against the applicable GE documentation for the installed drive.

Structure and Integration

The board uses a printed circuit assembly with connectors and electrical components for interfacing with associated drive hardware. Correct installation depends on the drive model, cabinet arrangement, and designated connection points.

It is important to check the original board label and wiring documentation before replacement. Similar-looking cards may have different electrical functions or connection requirements.

Industrial Applications

The board is intended for compatible GE drive systems used in industrial machinery and power-related applications. It supports the connection between control circuitry and the power bridge, helping maintain the required drive architecture.

Replacement and Service

Inspect the board for connector damage, contamination, or signs of overheating before installation. Qualified technicians should verify wiring and carry out functional checks after replacement. Always follow the equipment manufacturer's safety instructions when working around power electronics.
