GE DS200RCTBG1ABA

Product Overview

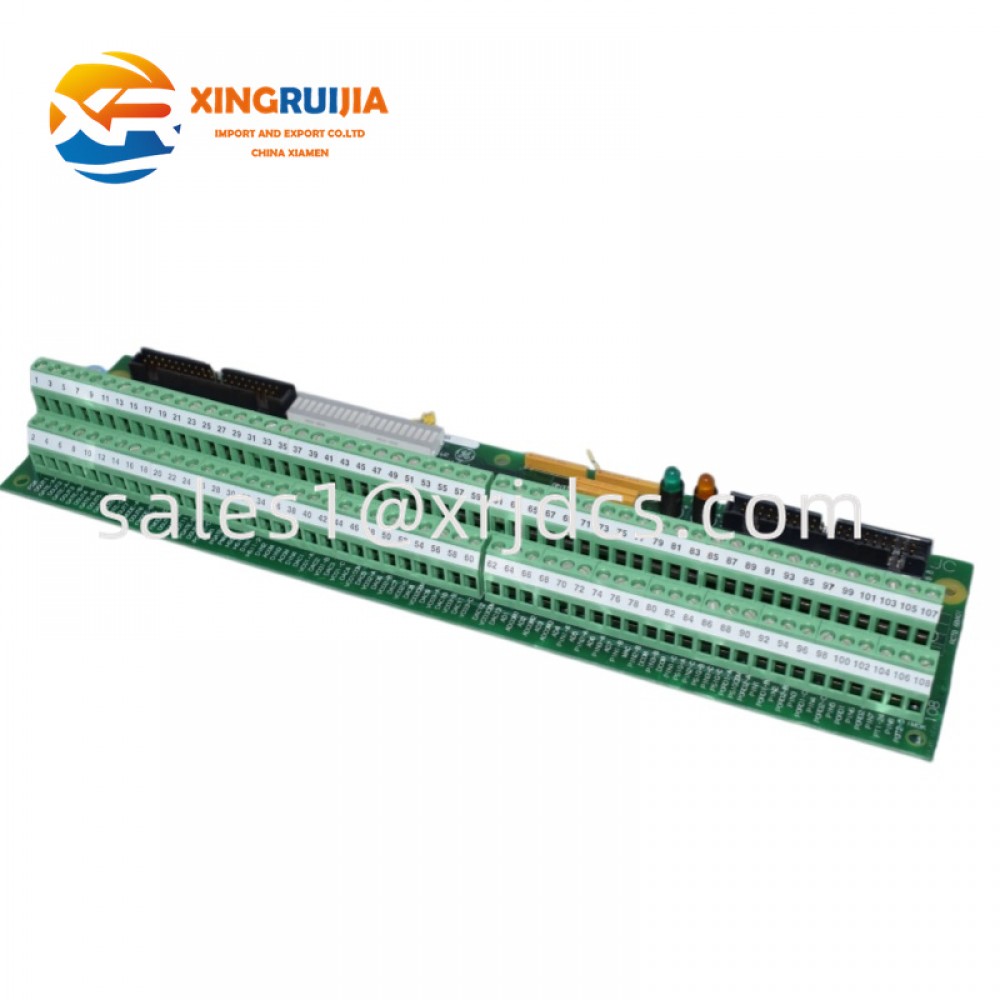

The GE DS200RCTBG1ABA is a Reactive Compensation Terminal Board associated with the GE Mark V Speedtronic control platform. It belongs to the DS200 family of industrial control circuit boards and provides a dedicated interface for reactive compensation-related electrical connections within compatible GE systems. Industrial product references identify this exact model as a Mark V terminal board and specifically describe it as a Reactive COMP Terminal Board.

The board is primarily relevant to legacy GE turbine and industrial control installations where reliable signal and electrical termination is required.

Main Specifications

Item	Description
Manufacturer	General Electric
Model	DS200RCTBG1ABA
Product Family	DS200
Control Platform	Mark V Speedtronic
Board Type	Reactive Compensation Terminal Board
Functional Group	Terminal / Interface Board
Application	Industrial control and turbine systems
Configuration	G1ABA
Installation	GE control cabinet

The DS200RCTBG1ABA should be identified by its complete part number because the DS200 family contains many boards with similar numbering but different functions. The RCTB family itself includes other revisions, such as DS200RCTBG1AAA, which should not automatically be treated as interchangeable.

Functional Characteristics

The main purpose of the board is to provide an organized interface for electrical signals associated with the reactive compensation section of the control system.

As a terminal/interface board, it is not intended to perform the same processing functions as a controller or drive-control card. Instead, it supports the surrounding system by providing structured connections between internal control equipment and associated external circuits.

This type of architecture helps simplify cabinet wiring and makes field-level signal inspection more manageable during commissioning and maintenance.

Hardware Design

The DS200RCTBG1ABA uses a printed-circuit-board construction suitable for installation inside industrial control equipment. Its terminal-oriented design allows associated electrical connections to be grouped on a dedicated board rather than distributed across numerous individual wiring points.

The G1ABA designation is important when identifying the correct replacement. Industrial listings distinguish it from the G1AAA configuration, even though both belong to the RCTB family.

Application Areas

The board can be relevant to compatible GE Mark V installations used in:

• Gas turbine control
• Steam turbine systems
• Generator control equipment
• Power-generation facilities
• Industrial turbine applications
• Legacy GE Speedtronic systems
• Reactive compensation-related control circuits

For older installations, retaining the original board architecture can help reduce engineering changes and minimize system downtime.

Installation and Maintenance

Before replacing the DS200RCTBG1ABA, technicians should record the existing wiring arrangement, terminal positions, board location, and associated equipment. The complete part number should be checked against the original board before installation.

During maintenance, inspect terminal connections and surrounding wiring for looseness, oxidation, overheating, contamination, or mechanical damage. If an abnormal reactive compensation signal is observed, the associated field devices, wiring, and upstream control components should also be checked.

Because the board operates as part of industrial control equipment, installation and testing should be performed by qualified personnel according to the applicable GE system documentation.
