GE DS200SDCCG1

Introduction to the SDCC

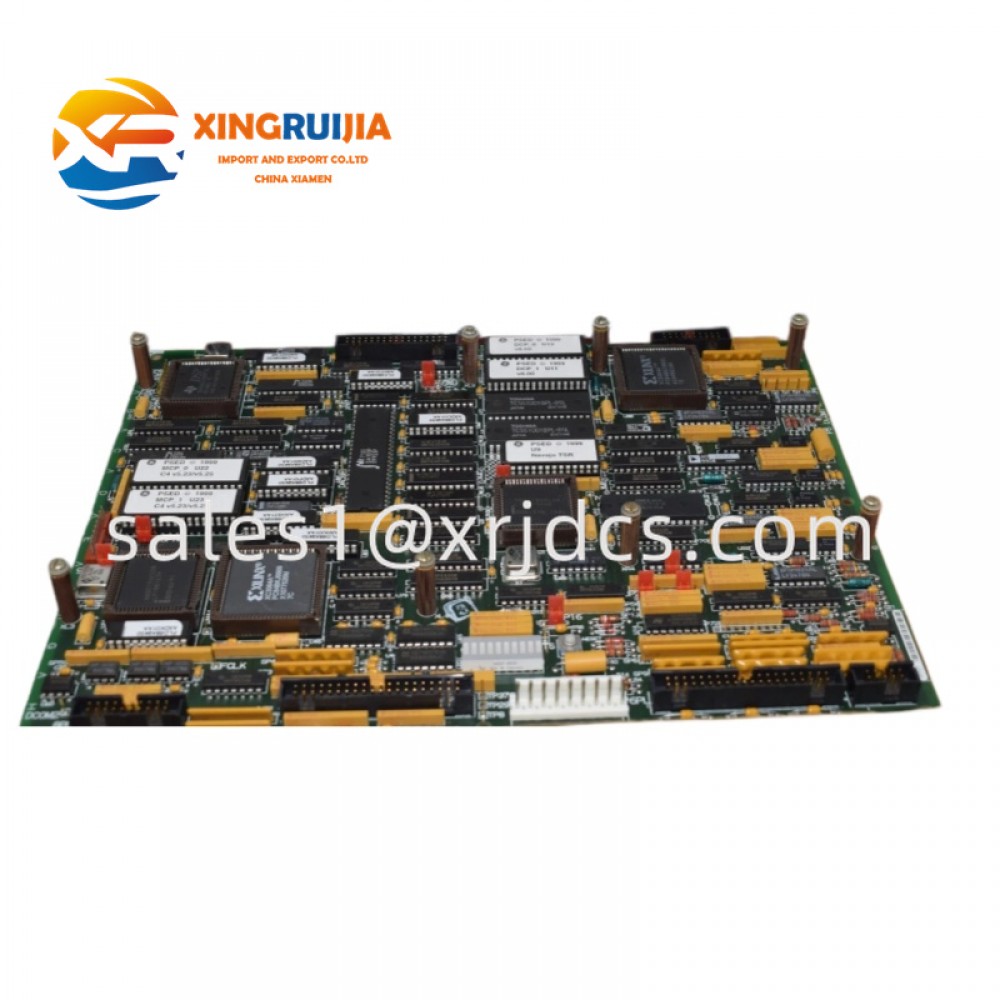

The GE DS200SDCCG1 is a Mark V Drive Control Card designed to perform drive-control and signal-processing functions within compatible GE industrial control equipment. As an SDCC board, it combines processing resources, memory, and interface circuitry on a single PCB.

The board belongs to the DS200 Mark V family, a legacy GE control platform based on Speedtronic technology. The DS200SDCCG1 is listed as the original or base SDCC configuration, with later variants carrying additional revision identifiers.

Hardware Architecture

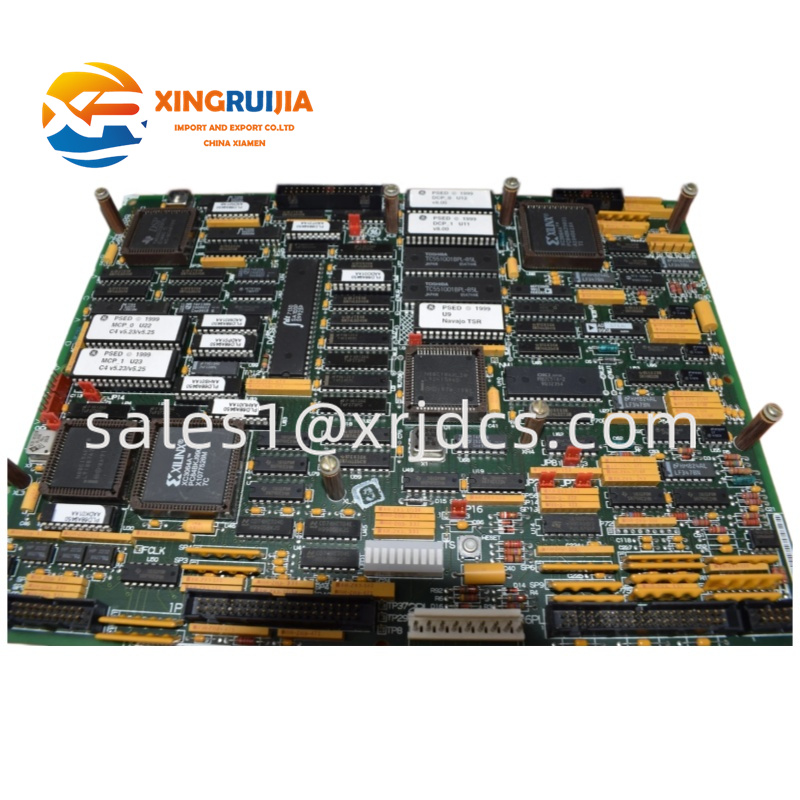

At the heart of the DS200SDCCG1 is a multi-processor architecture. Available technical references identify three 16-bit microprocessors together with RAM that can be accessed by multiple processors. This arrangement provides the processing resources required for drive control, motor-related functions, and associated I/O handling.

The board also incorporates interface circuitry for processing drive and motor signals and customer I/O. Multiple connectors provide communication paths to other boards and optional expansion cards within the drive system.

What Makes It Useful

The DS200SDCCG1 offers several characteristics that make it valuable for legacy-system maintenance:

• Centralized drive-control processing
• Multi-processor hardware architecture
• Integrated RAM for processor access
• Interfaces for drive, motor, and customer signals
• Expansion capability through auxiliary boards
• Compatibility with the GE Mark V DS200 architecture
• Diagnostic facilities for maintenance and troubleshooting

Optional auxiliary cards can extend the board's capabilities, including LAN communication and additional signal-processing functions.

Typical Industrial Role

Within a compatible GE drive installation, the SDCC acts as an important processing and coordination board rather than simply functioning as a passive interface. It receives and processes control-related signals and works with other boards to support the overall drive system.

The Mark V family has been used in industrial turbine-control environments involving gas, steam, and wind turbine applications, while related DS200 drive boards support associated drive-control functions.

This makes the DS200SDCCG1 particularly relevant to operators maintaining older GE automation and turbine-control equipment.

Replacement Considerations

When sourcing a replacement, always verify the complete part number printed on the board. The DS200 family includes numerous SDCC variants, including DS200SDCCG1A, DS200SDCCG1AAA, DS200SDCCG1AEC, DS200SDCCG1AFD, and other configurations. These should not automatically be treated as identical simply because they share the SDCC designation.

Before installation, record cable positions, jumper settings, and any attached auxiliary boards. The replacement PCB should be handled using suitable ESD protection, and the installation should follow the applicable GE documentation.

Maintenance Notes

For troubleshooting, technicians can inspect board connections, configuration settings, associated auxiliary cards, and system signals before concluding that the SDCC itself has failed. Where supported by the particular board revision, onboard diagnostic indicators and test points can also assist qualified service personnel during fault investigation.

For long-term operation, keeping the control cabinet clean and dry, maintaining proper cooling, and checking connectors for looseness or oxidation can help reduce avoidable control-board problems.

The GE DS200SDCCG1 remains a significant replacement and maintenance component for compatible Mark V DS200 drive-control systems, especially where maintaining the existing GE control architecture is preferable to a complete system modernization.
