Overview

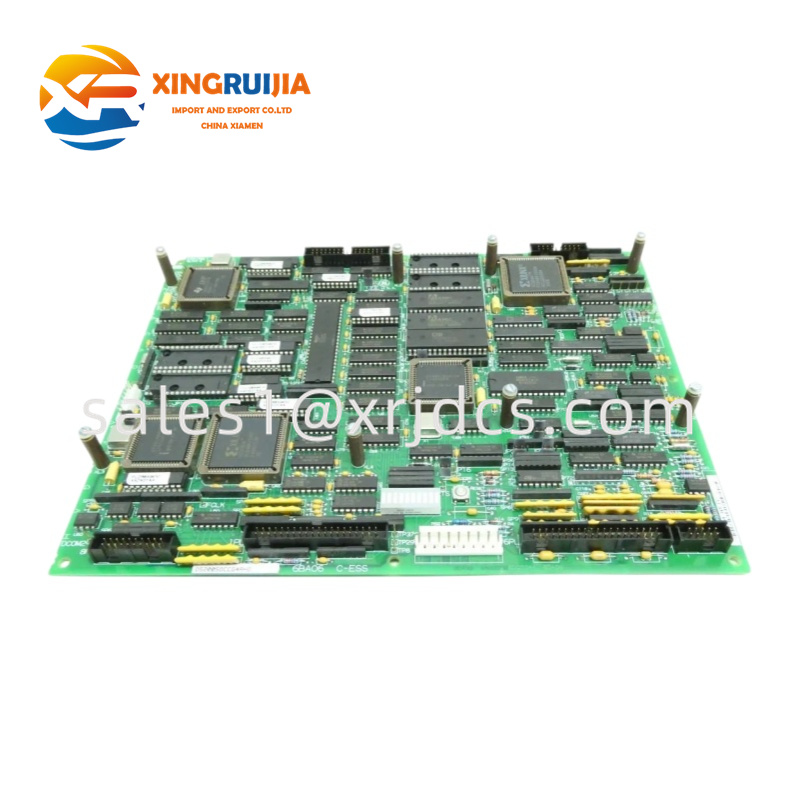

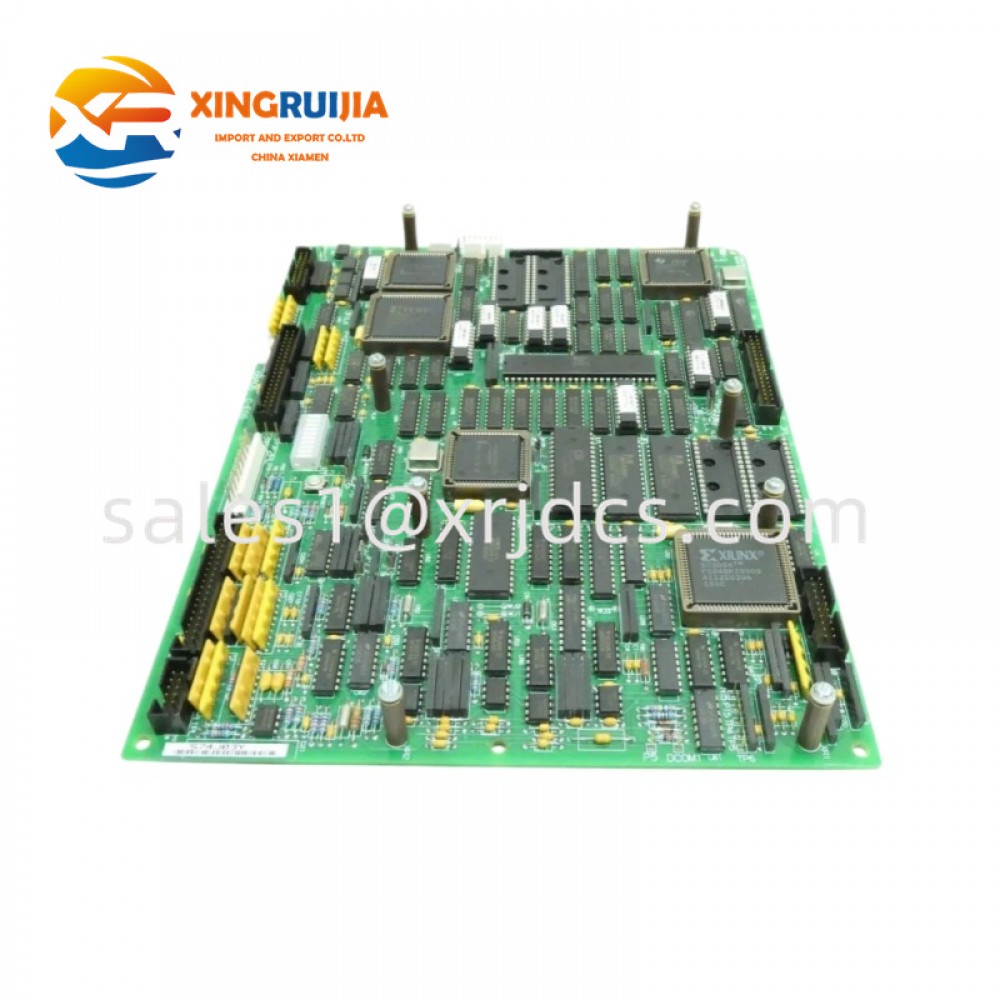

The GE DS200SDCCG4AHD is a Drive Control Board (SDCC) used in the Mark V Speedtronic turbine control system developed by General Electric. It functions as the primary controller for drive operations, managing speed, torque, and overall turbine performance in industrial automation environments.

This board is widely deployed in gas, steam, and wind turbine systems where precise control and high reliability are essential.

---

Core Functions

The DS200SDCCG4AHD plays a central role in turbine and drive control systems:

• Drive Control Processing: Executes core control algorithms for turbine drive systems
• Multi-Processor Architecture: Uses three microprocessors to handle parallel control tasks
• Real-Time Data Handling: Ensures fast response for speed and torque regulation
• Configuration Storage: Utilizes EPROM modules for system and site-specific parameters
• System Coordination: Communicates with other Mark V modules for integrated control

---

Technical Specifications

Parameter	Specification
Model	DS200SDCCG4AHD
Product Type	Drive Control Board
Series	Mark V Speedtronic
Functional Acronym	SDCC
Microprocessors	3 (DCP, MCP, CMP)
Memory	Shared RAM access
Configuration Storage	5 EPROM slots
PCB Coating	Standard industrial coating
Revisions	A (Primary), H (Secondary), D (Artwork)
Manual Reference	GEI-100029

---

Structure & Composition

The DS200SDCCG4AHD is a high-density printed circuit board (PCB) designed for industrial control environments. Its internal structure includes:

• Three dedicated microprocessors for distributed processing
• Shared RAM architecture for efficient data exchange
• EPROM sockets for configuration transfer and storage
• Communication interfaces for system integration
• Industrial-grade components with protective PCB coating

This architecture allows the board to execute complex control logic with high speed and stability.

---

Key Features

• Triple Microprocessor Design: Enables parallel processing and high performance
• High Reliability: Designed for continuous operation in turbine control systems
• Flexible Configuration: Supports both factory and site-defined EPROM settings
• Advanced Control Capability: Handles speed, torque, and system dynamics
• Robust Industrial Design: Resistant to harsh environments and electrical noise

---

Application Areas

The DS200SDCCG4AHD is widely used in:

• Gas turbine control systems
• Steam turbine automation
• Wind turbine drive systems
• Power generation plants
• Heavy industrial automation

It is especially critical in applications requiring precise drive control and real-time response.

---

Installation & Maintenance

Installation:

• Installed within Mark V control racks
• Requires proper handling of EPROM modules to avoid static damage
• Configuration via serial interface and engineering tools

Maintenance:

• Regular inspection of connectors and modules
• Careful handling during replacement (anti-static precautions required)
• Transfer of EPROM chips when replacing boards
• Periodic system diagnostics and firmware checks

---

Advantages

• High processing capability for complex control tasks
• Reliable operation in mission-critical turbine systems
• Scalable and configurable for different applications
• Proven performance within GE Mark V systems

---

Summary

The GE DS200SDCCG4AHD Drive Control Board is a core component of the Mark V Speedtronic system, delivering advanced control capabilities through its multi-processor design and robust architecture. It ensures stable and efficient turbine operation, making it indispensable in modern industrial power and automation systems.

————————————————————————————————————————————————————————————————————————
