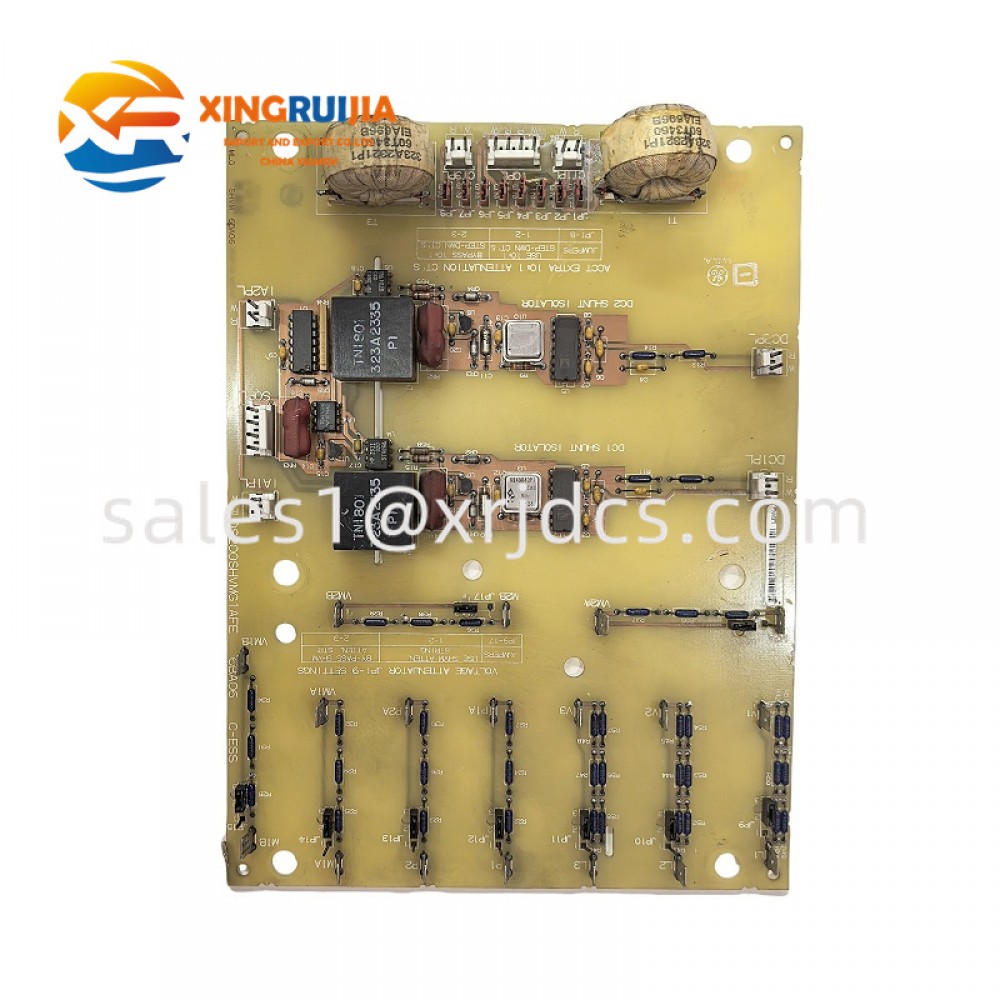

GE DS200SHVMG1AFE

I. Overview

The GE DS200SHVMG1AFE is a critical component of industrial automation control systems manufactured by General Electric (GE). It is widely used in the Mark V and Mark VIe series of control systems. Its core functions include providing high-performance signal processing, control, and communication capabilities, making it suitable for fields such as industrial automation, power control, and robot systems. This device supports multiple industrial protocols (e.g., Modbus, PROFIBUS) and boasts high reliability, modular design, and wide compatibility.

II. Parameters

Basic Parameters

• Model: DS200SHVMG1AFE
• Type: High-voltage M-type frame interface board, Digital Signal Processor (DSP) module, data acquisition module
• Manufacturer: General Electric (GE)
• Origin: United States

Electrical Parameters

• Input voltage: 220V AC (some models support 230V AC)
• Output voltage: 0-220V AC
• Output current: 5A
• Frequency range: 0-400Hz (or 0-500kHz differential frequency output)

Physical Parameters

• Size: 12-slot rack (specific dimensions vary by model, e.g., 16cm × 16cm × 12cm)
• Weight: Approximately 2kg (0.34kg for some models)
• Operating temperature: -20°C to +60°C (some models support -20°C to +100°C)

Communication and Control

• Communication interfaces: Supports RS485, Ethernet, serial communication
• Control modes: Speed control, torque control
• Speed regulation range: 1:1000

IV. Structure and Composition

Core Components

• High-voltage M-type frame interface: Connects SCR bridges, DCFB/SDCI boards, and PCCA cards
• Signal conversion circuit: Converts -500 to 500mV shunt signals into 0-500kHz differential frequency outputs
• Current transformer: Provides 10:1 current attenuation, with an optional bypass for users

Physical Structure

• Size: 12-slot rack with a compact design
• Protection class: IP20, suitable for indoor installation

V. Application Fields

Industrial Automation

• Production line control, mechanical equipment monitoring, process optimization
• Robot control systems, PLC/DCS system integration

Process Control

• Monitoring of temperature, pressure, and flow parameters in the chemical and power industries
• Inverter control and grid synchronization in wind and photovoltaic power plants

Heavy Equipment Control

• High-voltage M-type interface signal conversion for gas turbines and compressors

Other Fields

• Automation control systems in mining, aviation, and marine industries

VI. Installation and Maintenance

Installation Requirements

• Correct connection: Ensure firm electrical connections with other parts of the system to avoid loosening or poor contact
• Environmental adaptability: Must meet requirements for temperature, humidity, dustproofing, and waterproofing

Maintenance Recommendations

• Regular inspection: Check the status of jumpers, connectors, and fuses
• Data backup: Regularly back up collected data to prevent loss
• Fault diagnosis: Perform remote monitoring via RS485 and Modbus protocols

Warranty and Services

• Warranty period: 1 year
• After-sales service: Provide lifetime free software upgrades and technical support

————————————————————————————————————————————————————————————————————————
