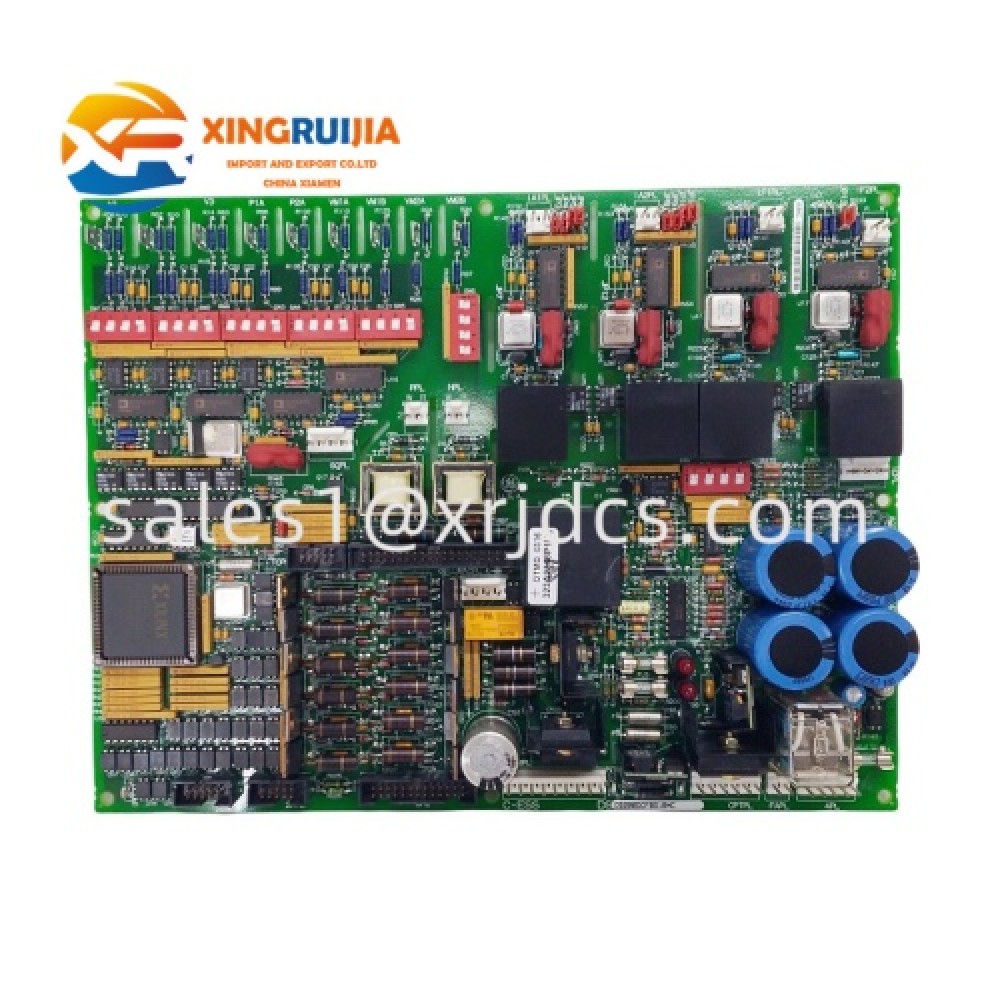

GE DS200TBCAG1A

Overview

Temperature monitoring helps protect turbine equipment and improve maintenance planning. The GE DS200TBCAG1A is a TBCA RTD termination board used in the Mark V SPEEDTRONIC control platform. It provides the connection point for field-mounted resistance temperature detectors and transfers their signals to compatible analog processing hardware.

Rather than performing the main measurement calculations itself, the board primarily handles field signal termination and routing. This arrangement supports organized wiring and dependable communication between temperature sensors and the turbine control system.

Functional Design

The board features two terminal blocks and two 50-pin ribbon-cable connectors. It supports up to 30 RTD input channels, arranged in two groups of 15.

Its principal functions include:

• Connecting RTD sensor wiring to the control cabinet.

• Routing the first group of temperature signals through the JCC connector.

• Routing the second group through the JDD connector.

• Supporting temperature monitoring through compatible TCCA hardware.

• Providing a structured interface for inspection and troubleshooting.

Product Data

• Brand: General Electric

• Control platform: Mark V SPEEDTRONIC

• Board category: RTD input termination

• Functional identifier: TBCA

• Input capacity: 30 RTD channels

• Terminal arrangement: Two blocks with 90 terminals each

• Cable interfaces: JCC and JDD, both 50-pin

Industrial Applications

This board is used in turbine control installations where temperature feedback supports equipment supervision and maintenance decisions. It can connect RTD sensors monitoring bearings, lubrication systems, and other auxiliary equipment, subject to the installed system design.

Replacement and Maintenance Advice

Before replacing the board, confirm the full part number, revision, and position within the control system. Record every terminal assignment and connector location before disconnecting cables. After installation, verify sensor wiring and signal readings according to the approved maintenance procedure.
