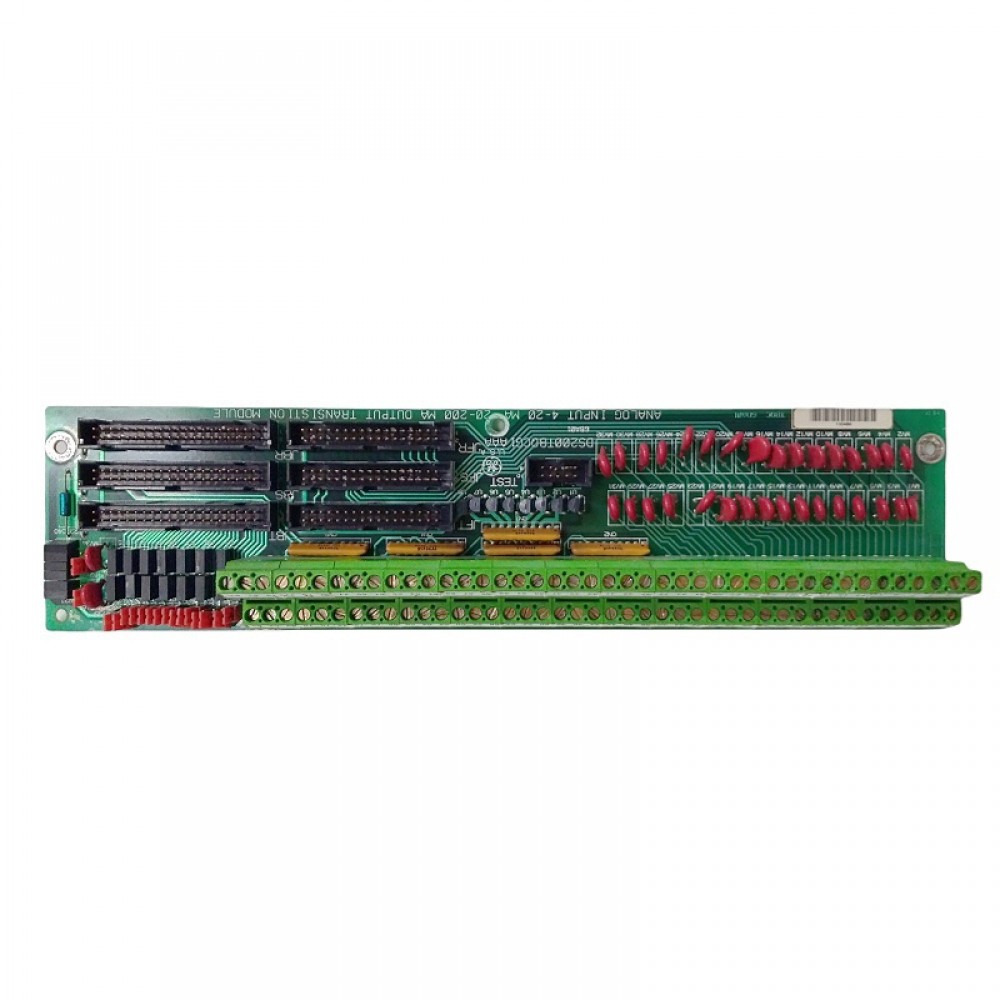

GE DS200TBQCG1A

Overview

Accurate analog signal handling is essential for reliable turbine operation. The GE DS200TBQCG1A is an RST analog termination board within the Mark V SPEEDTRONIC control platform. It connects field instrumentation signals to the corresponding TCQA processing boards and helps organize analog input and output wiring.

The board supports milliamp signals and LVDT/R position inputs. It also provides configurable output ranges for compatible applications, allowing the control system to interface with different field devices according to the approved configuration.

Main Functions

• Receives 4–20 mA analog input signals.

• Routes LVDT/R position feedback signals to compatible TCQA boards.

• Supports milliamp output signal connections.

• Provides organized field termination through two terminal blocks.

• Uses hardware jumpers to configure selected output current ranges.

Hardware Structure

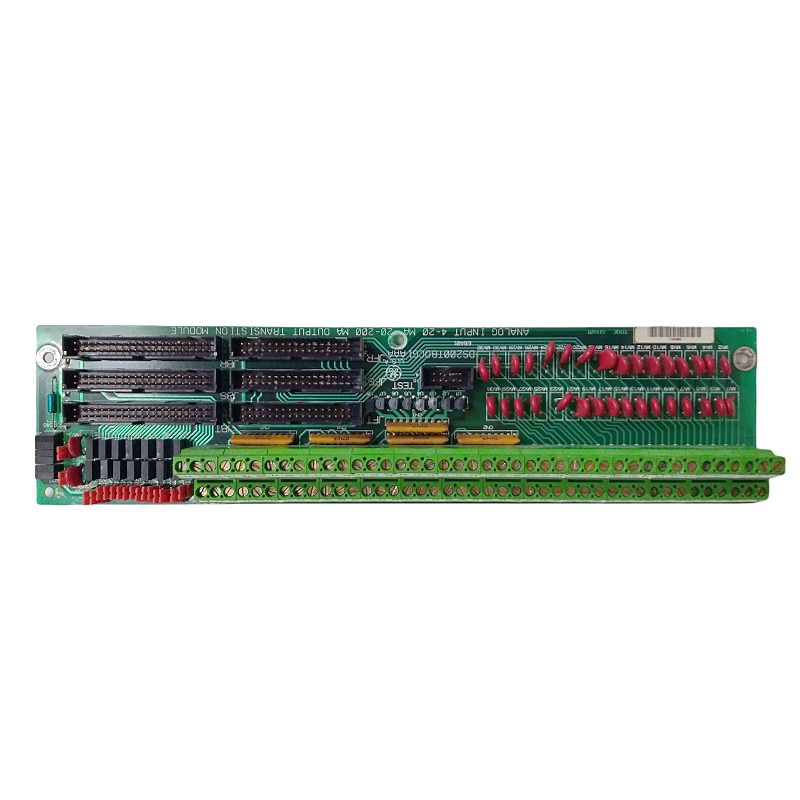

The assembly consists of a printed circuit board, two terminal blocks, multiple board connectors, and configuration jumpers. Each terminal block contains 83 connection points, providing 166 terminals in total.

Three 40-pin connectors and three 34-pin connectors support connections with associated control hardware. The JBR interface handles milliamp input and output signals, while JFR supports LVDT/R position input signals. Other connectors may remain unused in typical configurations.

Product Details

• Brand: General Electric

• System: Mark V SPEEDTRONIC

• Category: RST analog termination board

• Functional identifier: TBQC

• Signal types: 4–20 mA and LVDT/R position inputs

• Terminal capacity: 166 connection points

• Configuration method: Hardware jumpers

Industrial Applications

Typical applications include turbine instrumentation, valve-position feedback, and analog signal interfacing in power plants and industrial energy facilities. The board supports communication between field devices and the turbine control system's analog processing hardware.

Replacement Guidance

Before ordering, verify the full part number and hardware revision. Check the required current range and terminal assignments against the installed system documentation. After replacement, inspect wiring and verify signal operation before returning the equipment to service.
