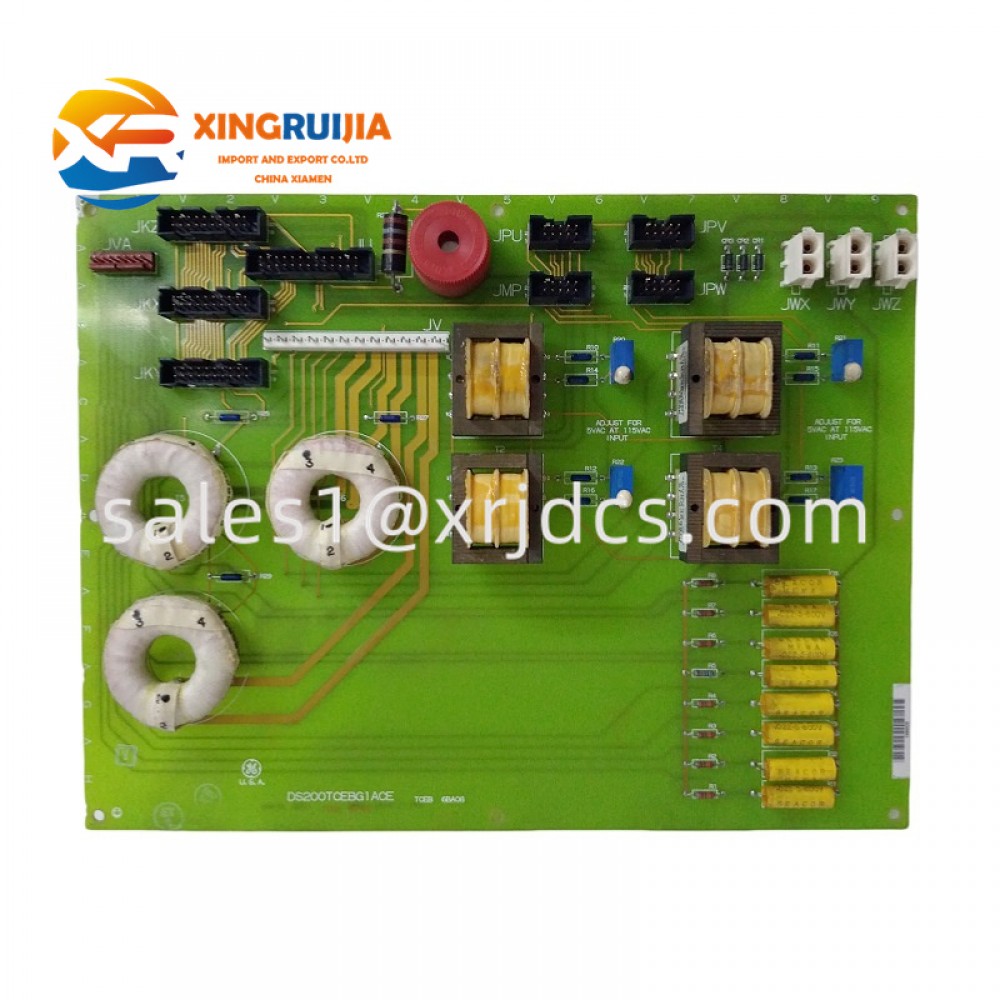

GE DS200TCEBG1ACE

1. Overview

The GE DS200TCEBG1ACE is a high-performance communication circuit board belonging to the Mark V series, which is widely used in industrial automation and control systems. It supports multiple communication protocols, such as Modbus TCP, Profibus DP, EtherCAT, etc., enabling connection to various field devices and realizing efficient data transmission and communication between different system components.

2. Specifications

• Operating Voltage: 24VDC
• Communication Interfaces: Ethernet, RS232, RS485
• Operating Temperature Range: -20°C to 60°C
• Storage Temperature Range: -40°C to +125°C
• Dimensions: 100mm x 100mm x 10mm
• Weight: 50g
• Memory Capacity: 512 KB RAM, 2 MB Flash

3. Product Features

• High-Performance Processor: Adopts a 32-bit RISC processor, delivering fast response and strong processing capabilities.
• High Reliability: Performs excellently in complex industrial environments with excellent anti-interference performance.
• High Integration: Compact size, facilitating maintenance and upgrades.
• Strong Compatibility: Supports multiple communication protocols, enabling easy integration with other systems.
• Efficient Expandability: Expandable digital input/output channels to meet complex control and monitoring requirements.

4. Structure and Composition

• Connectors: Include 3 bayonet connectors (JWX, JWY, JWZ), 4 signal transformers, 1 26-pin connector, 4 10-pin connectors, and 3 20-pin connectors.
• Communication Interfaces: Support multiple communication interfaces such as RS485 and Ethernet.
• Power Module: Input voltage range of 12-48VDC, output of 5VDC, and maximum output current of 10A.

5. Application Fields

• Power Industry: Equipment status monitoring and control in power plants and substations.
• Industrial Automation: Automated control systems in industries such as machinery manufacturing, food processing, packaging, printing, textiles, and logistics.
• Wind Power Generation and Water Treatment: Monitoring and controlling the operating status of wind turbines and water treatment equipment.
• Gas Turbine Control Systems: Provides multiple communication interfaces, suitable for GE Speedtronic gas turbine control systems.

6. Installation and Maintenance

• Installation: Correctly insert the module into the control system slot and perform appropriate electrical wiring.
• Maintenance: Regularly inspect connectors and communication interfaces to ensure no looseness or damage; keep the equipment clean to prevent dust and moisture from affecting performance.
• Troubleshooting: Use the provided technical documents and tools for fault diagnosis and repair.

————————————————————————————————————————————————————————————————————————
