GE IS200ERDDH1ABA

Overview

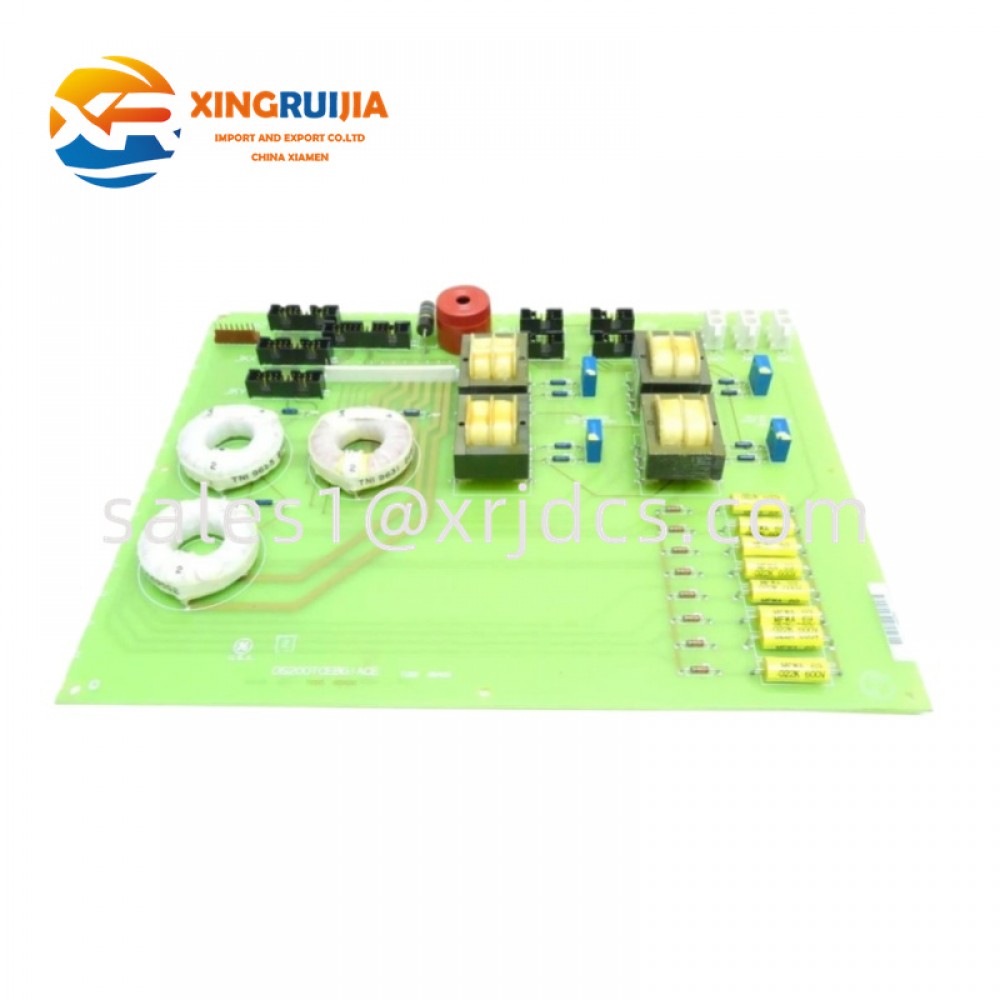

The GE DS200TCEBG1ACE is a multifunctional control and protection circuit board used in the Mark V Speedtronic turbine control system developed by General Electric.

This module is primarily known as an Emergency Overspeed (EOS) protection board while also serving as a communication and signal interface module, ensuring safe turbine operation by monitoring critical conditions and enabling rapid system response.

---

Key Features

• Emergency Overspeed Protection: Detects overspeed conditions and triggers immediate shutdown to prevent turbine damage
• Integrated Signal Processing: Handles PT/CT signal regulation and system feedback control
• High-Speed Data Communication: Supports reliable data exchange between system modules
• Robust Industrial Design: Engineered for harsh environments with strong noise immunity
• Modular Architecture: Allows easy replacement and integration into Mark V systems
• Multi-Connector Interface: Equipped with multiple pin connectors and transformers for flexible wiring

---

Technical Specifications

Parameter	Specification
Model	DS200TCEBG1ACE
Product Type	Emergency Overspeed / Communication Board
System Series	Mark V Speedtronic
Processor	Embedded microprocessor with PROM modules
Input Voltage	24 VDC (typical)
Output Voltage	5 VDC (typical)
Operating Temperature	-20°C to +60°C (typical)
Dimensions	Approx. 16 × 16 × 12 cm
Weight	~0.5–0.8 kg
Communication Interfaces	Ethernet / RS232 / RS485 (varies by configuration)

---

Structure & Composition

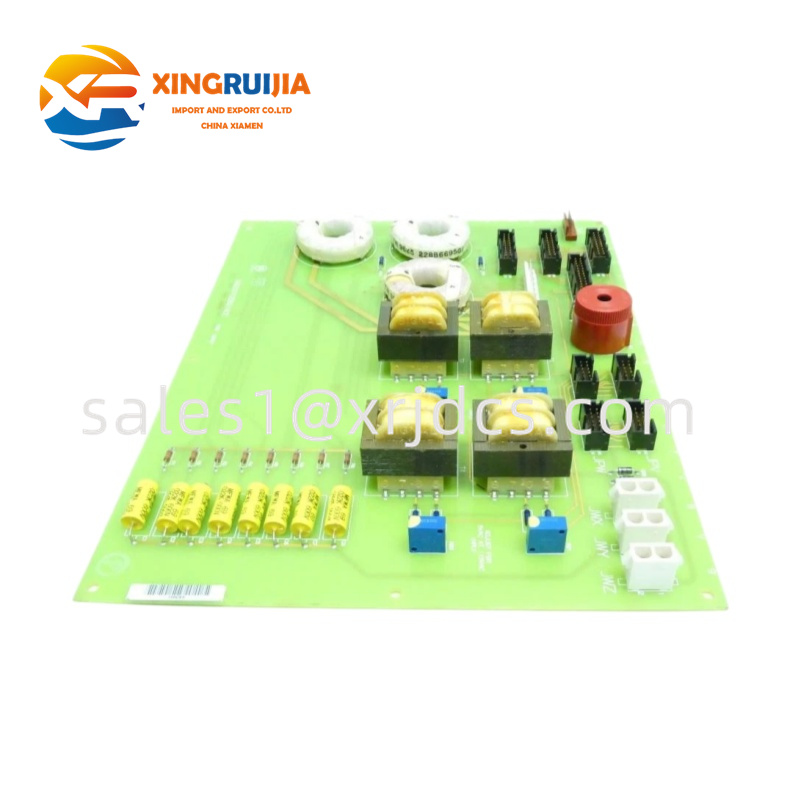

The DS200TCEBG1ACE is a high-density industrial PCB designed for turbine control applications. Its internal composition includes:

• Embedded microprocessor and PROM memory modules
• Signal transformers for voltage/current conditioning
• Multiple connectors (10-pin, 20-pin, and 26-pin interfaces)
• Protection components such as fuses and jumpers
• Backplane interface for system integration

This design ensures stable operation, high-speed processing, and reliable communication within the control system.

---

Functional Capabilities

The module performs several critical roles in turbine systems:

1. Overspeed Monitoring – Continuously tracks turbine speed and initiates shutdown if limits are exceeded
2. Signal Regulation – Processes CT/PT signals for accurate measurement and control
3. Alarm & Trip Logic – Activates alarms and protective shutdown sequences
4. Data Communication – Transfers operational data between system components
5. System Coordination – Works with other Mark V boards for integrated turbine control

---

Application Areas

The DS200TCEBG1ACE is widely used in:

• Gas turbine control systems
• Steam turbine automation
• Power generation plants
• Oil & gas processing facilities
• Heavy industrial drive systems

It is particularly critical in high-speed rotating machinery protection, where overspeed events can cause catastrophic damage.

---

Installation & Maintenance

Installation:

• Mounted inside Mark V control cabinets
• Requires precise connector alignment and secure fastening
• Proper grounding and shielding are essential

Maintenance:

• Inspect connectors, fuses, and wiring regularly
• Ensure correct labeling of cables before replacement
• Replace with identical model to maintain compatibility
• Follow anti-static handling procedures

---

Additional Advantages

• Enhances turbine safety with rapid protection response
• Improves system reliability through integrated monitoring
• Reduces downtime with modular replacement design
• Supports long lifecycle operation in industrial environments

---

Summary

The GE DS200TCEBG1ACE is a critical overspeed protection and communication module within the Mark V Speedtronic system. Combining real-time monitoring, signal processing, and high-speed communication, it ensures safe and efficient operation of turbine systems in demanding industrial applications.
