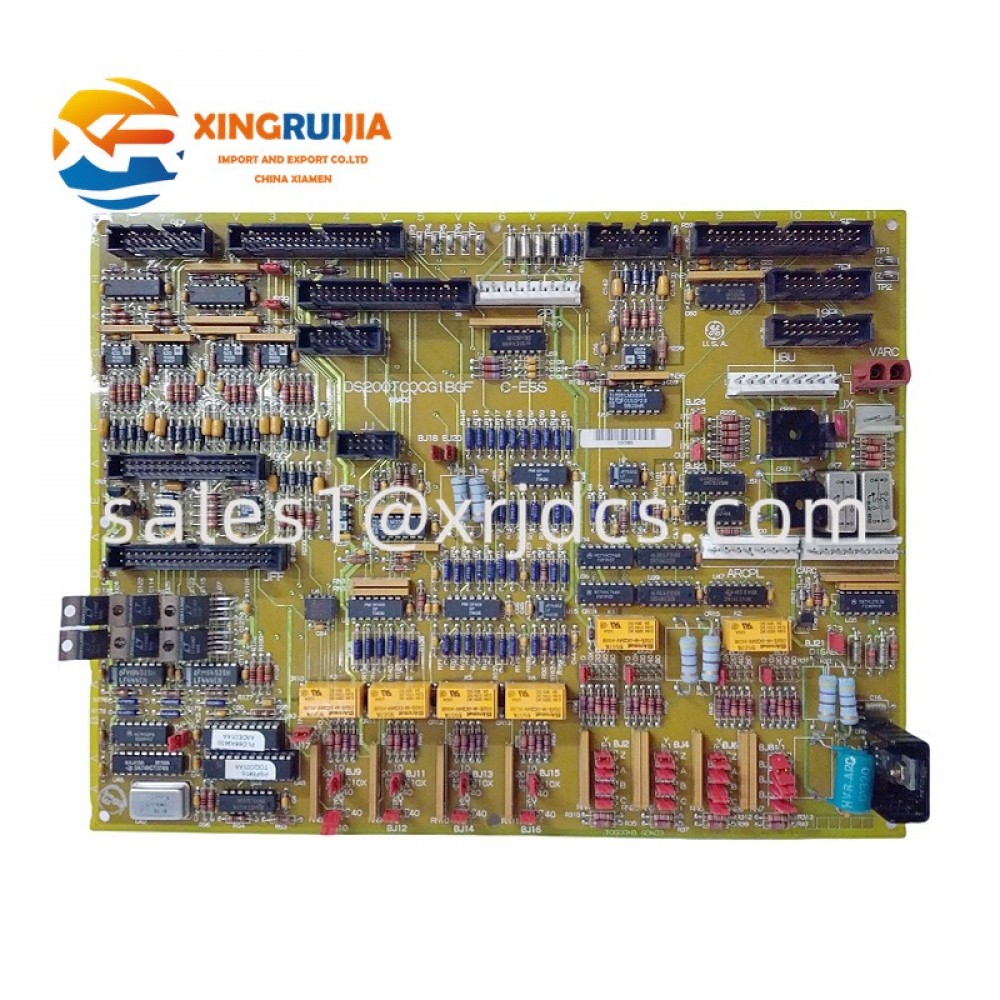

GE DS200TCQCG1BGF

Overview

The GE DS200TCQCG1BGF is an overflow protection module specifically designed for the GE RST (Relay and Switching Technology) system, and it serves as a critical component of the Mark V series. By monitoring and regulating current/voltage, this module prevents overflow issues caused by system overload or abnormal fluctuations, ensuring the stable operation and safety of industrial control systems. It is widely used in scenarios requiring high reliability, such as power generation, manufacturing, and transportation.

Parameters

• Model: DS200TCQCG1BGF
• Brand: GE (General Electric)
• Series: Mark V DS200
• Connectors:
  • 40-pin connector × 3 (IDs: JFF, JE, 6PL)
  • 34-pin connector × 3
  • 16-pin connector × 1 (ID: JC)
• Number of jumpers: 24
• LED indicators: 6 (for status monitoring)
• Operating voltage: 24VDC (refer to partial documents)
• Environmental adaptability: 0°C to 70°C, 20-80% humidity (no condensation)
• Weight: Approximately 1.263 kg (refer to partial documents)

Product Features

1. Core overflow protection function: Monitors system current/voltage in real time to prevent system damage caused by overload.
2. High-reliability design: Features a robust structure that adapts to industrial-grade environments, ensuring long-term stable operation.
3. Real-time status monitoring: Enables quick diagnosis of module status (e.g., functional abnormalities or faults) through LED indicators and test points.
4. Compatibility: Optimized specifically for the GE RST system, enabling seamless integration with the Mark V series control architecture.
5. Safety redundancy: Some models support dual-system monitoring (refer to the description of dual-system monitoring modules), enhancing the system's fault tolerance.

Structure and Composition

Core Components

• Connector array (40-pin/34-pin/16-pin): Used for signal transmission and system interconnection.
• Jumper configuration area (24 jumpers): Supports flexible parameter adjustment.
• Test points: Used for fault troubleshooting and performance verification.

Installation Design

• Equipped with 6 mounting holes; fixed in the drive cabinet via washers and screws. Note: Prevent metal parts from falling into the cabinet.

Status Indication

• 6 LED indicators (e.g., OK/RUN/MEM PROTECT) display the module's operating status.

Application Fields

• Power generation industry: Prevents overflow risks in gas turbine and steam turbine control systems to ensure stable power output.
• Manufacturing industry: Protects electrical control systems in automated production lines to avoid equipment damage caused by voltage fluctuations.
• Power transmission and distribution: Enables dual-system monitoring of high-voltage transmission lines and substations to ensure power grid reliability.
• Industrial automation: Provides overflow protection in process control systems to maintain production continuity.

Installation and Maintenance

Installation Precautions

1. Operations must be performed by qualified maintenance personnel to ensure safety in high-voltage environments (e.g., dry ground, removal of ungrounded power cables, and equipped with emergency power-off devices).
2. Use matching washers and screws for fixation; avoid over-tightening to prevent damage to the circuit board.
3. Prevent metal parts (e.g., screws) from falling into the cabinet. If this occurs, remove them immediately.

Maintenance Requirements

1. Regularly check the module's functional status through test points and verify the accuracy of output results.
2. Use calibrated test equipment to conduct safety inspections in high-voltage environments.
3. When replacing the module due to faults, follow GE standard procedures to ensure system compatibility and parameter consistency.

————————————————————————————————————————————————————————————————————————
