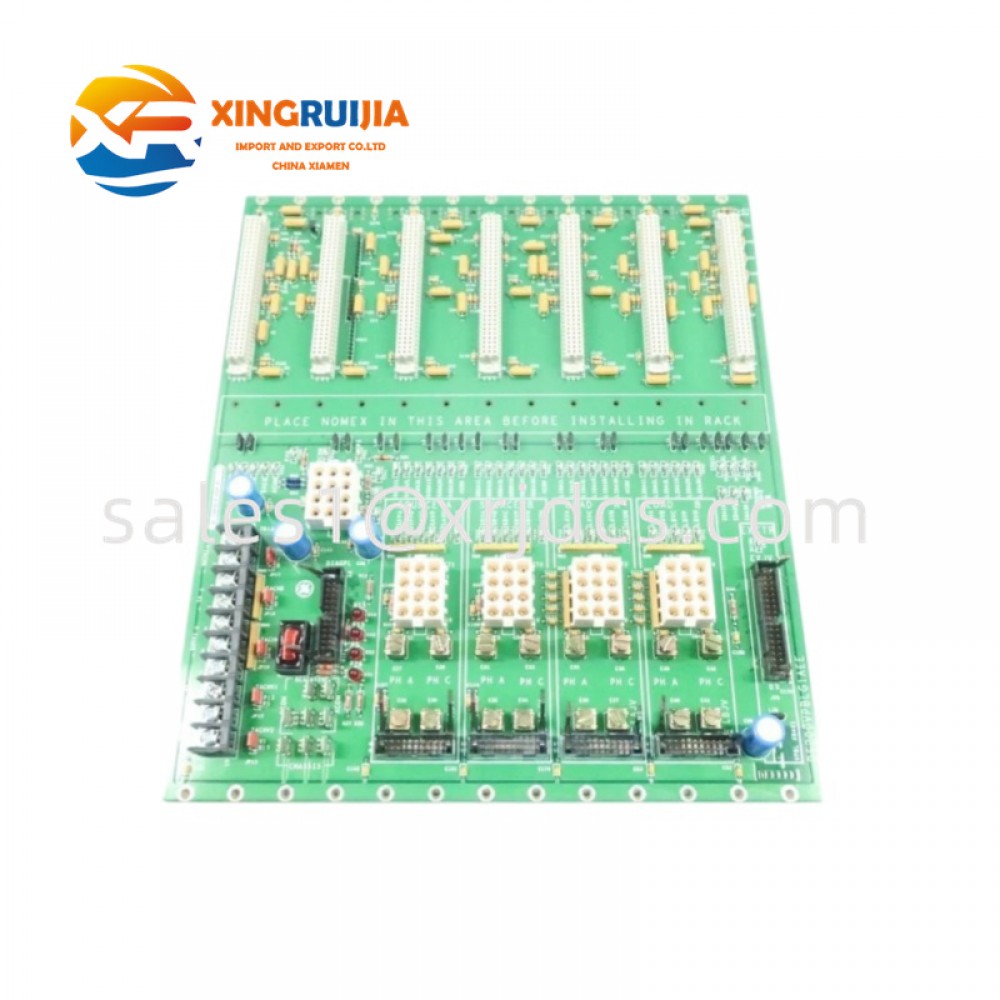

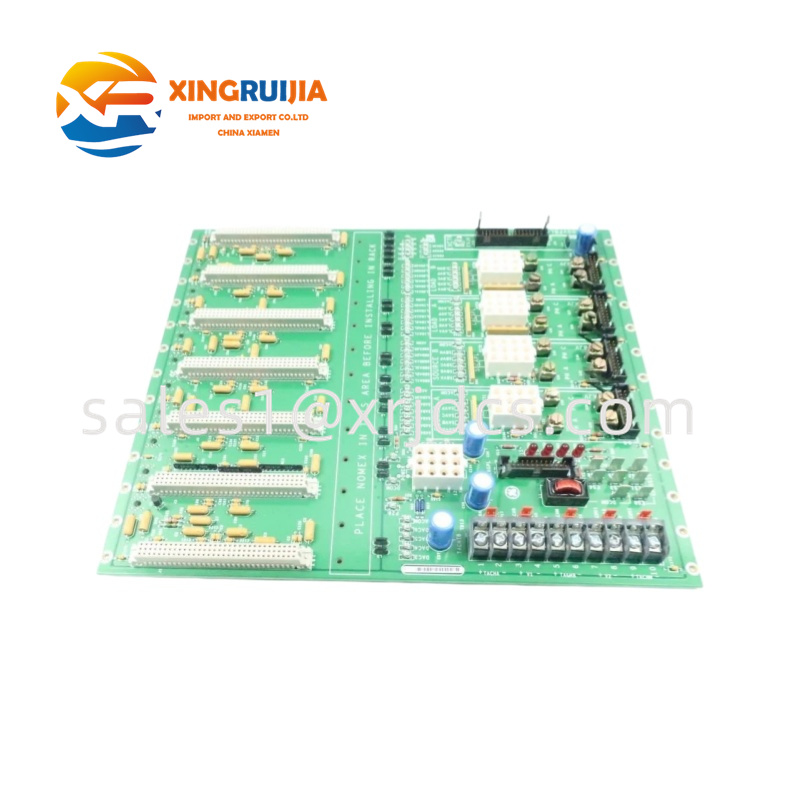

GE DS200VPBLG1AEE

Overview

The GE DS200VPBLG1AEE is a VME backplane board engineered for GE Mark V and LCI-based turbine control systems. It serves as the central communication and power distribution backbone within the control rack, enabling high-speed data exchange between multiple control, I/O, and processing modules. Designed for demanding industrial environments, this board ensures stable system integration and reliable operation.

---

Core Functionality

Unlike typical control boards, the DS200VPBLG1AEE acts as an infrastructure component within the system. It provides:

• High-bandwidth VME bus communication between installed modules
• Centralized power distribution across multiple slots
• Signal routing and synchronization for control and feedback signals
• Support for multiple module types including CPU, I/O, and exciter boards

---

Key Features

• Multilayer PCB Design separating analog and digital power planes for improved stability
• Multiple VME Connectors supporting various double-wide and single-wide modules
• Integrated Diagnostic Points for system monitoring and troubleshooting
• Flexible Expansion Capability with spare slots for future upgrades
• Robust Industrial Construction ensuring durability in high-vibration and high-temperature environments

---

Technical Specifications

Parameter	Description
Model	DS200VPBLG1AEE
Manufacturer	General Electric (GE)
Product Type	VME Backplane Board
Series	LCI / Mark V Compatible
Bus Type	VME (Versa Module Europa)
Connector Configuration	8 VME connectors (double & single width)
Power Connection	12-pin Mate-n-Lock connector
Diagnostic Interface	26-pin diagnostic connector
Operating Environment	Industrial control cabinet

---

Structure & Slot Configuration

The DS200VPBLG1AEE is divided into two main functional sections:

J2 Section (Internal System Integration):

• Supports DSP control boards, I/O extenders, and gate distribution modules
• Includes slots for exciter boards and expansion modules
• Provides clock signal distribution and control signal routing

J3 Section (External Interface & Power):

• Handles external connections such as current transformers (CTs) and voltage feedback circuits
• Provides power input and grounding connections
• Interfaces with auxiliary boards for signal scaling and feedback

---

Application Areas

This backplane board is primarily used in high-performance industrial control systems, including:

• Gas and steam turbine control systems
• Power generation plants
• Static starter (LCI) systems
• Heavy industrial automation platforms

---

Installation & Integration

The DS200VPBLG1AEE is designed for rack-mounted installation within GE control cabinets. Proper alignment with the card cage is essential to ensure reliable electrical connections.

Key considerations:

• Ensure secure seating of all connected modules
• Verify power connections before system startup
• Maintain proper grounding through designated connectors
• Allow sufficient airflow for thermal management

---

Maintenance & Diagnostics

Although the board itself is passive, it plays a critical role in system reliability. Recommended maintenance includes:

• Checking connector integrity and slot cleanliness
• Monitoring diagnostic points for signal anomalies
• Inspecting power distribution connections
• Ensuring no corrosion or dust accumulation

---

Additional Insights

The GE DS200VPBLG1AEE is not just a support board—it is the backbone of communication and power distribution within GE turbine control systems. Its ability to coordinate multiple modules efficiently makes it indispensable for maintaining system stability and performance in mission-critical environments.
