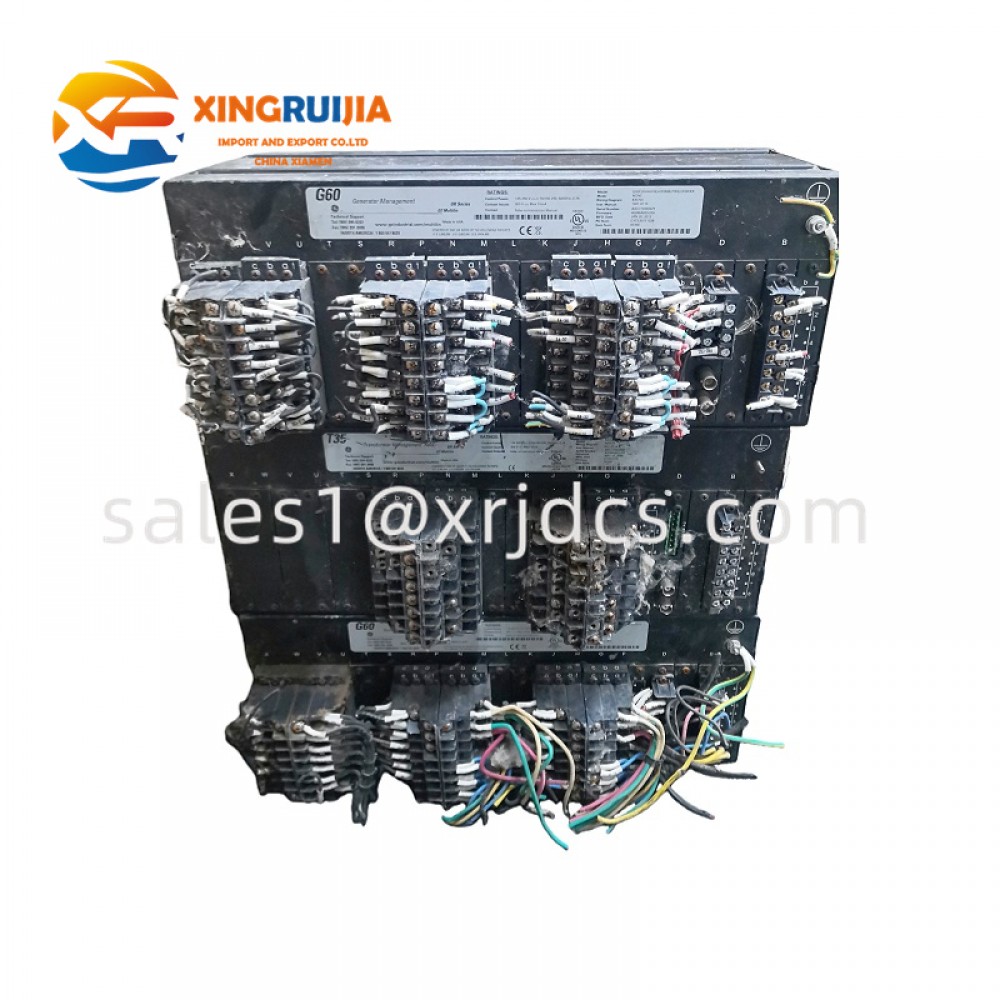

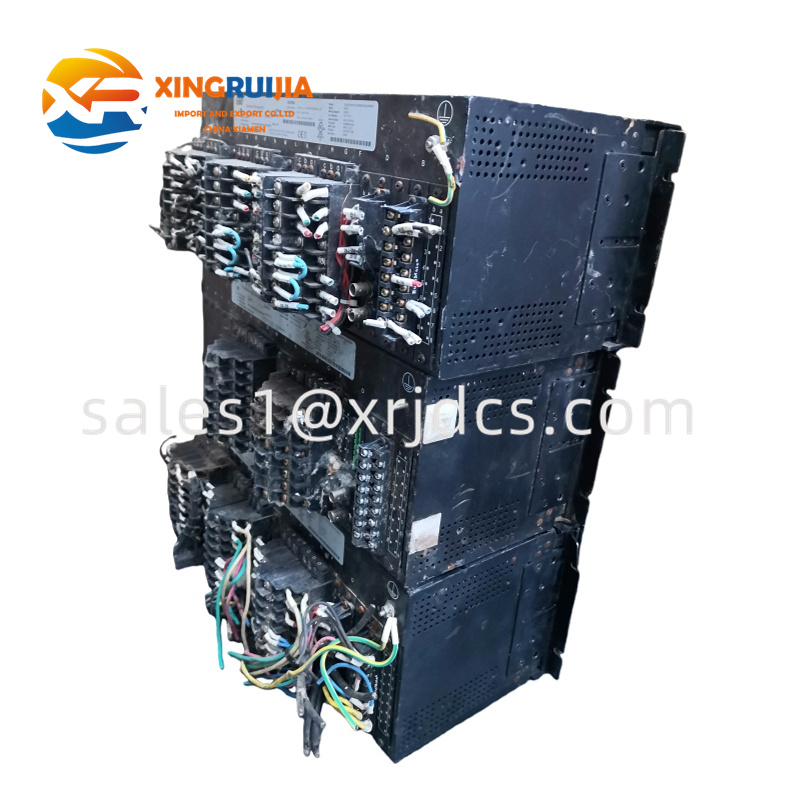

GE G60E00HAHF8LHXXM8LPXXUXXWXX – Advanced Protection & Control Relay Module

Introductory Overview

The GE G60E00HAHF8LHXXM8LPXXUXXWXX belongs to the GE Multilin G60 series, a family of high-performance generator protection and control relays designed for utility, industrial, and high-capacity generation environments. This model delivers comprehensive protection functions, precise monitoring, and high-speed control capabilities suitable for critical power applications.

Engineered for continuous reliability, the G60 platform integrates advanced algorithms, scalable communication interfaces, and hardened hardware to ensure dependable operation under demanding electrical and environmental conditions.

---

1. Design Architecture & Construction

Unlike conventional relay units, this G60 configuration uses a modular and layered internal design:

• Processing Core – High-speed digital signal processor for real-time fault detection

• Analog Input/Output Layer – High-accuracy measurement channels for voltage, current, frequency, and power diagnostics

• Communication & Networking Section – Multi-protocol interface bays supporting modern substation automation

• Firmware Protection Engine – Implements GE’s advanced protection libraries for generator safety

• Ruggedized Mechanical Frame – Shielded metal enclosure engineered for harsh grid and industrial settings

This architecture ensures stable, deterministic performance for generator protection tasks.

---

2. Key Features & Functional Capabilities

• Complete generator protection suite, including differential protection, loss-of-excitation, over/under frequency, and voltage regulation monitoring

• High-speed trip response, optimized for preventing mechanical/electrical damage

• Comprehensive event recording, waveform capture, and SOE (Sequence of Events) logging

• Cyber-secure communication, enabling modern substation integration and remote management

• Self-diagnostics, including hardware watchdogs and system integrity monitoring

• Wide configuration flexibility, adaptable to various generator sizes and applications

• Redundant communication options, improving system reliability in critical environments




---

3. Technical Specifications

• Protection Family: GE Multilin G60 generator protection

• Measurement Inputs: Multi-channel current & voltage sensing, high-resolution sampling

• Control Functions: Trip, logic interlocking, supervisory control

• Communication Protocols: IEC 61850, Modbus, DNP3, IEEE C37.118, and GE-specific interfaces

• Event & Waveform Storage: Large non-volatile memory with long-duration record support

• Power Supply: Wide-range auxiliary input suitable for substation-grade systems

• Operating Environment: Industrial temperature range, EMC-hardened, vibration-resistant

• Mounting Style: Standard 19-inch rack-mount relay chassis

• Firmware: Supports GE Multilin configuration and management tools

---

4. Application Scenarios

This model is optimized for demanding generator environments, including:

• Utility power plants – thermal, hydro, gas turbine units

• Industrial captive power stations – refinery, petrochemical, mining

• Renewable generation integration – large-scale wind or biomass plants

• Critical infrastructure power units – data centers, airports, defense facilities

• Distributed energy and microgrid control

Its broad protection feature set makes it suitable for both base-load and peaking generator configurations.

---

5. Installation Guidelines

1. Mount the relay in a clean, dry, and vibration-safe control panel or rack.

2. Ensure that CT/PT wiring is connected using shielded cables and correct polarity.

3. Connect communication ports according to system protocol requirements.

4. Configure protection logic using GE’s engineering software tools.

5. Perform commissioning tests such as secondary injection, functional checks, and interlock validation.

6. Apply correct grounding practices to guarantee signal accuracy and EMC compliance.

---

6. Maintenance & Diagnostic Practices

• Schedule regular firmware checks and update through GE-certified tools.

• Inspect terminal blocks, CT/PT wiring, and network connections periodically.

• Review SOE logs and waveform captures to detect early electrical irregularities.

• Clean ventilation channels and ensure ambient temperature stays within allowable limits.

• Verify communication link health, especially in redundant network setups.

• Recalibrate input channels if system modifications or rewiring occurs.

---

7. Additional Notes

The GE G60E00HAHF8LHXXM8LPXXUXXWXX represents GE’s top-tier generator protection technology. Its robustness, advanced analytics, and complete protection suite make it a preferred choice for facilities that demand uncompromising reliability and performance.
