GE Fanuc HE697RTM700B

Overview

The GE Fanuc HE697RTM700B is an industrial-grade RTU (Remote Terminal Unit) master communication module designed for the GE Series 90-70 PLC system. It is mainly used to establish and manage communication between a central PLC controller and multiple remote RTU slave devices using industrial protocols such as Modbus RTU.

The module is widely applied in industrial automation environments where reliable long-distance data acquisition, multi-device communication, and distributed control are required.

---

Functional Description

The HE697RTM700B acts as a communication gateway module within the PLC rack system. Its main functions include:

• Managing two independent Modbus RTU master communication channels
• Collecting data from remote slave devices (sensors, RTUs, meters, controllers)
• Supporting RS232 and RS485 communication interfaces
• Handling multi-drop industrial network communication
• Enabling real-time data exchange between field devices and PLC systems

It is commonly used in distributed control systems (DCS), SCADA systems, and industrial monitoring networks.

---

Technical Specifications

Manufacturer: GE Fanuc (General Electric / Horner Automation)
Model: HE697RTM700B
Product Type: RTU Master Communication Module
System Compatibility: GE Series 90-70 PLC

• Communication channels: 2 independent RTU master ports
• Protocol support: Modbus RTU
• Interfaces: RS232 / RS485 (multi-drop supported)
• Power consumption: approx. 5V DC, high-current rack module
• Installation type: Plug-in rack module (Series 90-70 slot)
• Network capability: Multi-drop communication architecture
• Supported data types: Analog and discrete signals
• Function: Master-side RTU communication control

---

Key Features

• Dual-channel Modbus RTU master communication
• Supports RS485 multi-drop industrial networking
• Compatible with GE Series 90-70 PLC architecture
• High-speed and stable industrial data transmission
• Flexible configuration for remote device communication
• Supports analog and digital data exchange
• Strong noise immunity for harsh environments
• Suitable for continuous 24/7 operation

---

Structure and Composition

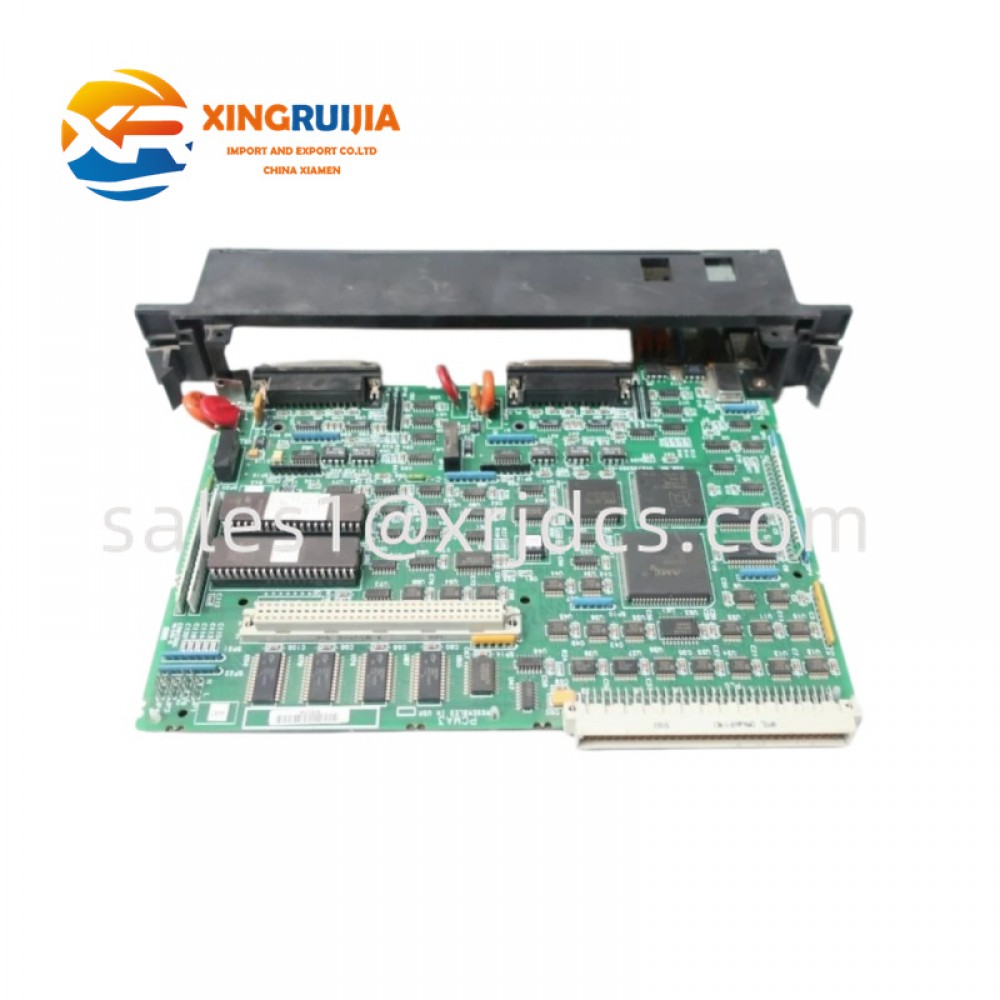

The module is built as a rugged industrial PCB assembly and typically includes:

• Communication processor unit
• RS232 / RS485 transceiver circuits
• Signal conditioning and isolation components
• Backplane interface connector
• Status indicator LEDs
• Industrial-grade protective board layout

Its rack-mounted design ensures stable integration within GE PLC control cabinets.

---

Working Principle

The HE697RTM700B operates as a master communication controller. It sends Modbus RTU commands to remote slave devices over RS485 or RS232 communication lines.

The module then:

1. Initiates communication requests (read/write commands)
2. Collects response data from slave devices
3. Converts and maps data into PLC memory tables
4. Transfers processed information to the main CPU
5. Continuously updates real-time industrial process data

This enables centralized monitoring and control of distributed industrial systems.

---

Applications

The GE Fanuc HE697RTM700B is widely used in:

• Industrial SCADA systems
• Oil and gas monitoring systems
• Power generation plants
• Water and wastewater treatment systems
• Factory automation networks
• Remote telemetry systems
• Utility and energy distribution systems
• Process control industries

It is especially suitable for systems requiring multi-device communication over long distances.

---

Installation Guidelines

For reliable operation, the following installation practices are recommended:

• Install only in compatible GE Series 90-70 PLC racks
• Ensure correct slot positioning before power-up
• Use proper shielding for RS485 communication cables
• Maintain correct grounding to reduce signal interference
• Verify network addressing of all slave devices
• Avoid installation in high-moisture or high-vibration environments

---

Maintenance Recommendations

To ensure long-term performance:

• Periodically inspect communication terminals
• Check RS485/RS232 cable integrity
• Monitor LED status indicators for faults
• Clean PLC cabinet to prevent dust accumulation
• Verify communication logs in SCADA/PLC system
• Replace module only with identical revision when required

---

Advantages

• Reliable Modbus RTU master communication capability
• Supports industrial multi-drop networking
• Strong integration with GE 90-70 PLC systems
• Stable performance in harsh industrial environments
• Efficient distributed data acquisition
• Easy maintenance and replacement
• Suitable for large-scale automation networks

---

Conclusion

The GE Fanuc HE697RTM700B RTU Master Communication Module is a robust industrial communication solution designed for GE Series 90-70 PLC systems. With dual-channel Modbus RTU support, flexible RS232/RS485 connectivity, and strong compatibility with distributed automation architectures, it plays a key role in modern industrial monitoring and control systems requiring reliable remote communication.

————————————————————————————————————————————————————————————————————————
