GE Fanuc IC200UDR010-BD

Functional Overview

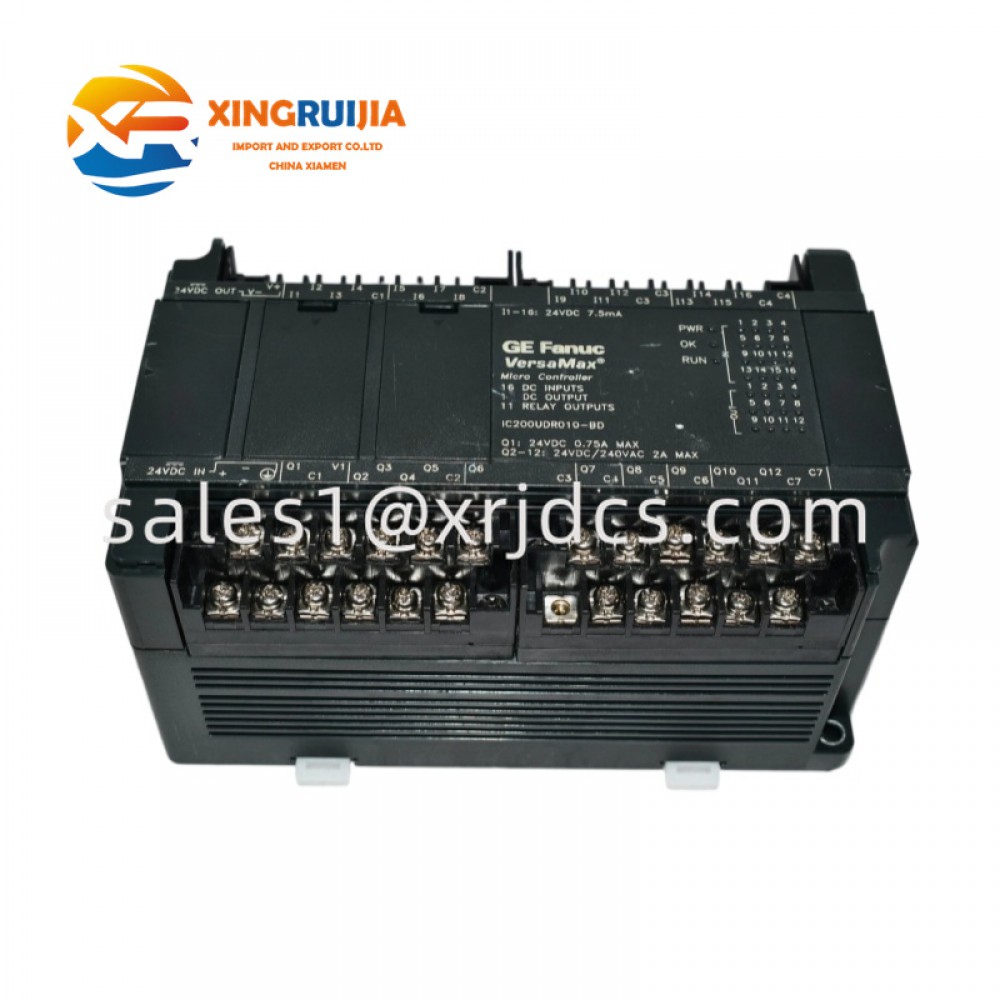

GE Fanuc IC200UDR010-BD is a compact VersaMax Micro controller intended for integrated PLC control. The corresponding IC200UDR010 configuration is documented as a 28-point Micro PLC with sixteen 24 VDC inputs, one 24 VDC transistor output, and eleven relay outputs.

The combination of control logic and field interfaces makes this type of PLC suitable for standalone machines and compact automation systems. It can also accommodate up to four I/O expansion units when additional control points are required.

I/O Configuration

Rather than relying on a separate I/O rack for every field connection, the controller integrates its main I/O resources into the Micro PLC platform.

The input section contains 16 configurable 24 VDC circuits. These inputs can be used as standard positive- or negative-logic inputs and can also support high-speed counter functions.

The output section consists of one DC output plus 11 normally open relay outputs. The relay circuits can switch compatible AC or DC loads, while the dedicated DC output supports faster control functions.

Performance and Memory

The controller provides approximately 9,000 words of logic memory and 2,000 words of data storage. Published specifications also give a scan time of approximately 1.1 milliseconds per 1,000 words.

For applications involving rapid input signals, the platform supports high-speed counter functions. The DC output can also be configured for pulse-train or PWM operation, providing greater flexibility than a conventional relay-only controller.

Main Advantages

Compact architecture
The integrated design helps reduce the space required for smaller automation panels.

Flexible field interfacing
Sixteen DC inputs allow connection to a variety of industrial sensing devices.

Mixed output capability
The combination of a dedicated DC output and relay outputs supports different types of field loads.

Expandable design
Up to four I/O expansion units can be supported, allowing the control system to grow with the application.

Typical Uses

The controller is suitable for equipment that requires PLC-based sequencing, monitoring, and actuator control. Common application areas include automated machinery, assembly equipment, conveyor systems, packaging lines, and compact production systems.

It can also be useful when maintaining existing VersaMax installations where a compatible replacement controller is needed.

Installation Notes

Confirm the power-supply requirements and I/O wiring before commissioning. The documented power requirement for this configuration is 24 VDC nominal, with the supply requiring sufficient startup current.

Use appropriate electrical safety and ESD procedures during installation. Before replacing an existing controller, record the field wiring and verify that the replacement hardware corresponds to the original system configuration.

Maintenance Recommendations

Routine maintenance should include checking terminal connections, field wiring, power stability, and the condition of connected sensors and actuators. Keep ventilation areas clear and protect the PLC from excessive contamination.

For long-term spare management, store replacement units in a clean, dry environment with suitable anti-static protection. Verifying the exact suffix and hardware revision before installation is also recommended, since the user's -BD designation should be matched against the existing equipment configuration.

————————————————————————————————————————————————————————————————————————
