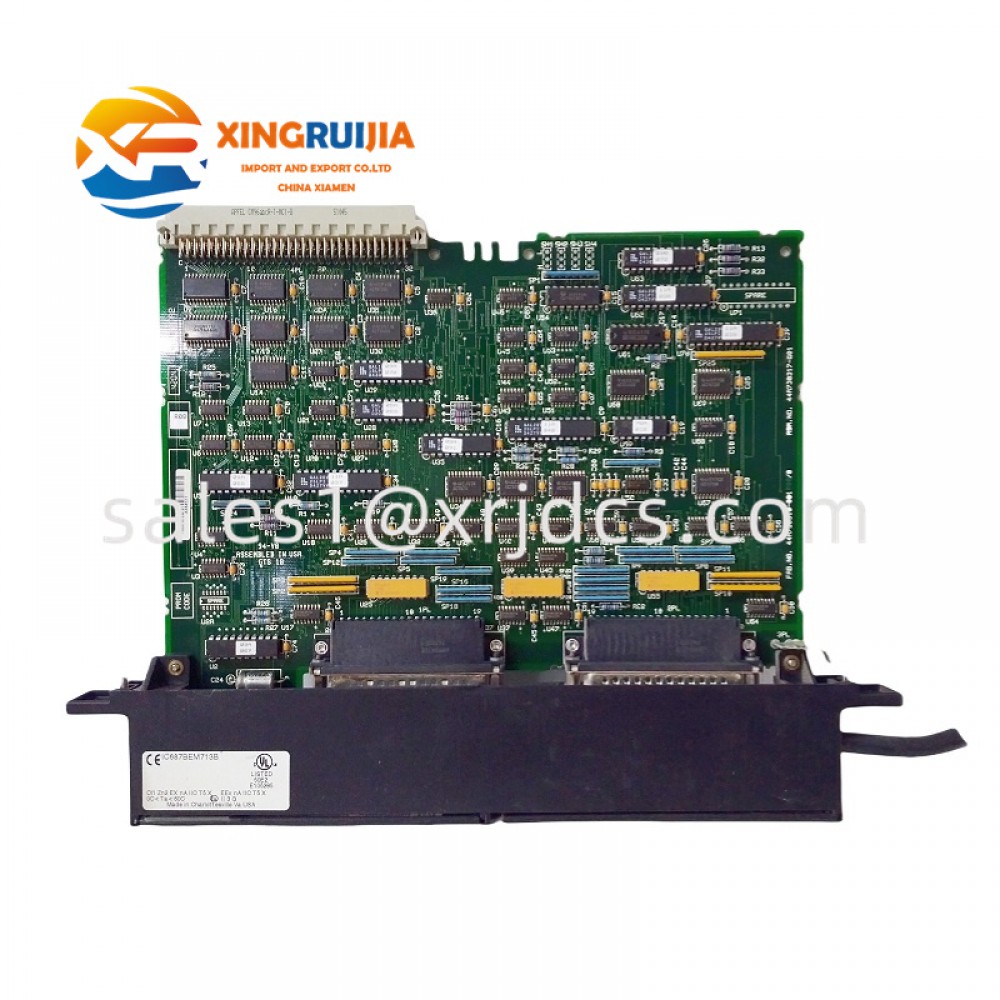

GE IC687BEM713

1. Overview

• Product Definition: The GE IC687BEM713 is a Programmable Logic Controller (PLC) expansion module manufactured by General Electric (GE), belonging to the GE Fanuc 90-70 or Rx7i series.
• Core Functions: It is used for data acquisition, processing, and communication expansion in industrial control systems. It supports multi-protocol communication to achieve efficient data exchange and control.
• Application Scenarios: Suitable for complex automation environments, it can expand the I/O capability and communication capability of PLC systems.

2. Specifications

• Model: IC687BEM713
• Type: Bus Transmitter Module / Output Module (some documents refer to it as an output module, which needs to be confirmed with the specific version)
• Operating Voltage: 5V DC (powered by the system backplane) or 24V DC (mentioned in some documents, specific model confirmation is required)
• Communication Protocols: Supports protocols such as TCP/IP, Modbus, and IEC870-5
• Expansion Capability: Expandable to 7 additional racks, supporting daisy-chain configuration, with a maximum cable length of 50 feet (approximately 15 meters)
• Data Rate: 500 KB/second (for programming interface and expansion interface)
• Current Consumption: 1.4 A (at 5V DC)
• Ambient Temperature: 0°C to 60°C (some documents mention -20°C to +70°C, specific confirmation is required)
• Protection Level: IP20 (or higher, depending on the specific model)
• Certifications: CE, CSA, NAMUR, etc.
• Dimensions/Weight: Standard DIN rail mounting, weighing approximately 1.1 kg (based on partial reference documents)

3. Product Features

• High-Speed Data Processing: Adopts an advanced microprocessor to ensure real-time performance and accuracy.
• Flexible Expandability:
  • Supports a variety of international standard open fieldbuses (such as Profibus, Ethernet/IP, etc.).
  • Can be mixed with 4 high-speed fieldbuses of different protocols (up to 12 MBd).
• Communication Compatibility: Integrates a parallel interface and an expansion port, compatible with GE PLC systems and third-party equipment.
• Reliability Design:
  • Industrial-grade components with strong anti-interference capability.
  • Self-diagnostic function to monitor the module status in real time.
  • Hot-swap support (for some versions) for easy maintenance.
• Engineering Convenience: Uniformly uses CBF software for configuration, debugging, and diagnosis.

4. Structure and Composition

• Hardware Structure:
  • Main Module: Includes power circuit, signal processing unit, and communication interface.
• Interfaces and Connectors:
  • Top: Parallel interface for programming devices (connects to debugging tools).
  • Bottom: Expansion port (connects to the bus receiver module to form a daisy chain).
• Indicator Lights: 3 LEDs (for power, status, and bus status).
• Installation Method:
  • DIN rail mounting (U-shaped slot) and wall-mountable.
  • Front terminal blocks for easy wiring.

5. Application Fields

• Smart Manufacturing: Production line control, robot system integration, and equipment status monitoring.
• Process Control: Process automation and data acquisition in the chemical, petroleum, and power industries.
• Energy Management: Optimizes energy distribution and monitors energy consumption in real time.
• Environmental Monitoring: Integrates sensor networks to monitor parameters such as temperature, humidity, and air quality.
• Building Automation: Controls Heating, Ventilation, and Air Conditioning (HVAC), lighting, and security systems.

6. Installation and Maintenance

• Installation Steps:
  1. Power-Off Operation: Turn off the rack power before installation.
  2. Slot Selection: Insert into any slot except Slot 1 (dedicated to the CPU).
  3. Connection Configuration:
     • Power Supply: Connect to the system backplane for 5V DC power supply.
     • Programming Interface: Use a designated cable (e.g., IC600WD series) to connect to the programming device.
     • Expansion Bus: Connect to the expansion rack through a Bus Receiver Module (BRM).
  4. Power-On Test: Confirm the LED status (the top LED lights up to indicate successful configuration).
• Maintenance Key Points:
  • Regular Inspection:
    • Verify that the wiring is not loose.
    • Monitor the ambient temperature (avoid exceeding 60°C).
    • Clean the module surface to prevent dust accumulation.
  • Troubleshooting:
    • Diagnose the status through LEDs (e.g., the bus error LED flashes).
    • When a fault occurs, power off the module before replacement (modules with hot-swap support can be replaced directly).
  • Software Maintenance: Use the CBF tool for firmware updates or configuration adjustments.

————————————————————————————————————————————————————————————————————————
