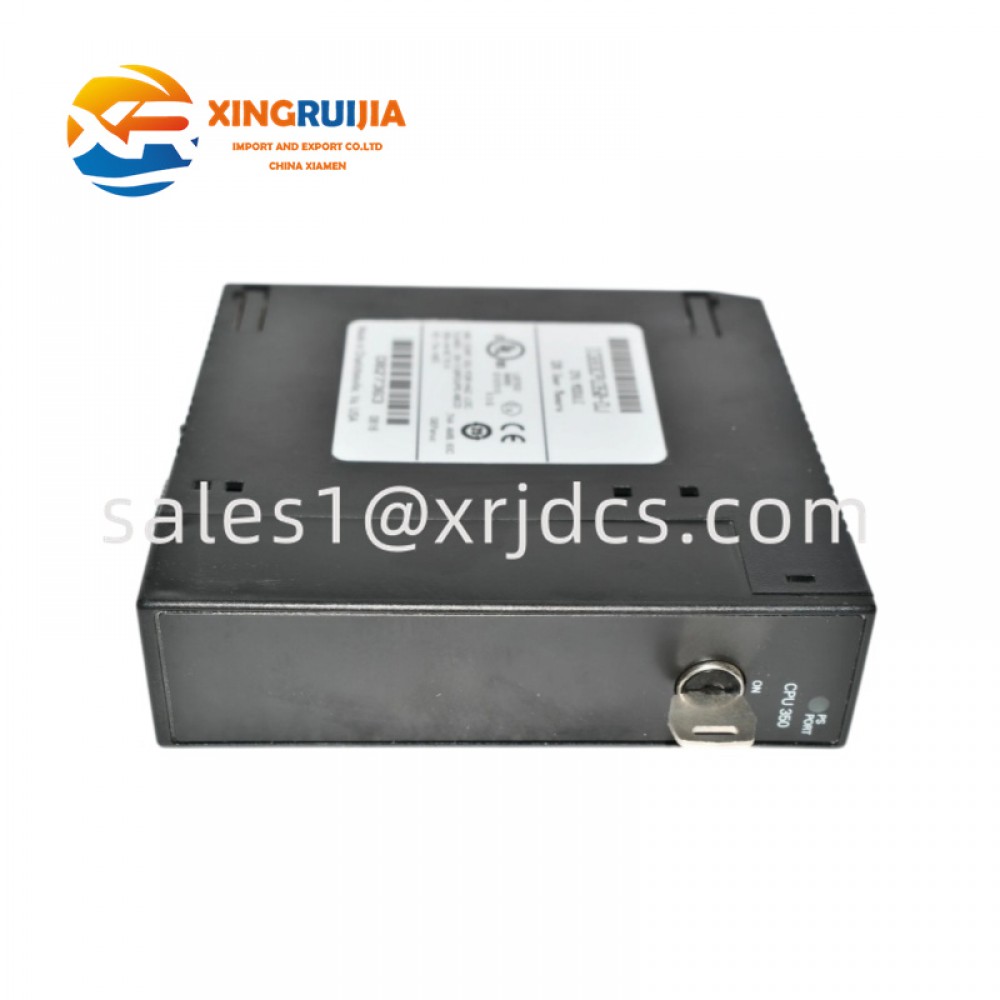

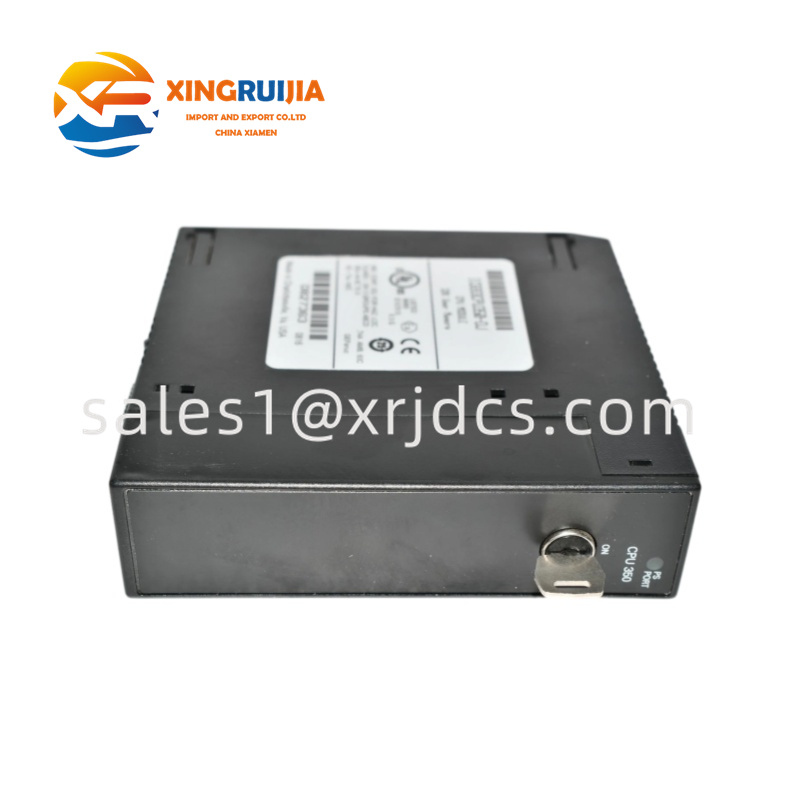

GE IC693CPU350-DJ

Product Overview

GE Fanuc IC693CPU350-DJ is a Series 90-30 PLC CPU module designed for industrial automation and machine-control applications. It is a revision of the CPU350 family and uses a single backplane slot. The CPU350 platform is based on an 80386EX processor and provides 32 KB of user program memory.

This controller is suited to legacy automation systems that require dependable logic processing, memory handling, I/O management, and communication with other Series 90-30 components.

Technical Specifications

Parameter	Specification
Manufacturer	GE Fanuc
Series	Series 90-30
CPU Family	CPU350
Model	IC693CPU350-DJ
CPU Type	Single-slot CPU module
Processor	80386EX
Processor Speed	25 MHz
User Program Memory	32 KB
Power Requirement	670 mA from +5 VDC
Typical Scan Rate	0.22 ms per 1K Boolean logic
Operating Temperature	0 to 60°C
Discrete Inputs	2,048 points
Discrete Outputs	2,048 points
Register Memory	9,999 words
Memory Type	RAM and Flash

These specifications come from the Series 90-30 CPU350 documentation; the -DJ suffix identifies a specific hardware revision within the CPU350 family.

Key Features

• Single-slot PLC CPU architecture
• 25 MHz 80386EX processor
• 32 KB user program memory
• Supports up to eight baseplates in a system
• Battery-backed clock
• Built-in serial communication capability
• Supports more than 2,000 timers and counters
• RAM and Flash memory storage
• Compatible with optional communication modules
• Designed for industrial control applications

System Structure

The module serves as the processing center of a Series 90-30 PLC system. It works with the CPU baseplate and can be combined with expansion or remote baseplates. The system supports up to eight baseplates, including the CPU baseplate.

Communication can be expanded through optional modules supporting technologies such as Ethernet, FIP, Profibus, GBC, GCM, and GCM+.

Typical Applications

This CPU can be used in:

• Factory automation
• Machine control
• Production-line equipment
• Process automation
• Material handling systems
• Legacy PLC installations
• Industrial equipment refurbishment

Its combination of PLC processing, memory, and modular communication makes it suitable for established control architectures.

Installation and Maintenance

Always switch off system power before installing or removing the CPU. Confirm the hardware revision, backplane compatibility, configuration, and firmware requirements before replacement.

Keep the module free from conductive dust and excessive moisture. During maintenance, inspect the backplane connector, module housing, and surrounding wiring. Firmware and software compatibility should also be checked when servicing an older CPU350 installation. GE documentation notes specific programming and firmware requirements for later CPU350 revisions.
