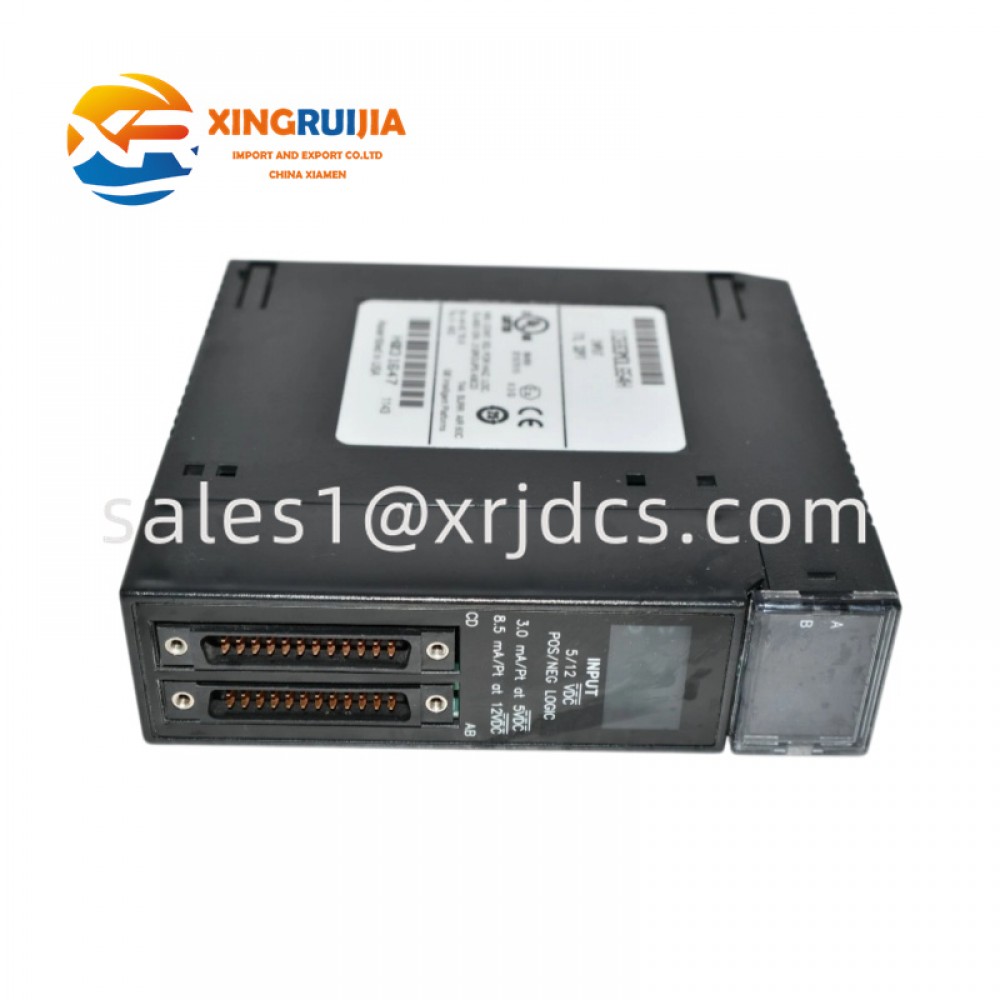

GE IC693MDL654H TTL

Overview

Reliable digital signal acquisition is essential for industrial automation. The GE Fanuc IC693MDL654 TTL input card provides 32 input channels for compatible Series 90-30 PLC systems. Its low-voltage interface makes it suitable for applications that require TTL-compatible digital signals and flexible logic configuration.

Product Highlights

• Supports 32 discrete digital input points.

• Accepts 5/12 VDC input signals.

• Offers positive and negative logic configurations.

• Divides inputs into four groups, with eight channels per group.

• Provides optical isolation between field circuits and the PLC backplane.

Functional Design

The module receives electrical signals from external devices and converts their states into input data for the PLC. The controller then uses this information to execute programmed logic and coordinate machine operations.

Each input group has its own common connection. This arrangement supports organized field wiring and helps separate input circuits. In addition, front-panel LED indicators allow maintenance personnel to check channel status during troubleshooting.

Product Data

• Brand: GE Fanuc

• Model: IC693MDL654

• Module Category: Digital input card

• Signal Type: TTL-compatible DC signals

• Rated Voltage: 5/12 VDC

• Maximum Input Voltage Range: 0–15 VDC

• Input Points: 32

• Response Time: Up to 1 ms for ON and OFF transitions

Typical Uses

The module can serve as an interface between low-voltage field devices and a PLC controller. Common applications include automated machinery, electronic equipment monitoring, production systems, and industrial process control. Before selecting it, engineers should confirm that the field devices match the module's voltage and logic requirements.

Maintenance Recommendations

Inspect the front connectors, wiring, and status indicators during routine maintenance. Check for loose connections, contamination, or damaged contacts. When replacing the module, verify the rack configuration and field wiring against the official installation manual. After installation, test the input channels to confirm correct signal detection.
