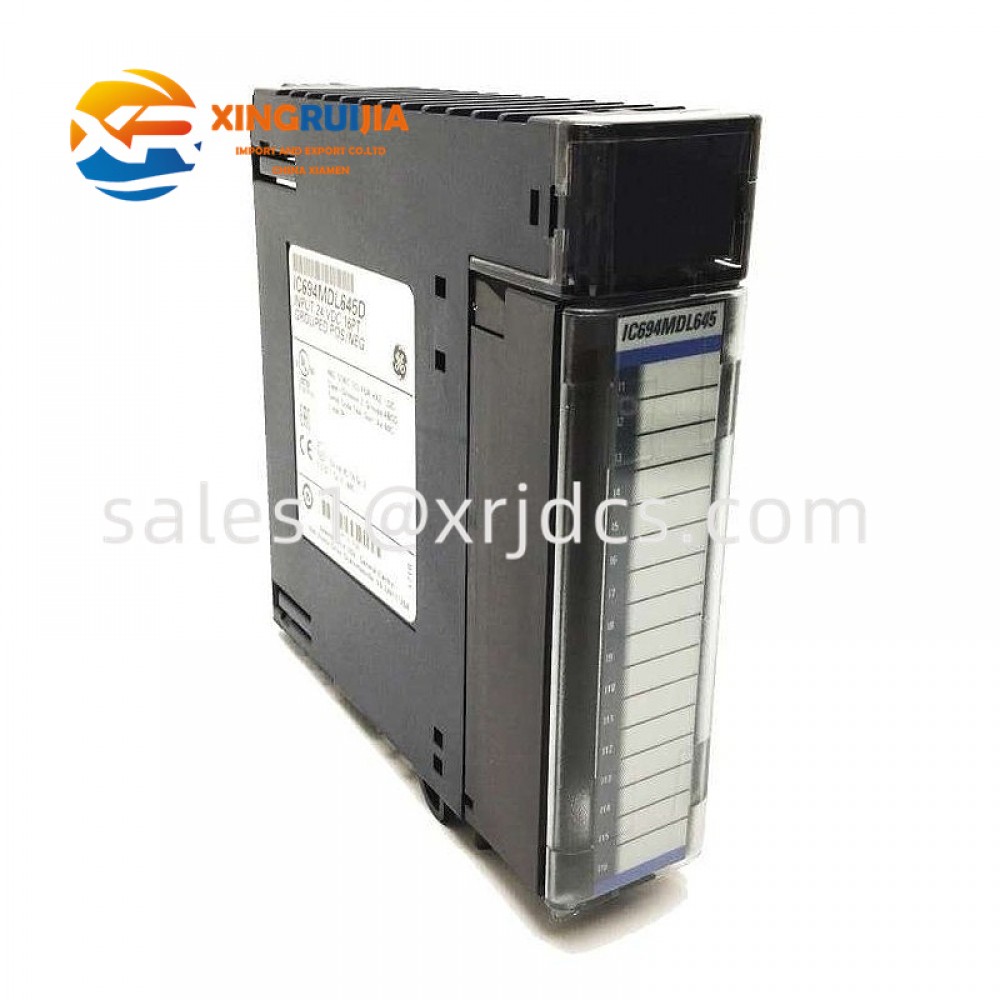

GE IC694MDL645

1. Overview

The GE IC694MDL645 is a digital input module belonging to the GE RX3i series, serving as a critical component in industrial automation control systems. This module supports 24VDC input, provides 16 input points, and is suitable for industrial automation scenarios such as power plants, steel mills, cement plants, and other industrial environments. It is designed to process discrete input signals, supports positive/negative logic input, and is compatible with a variety of industrial equipment (e.g., buttons, proximity switches).

2. Parameters

• Input Type: 24VDC positive/negative logic input
• Number of Input Points: 16 input points, supporting single-group input
• Input Current: Maximum 7mA
• Input Voltage Range: 0-30V DC
• Power Consumption: 80mA (5V bus) and 125mA (24V power supply)
• Operating Temperature Range: -2°C to 60°C (32-140°F)
• Storage Temperature Range: -40°C to 85°C (-40-185°F)
• Protection Level: IP20
• Installation Method: DIN rail mounting

3. Product Features

• High Reliability and Stability: The module is designed for mission-critical discrete and process applications, supporting industrial automation control systems.
• Compatibility: Compatible with a variety of input devices (e.g., buttons, proximity switches) and industrial equipment.
• Easy Maintainability: The module is designed to support hot swapping, enabling simple maintenance and automatic configuration when replacing the module.
• Safety: Complies with the UL 508 standard and is suitable for hazardous locations (Class I, Division 2).

4. Structure and Composition

• Module Type: Digital input module, featuring no complex mechanical structure and no moving parts.
• Interface: Supports backplane connection, provides 16 input channels, and supports positive/negative logic input.
• Indication Function: 16 green LED lights for indicating input status (ON/OFF).

5. Application Fields

• Industrial Automation: Widely used in industrial scenarios such as power plants, steel mills, cement plants, power systems, and automated production lines.
• Control Systems: Applied in industrial control systems like PLC, DCS, and HMI.

6. Installation and Maintenance

• Installation Method: Supports DIN rail mounting for easy installation.
• Maintenance: The module is designed to support hot swapping, with automatic configuration during module replacement, ensuring simple maintenance.
• Precautions: It is necessary to ensure compliance with the power supply voltage range (0-30V DC) and temperature range (-40°C to 85°C).

————————————————————————————————————————————————————————————————————————
