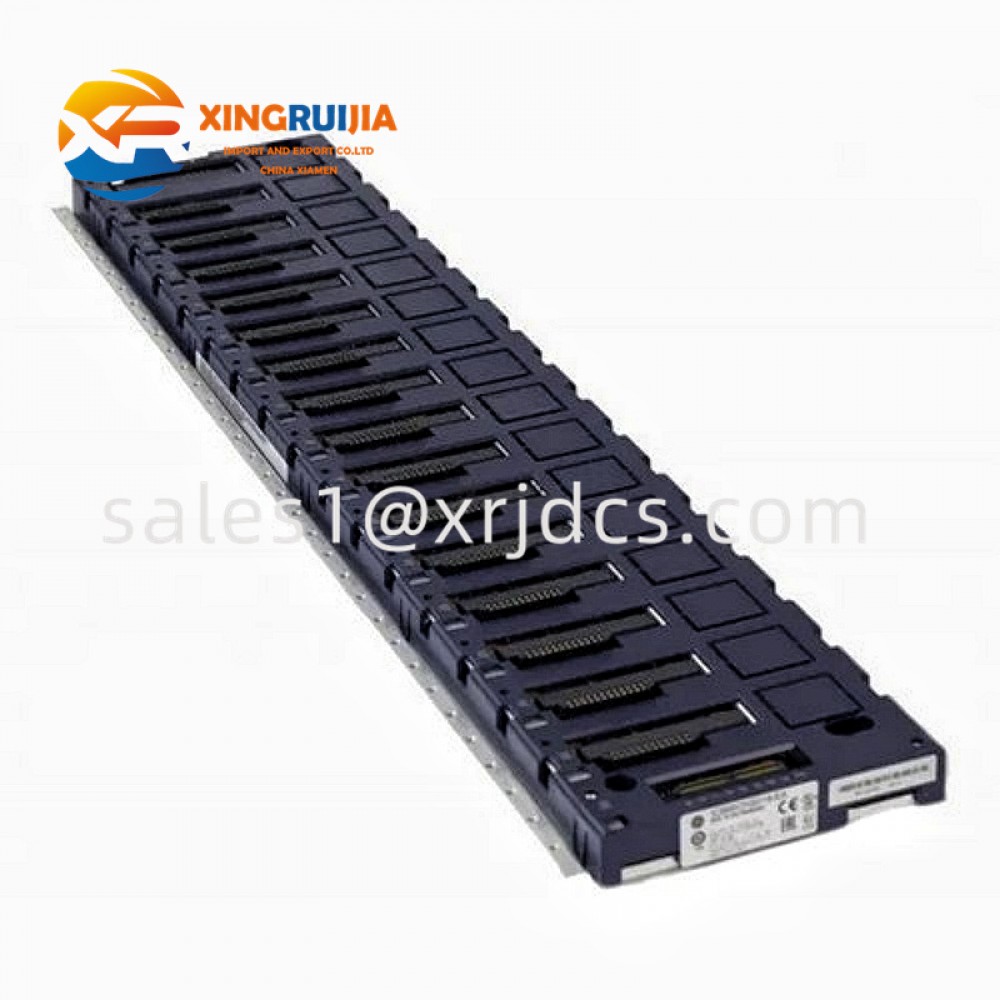

GE IC695CHS016-CA

Overview

The GE IC695CHS016 is a universal backplane module designed for industrial automation control systems, providing module installation and connection functions. As a core component of industrial automation systems, it supports the installation and communication of various modules (such as CPUs and I/O modules). The model IC695CHS016-CA may be a specific variant or version, but its functions are similar to those of the standard model.

Parameters

• Power Consumption: 2.5W
• Dimensions: 228.6mm × 177.8mm × 22.2mm
• Weight: 500g
• Slots: 16-slot universal backplane, supporting module installation
• Environment: Must be installed in a NEMA/UL Type 1 or IP20 enclosure

Product Features

• High Reliability: Designed for industrial control, supporting module expansion and communication
• Ease of Use: Modular design, compatible with various modules (such as power supply modules and communication modules)
• Application Fields: Industrial control, process control, building automation, etc.

Structure and Composition

• Structure: The backplane provides module installation interfaces, supports horizontal installation, and enables module communication through the backplane bus.
• Composition: Includes the backplane, terminal board (24VDC isolated), power module interface, etc.

Application Areas

• Industrial Control: Robots, CNC machine tools, automated production lines, etc.
• Process Control: Oil, chemical, electric power, metallurgy and other industries.
• System Integration: Used in the GE PACSystem RX3i series PLC systems.

Installation and Maintenance

• Installation: Must be installed in a NEMA/UL Type 1 or IP20 enclosure and fixed in place.
• Maintenance: Regular inspection of power modules and connections is required to ensure the environment meets the specified requirements.

————————————————————————————————————————————————————————————————————————
