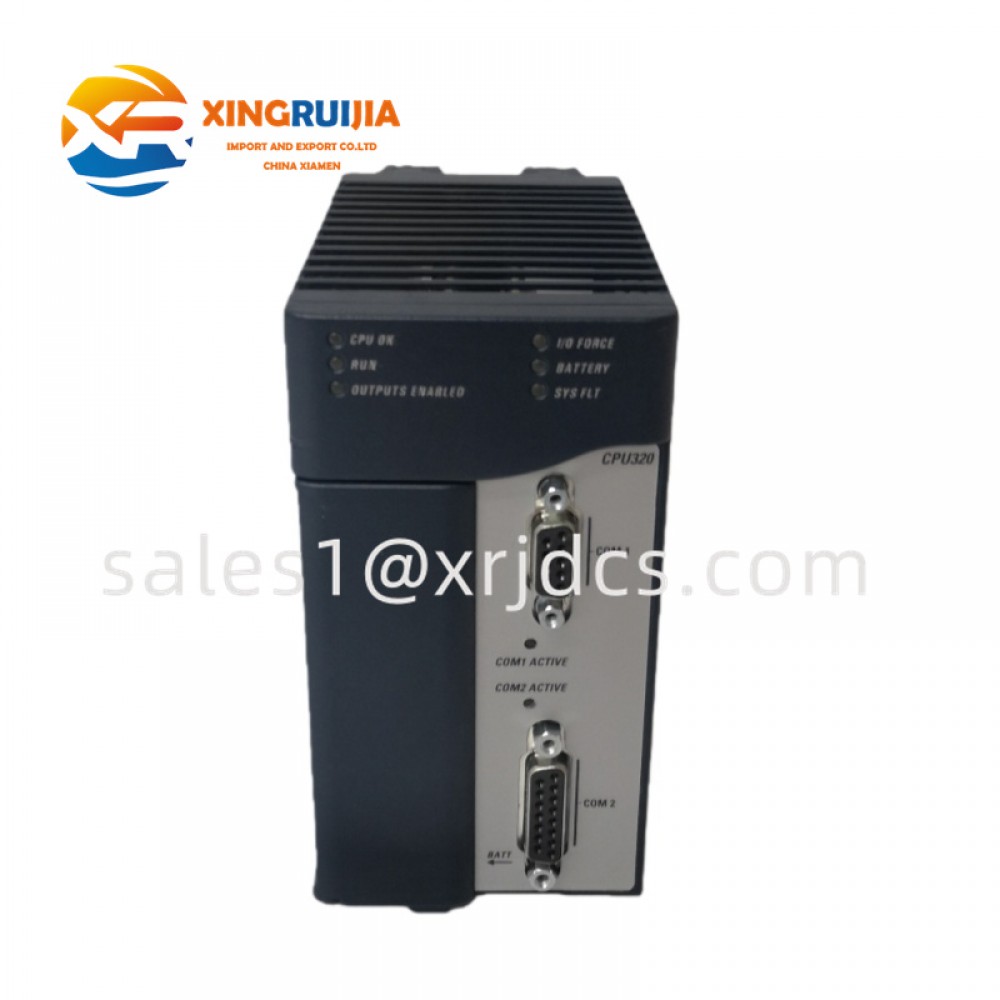

GE IC695CPU320-CF

System Role & Positioning

The GE IC695CPU320-CF is a high-performance CPU module designed for PACSystems RX3i PLC architectures. Acting as the core controller, it executes user logic, manages I/O communications, and coordinates data exchange across the automation network. This model is well suited for control systems that require fast processing, deterministic performance, and reliable operation in industrial environments.

Key Functional Capabilities

• High-speed logic execution for complex control tasks

• Integrated communication interfaces for seamless system connectivity

• Support for large application programs and data memory

• Deterministic performance suitable for real-time automation

• Designed for long-term operation in demanding industrial conditions




Technical Specifications

Parameter	Description
Product Type	PLC CPU Module
Model	IC695CPU320-CF
PLC Platform	PACSystems RX3i
Processor Type	High-speed industrial CPU
User Memory	Large-capacity application memory
Communication Interfaces	Ethernet / Serial (model-dependent support)
Programming Software	Proficy Machine Edition
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Mounting	RX3i chassis-mounted

Architecture & Internal Design

The IC695CPU320-CF integrates a powerful processor, non-volatile memory, and communication controllers on a compact industrial-grade circuit board. It interfaces directly with the RX3i backplane, enabling high-speed data transfer between I/O modules, communication cards, and system power supplies. Built-in diagnostics continuously monitor CPU health and system status.

Applications

This CPU module is commonly deployed in:

• Manufacturing automation and assembly lines

• Process control systems in chemical and pharmaceutical plants

• Power generation and energy distribution automation

• Packaging, material handling, and logistics systems

• Infrastructure and utility control applications




Installation & Commissioning

• Installation: The CPU is installed into a designated RX3i chassis slot and automatically connects to the system backplane.

• Configuration: Programming and diagnostics are performed using GE Proficy Machine Edition software.

• Commissioning: Network parameters, I/O configuration, and control logic can be downloaded directly via Ethernet or serial interface.

Maintenance & Diagnostics

The IC695CPU320-CF requires minimal routine maintenance. Engineers can use built-in status LEDs and software diagnostics to quickly identify faults, communication issues, or configuration errors. Firmware updates and program modifications can be performed without extensive system downtime.

Operational Advantages

• Reliable control performance for mission-critical systems

• Scalable design supporting system expansion

• Easy integration into existing RX3i architectures

• Proven GE reliability and industrial-grade durability
