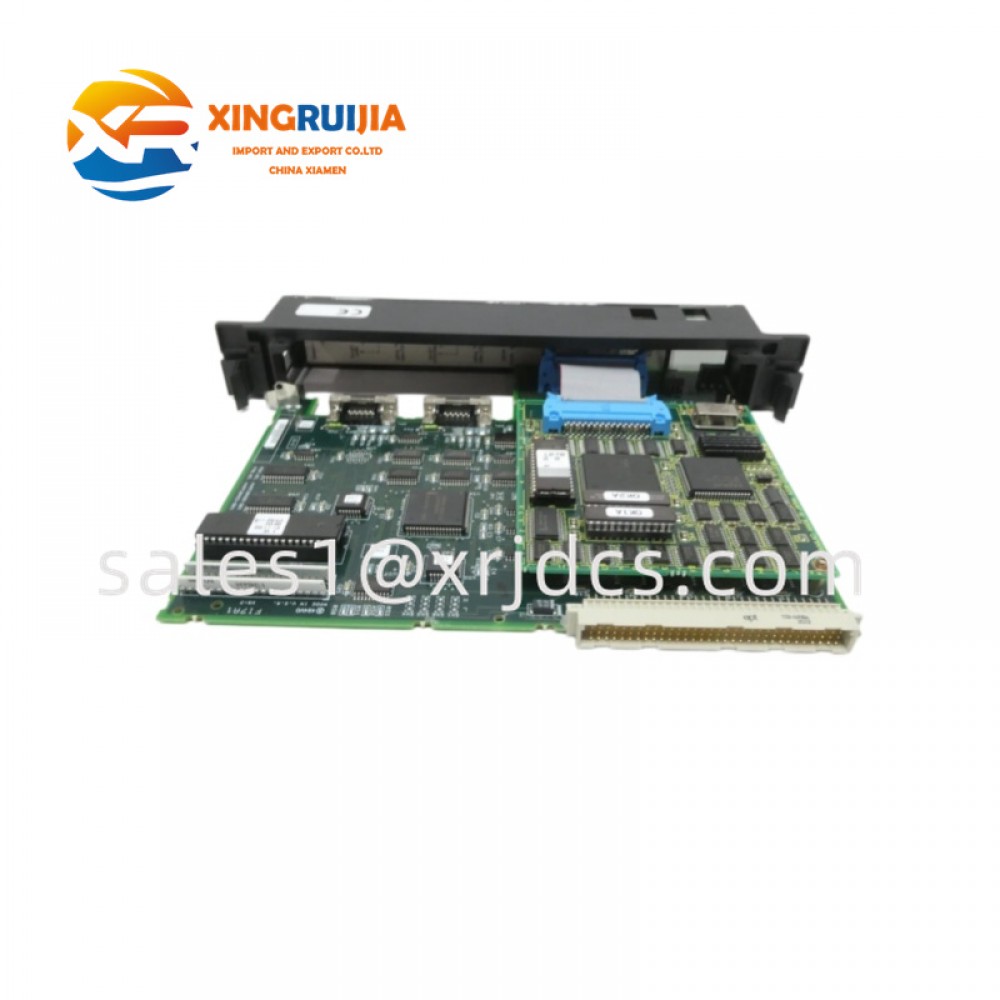

GE Fanuc IC697BEM721D

Product Overview

The GE Fanuc IC697BEM721D I/O Link Interface Module is a high-performance communication module designed for the GE Fanuc Series 90-70 PLC platform. It provides a reliable serial communication interface between the IC697 PLC system and GE Fanuc I/O Link-compatible devices, enabling high-speed data exchange between the control system and distributed field equipment.

Designed for industrial automation applications requiring efficient remote I/O communication, the IC697BEM721D acts as a bridge between the PLC processor and connected I/O Link devices. It supports communication with multiple slave devices and helps simplify system expansion while maintaining fast and dependable data transmission.

---

Product Functionality

The GE Fanuc IC697BEM721D operates as an I/O Link Master Interface Module within the Series 90-70 PLC architecture. It allows the PLC system to communicate with CNC-compatible serial I/O Link devices through dedicated RS-422/RS-485 communication channels.

The module manages cyclic I/O data exchange between the PLC and connected devices, reducing wiring complexity and improving system flexibility. It is particularly suitable for applications where distributed input/output devices, CNC equipment, and intelligent field components need to be integrated into a centralized control system.

---

Main Features and Advantages

High-Speed Serial Communication

The IC697BEM721D provides a dedicated high-speed serial communication interface for exchanging control and status data between the Series 90-70 PLC and I/O Link devices. This improves response performance in automated production environments.

Support for Multiple Slave Devices

A single I/O Link network can communicate with multiple connected slave devices, allowing users to expand system capacity without adding excessive hardware. The GE Fanuc I/O Link supports communication between a master device and up to 16 slave devices.

Dual RS-422/RS-485 Communication Ports

The module features two serial communication ports based on RS-422/RS-485 standards, providing flexible connection options for industrial devices and distributed I/O systems.

Efficient PLC Integration

As a Series 90-70 compatible module, the IC697BEM721D can be directly installed into the PLC rack, enabling seamless integration with existing GE Fanuc control architectures.

Diagnostic Status Monitoring

The module includes LED indicators for monitoring communication and operational status, helping engineers quickly identify system conditions during commissioning and maintenance.

---

Technical Specifications

Parameter	Specification
Manufacturer	GE Fanuc
Model Number	IC697BEM721D
Product Type	I/O Link Interface Module
Product Series	Series 90-70
Communication Interface	GE Fanuc I/O Link
Serial Ports	Dual RS-422/RS-485 ports
Communication Mode	Master/slave serial communication
Maximum Slave Devices	Up to 16 slave devices
Operating Voltage	5 V DC
Backplane Current Consumption	Approx. 1.3 A
LED Indicators	3 status LEDs
Installation Location	IC697 PLC rack
Compatible System	GE Fanuc Series 90-70 PLC
Maximum Standard Cable Distance	Approx. 10 m
Extended Distance with Fiber Optics	Up to 100 m

---

Hardware Structure and Components

The IC697BEM721D adopts a modular PLC rack design consisting of several key functional sections.

1. Backplane Interface

The rear connector allows the module to communicate directly with the Series 90-70 PLC backplane. Through this interface, the module exchanges configuration information and I/O data with the CPU system.

2. Serial Communication Interface

The front communication ports provide connection points for I/O Link devices. The RS-422/RS-485 interface ensures reliable serial communication in industrial environments with electrical noise and long-distance wiring requirements.

3. Communication Processing Unit

The internal processor manages data transmission, device communication, and I/O scanning functions, ensuring stable information exchange between the PLC and connected equipment.

4. Diagnostic Indicators

Front-panel LED indicators provide operational feedback, including module status and communication conditions, making troubleshooting more efficient.

---

Application Areas

The GE Fanuc IC697BEM721D is widely applied in industrial automation systems that require reliable communication between PLC controllers and distributed devices.

Typical applications include:

• CNC machine communication systems
• Manufacturing automation lines
• Automotive production equipment
• Material handling systems
• Assembly and packaging machinery
• Factory process monitoring systems
• Distributed I/O control applications

The module is especially valuable in legacy GE Fanuc Series 90-70 installations where reliable I/O expansion and equipment communication are required.

---

Installation and Configuration

Before installing the IC697BEM721D, users should verify system compatibility and communication requirements.

Recommended installation steps include:

1. Confirm that the PLC system uses the GE Fanuc Series 90-70 architecture.
2. Install the module into an available IC697 rack slot.
3. Connect compatible I/O Link devices through the serial communication ports.
4. Configure communication parameters according to system requirements.
5. Verify LED indicators after powering up the system.

Proper configuration ensures stable communication between the PLC and connected field devices.

---

Maintenance Recommendations

To maintain reliable operation of the IC697BEM721D, regular inspections are recommended:

• Check communication status LEDs periodically.
• Inspect RS-422/RS-485 cable connections.
• Verify proper grounding and shielding of communication wiring.
• Keep the PLC cabinet clean and free from excessive dust.
• Review PLC diagnostic information when communication faults occur.
• Ensure operating temperature remains within acceptable limits.

Because the module provides clear status indication, most communication issues can be identified and resolved efficiently.

---

Performance Benefits

The GE Fanuc IC697BEM721D provides several advantages for industrial control systems:

• Reliable I/O Link communication
• Fast serial data exchange
• Flexible connection with distributed devices
• Reduced field wiring requirements
• Easy integration with Series 90-70 PLC systems
• Improved system expansion capability
• Suitable for long-term industrial automation operation

---

Product Summary

The GE Fanuc IC697BEM721D I/O Link Interface Module is a dependable communication solution for GE Fanuc Series 90-70 PLC systems. By providing high-speed serial connectivity, multi-device communication support, and robust industrial performance, it enables efficient integration between PLC controllers and intelligent field devices.
