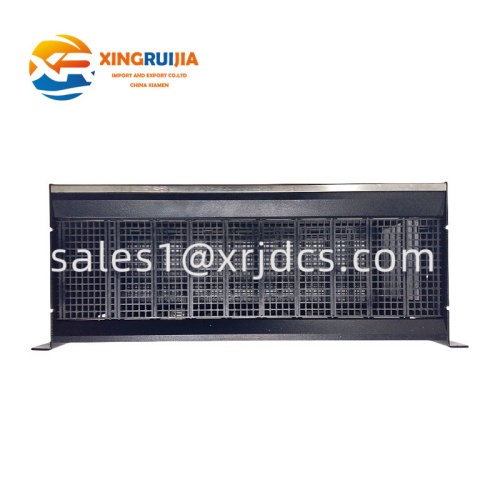

Original GE IC697CHS770 Available for Series 90-70 PLC Systems and Redundant Control Architectures

The GE IC697CHS770 is a high-reliability dual redundant PLC rack (backplane chassis) designed for GE Fanuc Series 90-70 (IC697) automation systems. It provides the structural and electrical foundation for installing CPUs, I/O modules, communication modules, and redundancy components in mission-critical industrial control applications.

This rack is widely used in power plants, oil & gas facilities, manufacturing systems, and process automation environments where system stability and redundancy are essential.

Our company supplies the GE IC697CHS770 with competitive pricing, stable inventory, and global delivery support, helping customers maintain and expand existing GE automation systems efficiently.

1. Product Overview – What is GE IC697CHS770?

The IC697CHS770 is a redundant rack/backplane chassis used in GE Fanuc Series 90-70 PLC architectures.

It is designed to:

• Host IC697 PLC modules and IC687 VME modules
• Support redundant CPU and system configurations
• Provide backplane communication and power distribution
• Enable high-availability industrial control systems

The rack is a core hardware platform that defines how PLC modules are physically arranged and electrically interconnected in a system.

2. System Architecture and Design

The GE IC697CHS770 features a dual-section redundant architecture, allowing the system to be split into two independent control sections within one rack.

2.1 Dual Section Structure

• Two independent rack sections
• Each section includes:
  • Power supply slot
  • Backplane module slots (typically 6 per section)

2.2 Redundancy Support

The rack supports:

• Dual CPU redundancy systems
• Redundant power supply configurations
• Fault-tolerant PLC architecture

2.3 Module Compatibility

It supports a wide range of GE automation modules, including:

• IC697 PLC CPUs
• IC697 I/O modules
• IC687 communication modules (VME-based systems)

3. Technical Specifications of GE IC697CHS770

General Information

Electrical and Power Characteristics

• Backplane power distribution: 5V DC system bus
• Maximum 5V current capability: up to ~20A (system dependent)
• Supports plug-in AC/DC and DC power supplies
• Optional external power supply configuration available

Mechanical and Physical Data

• Standard 19-inch rack compatible
• Industrial enclosure mounting (rear or front installation)
• Modular slot design for easy expansion and maintenance
• Rugged construction for harsh environments

4. Key Features of GE IC697CHS770

4.1 Redundant System Capability

Designed for high-availability systems where continuous operation is required.

4.2 Flexible Module Configuration

Supports mixed configurations of:

• PLC CPUs
• I/O modules
• Communication modules
• VME-based IC687 modules

4.3 Dual Power Supply Support

Each rack section can support independent or shared power configurations.

4.4 Hot-Swap Compatibility

Allows module replacement without full system shutdown (depending on system design).

4.5 Industrial-Grade Reliability

Built for continuous 24/7 operation in demanding environments.

5. Installation and Configuration Guidelines

To ensure proper operation of the IC697CHS770 rack:

• Install in a standard 19-inch industrial cabinet
• Ensure proper grounding of rack structure
• Configure redundancy jumpers according to system design
• Use compatible GE IC697/IC687 modules only
• Maintain correct airflow for thermal stability
• Follow GE Series 90-70 system installation manuals

Proper installation ensures long-term reliability and system stability.

6. Advantages of Using GE IC697CHS770

• Supports high-availability redundant PLC systems
• Flexible hybrid support for IC697 and IC687 modules
• Modular and scalable architecture
• Strong industrial reliability for continuous operation
• Easy maintenance and module replacement
• Proven performance in legacy GE automation systems

7. Conclusion – Reliable Supply of GE IC697CHS770

The GE IC697CHS770 Redundant PLC Rack is a critical hardware foundation for GE Series 90-70 control systems, enabling redundant architecture, flexible module configuration, and reliable industrial automation performance.

Our company provides GE IC697CHS770 racks with competitive pricing, stable inventory, and global delivery, supporting long-term maintenance and system expansion for industrial customers worldwide.
