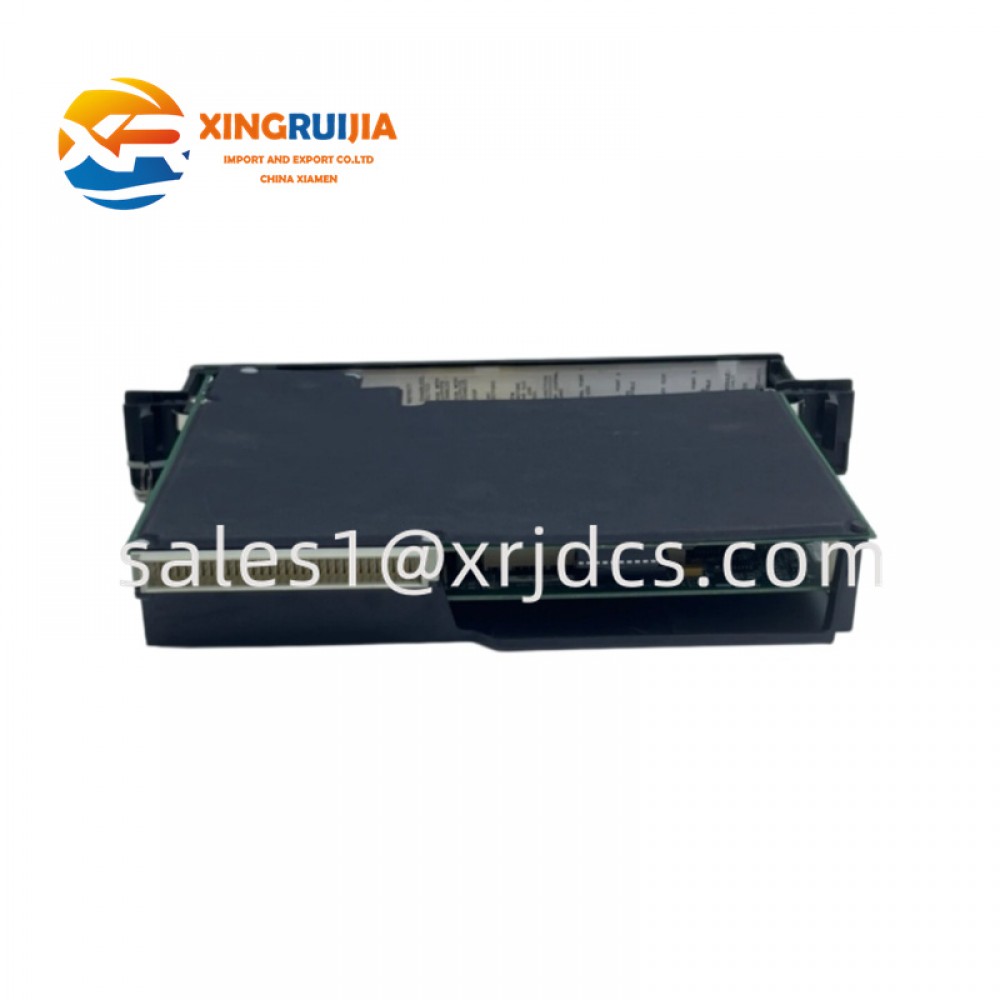

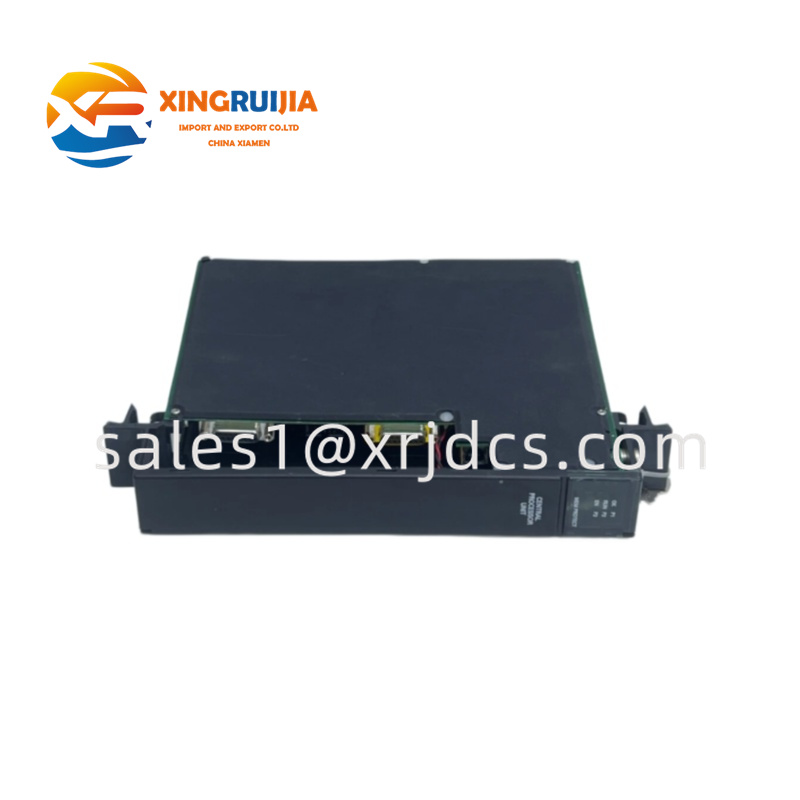

GE IC697CPX935-JE

Product Overview

The GE IC697CPX935-JE is a high-performance Central Processing Unit (CPU) module designed for the GE Fanuc Series 90-70 PLC platform. It serves as the main processing unit of the programmable logic controller system, responsible for executing user application programs, managing I/O operations, handling communication tasks, and coordinating overall automation processes.

Designed for demanding industrial automation environments, the IC697CPX935-JE combines a powerful 32-bit processor, large memory capacity, and multiple communication interfaces to provide reliable control performance for large-scale PLC applications. It is widely used in industries where stable operation, fast processing speed, and flexible system expansion are required.

The module belongs to the GE Series 90-70 family and supports a wide range of GE I/O modules, communication modules, and intelligent option modules, making it suitable for complex manufacturing, energy, and process control systems.

---

Technical Specifications

Parameter	Description
Manufacturer	GE Fanuc / General Electric
Model Number	IC697CPX935-JE
Product Type	PLC Central Processing Unit Module
Product Series	Series 90-70
Processor Type	80486DX4 32-bit Microprocessor
Processor Speed	96 MHz
Memory Capacity	1 MB Battery-backed CMOS RAM
Non-volatile Memory	256 KB Flash Memory
Discrete I/O Capacity	Up to 12K I/O points
Analog I/O Capacity	Up to 8K analog I/O points
Boolean Execution Speed	Approximately 0.4 microseconds
Communication Ports	RS-232 and RS-485 serial interfaces
Installation Method	Single-slot rack mounting
Power Requirement	5 VDC backplane supply
Current Consumption	Approx. 3.1 A
Supported Systems	GE Fanuc Series 90-70 PLC

---

Core Functions

The main responsibility of the GE IC697CPX935-JE is to execute PLC control logic and coordinate communication between different automation components.

The CPU module performs several important tasks:

• Running ladder logic and control programs
• Processing digital and analog input signals
• Updating output states according to programmed logic
• Managing communication between PLC components
• Supporting system diagnostics and fault monitoring
• Coordinating intelligent modules through the PLC backplane

With its high-speed processor architecture, the IC697CPX935-JE is capable of handling complex control algorithms and large automation programs while maintaining fast response times.

Application Areas

Manufacturing Automation

The IC697CPX935-JE is widely used in automated production systems requiring reliable PLC control. It can manage machine sequences, material handling systems, and production line operations.

Typical applications include:

• Assembly lines
• Packaging equipment
• Motion control systems
• Industrial machinery

Power and Energy Systems

The module can be applied in energy-related automation systems for monitoring and controlling auxiliary equipment, electrical systems, and industrial processes.

Process Control

In chemical, pharmaceutical, and water treatment industries, the CPU provides reliable control execution for complex process operations.

Infrastructure Automation

The Series 90-70 platform is also used in transportation, building automation, and large infrastructure projects where long-term PLC reliability is required.

---

Installation and Maintenance

Installation Guidelines

Before installing the GE IC697CPX935-JE, technicians should follow these recommendations:

• Disconnect rack power before installation
• Confirm the correct PLC rack position
• Install the CPU module into the designated slot
• Connect the backup battery correctly
• Verify communication and memory protection settings

The module should be installed in a clean control cabinet with proper ventilation to maintain operating reliability.

Maintenance Recommendations

To ensure stable operation over time:

• Check battery condition regularly
• Monitor CPU diagnostic indicators
• Inspect rack connectors for contamination
• Verify PLC communication status
• Maintain proper cabinet temperature

For legacy GE Series 90-70 systems, keeping compatible spare CPU modules available can help reduce production downtime during unexpected failures.

---

System Integration Capability

The IC697CPX935-JE is designed as the central controller within GE Series 90-70 PLC systems. It can work together with:

• Digital and analog I/O modules
• Communication modules
• Operator interface devices
• Intelligent field controllers
• Industrial network components

Its expandable architecture allows users to maintain and upgrade existing automation systems without completely replacing the PLC infrastructure.

---

Product Summary

The GE IC697CPX935-JE Series 90-70 CPU Module is a powerful PLC controller designed for large-scale industrial automation applications. With a 96 MHz processor, extensive memory resources, flexible communication interfaces, and support for thousands of I/O points, it provides dependable control performance for demanding industrial environments.

————————————————————————————————————————————————————————————————————————
