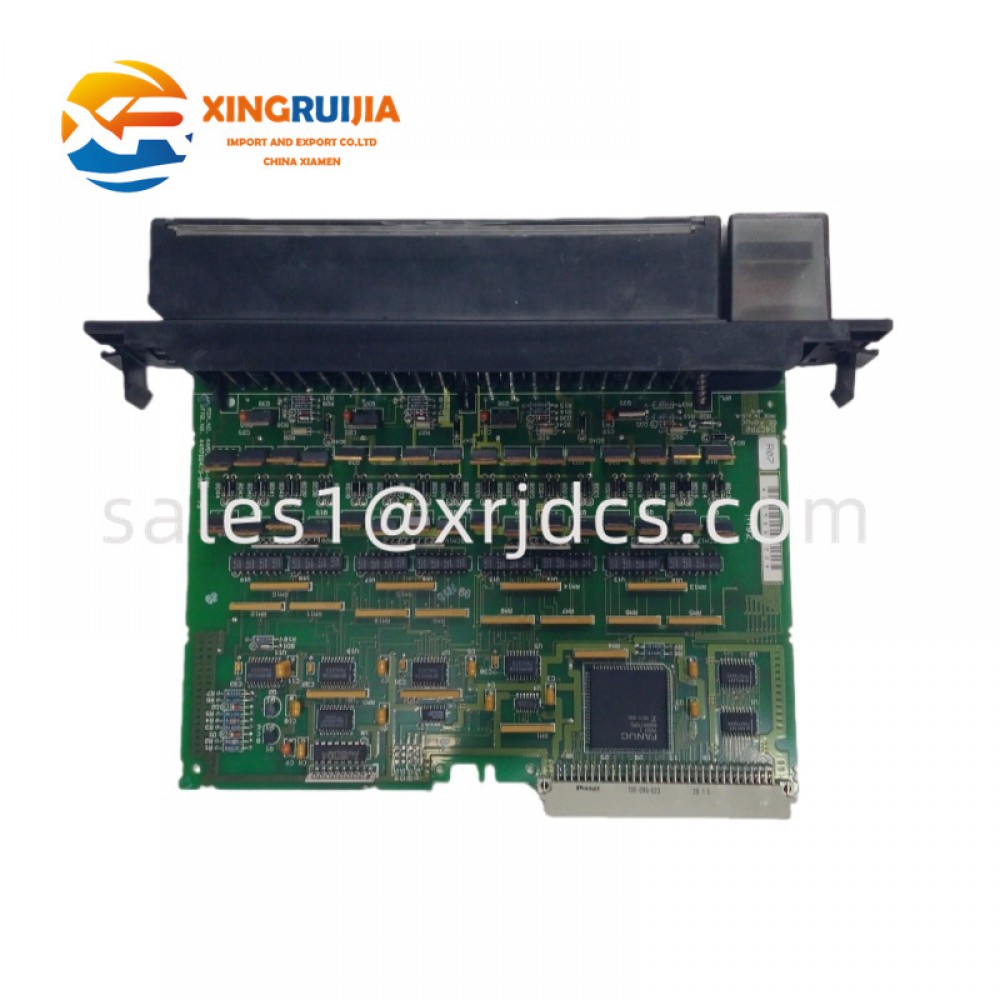

GE IC697MDL753C

At a Glance

The GE IC697MDL753C is a high-density digital output module for the GE Fanuc Series 90-70 PLC platform. It provides 32 DC output channels using negative logic and divides them into two isolated groups. GE's Series 90-70 documentation identifies the IC697MDL753 as a 5/48 VDC, 0.5 A negative-logic, 32-point output module.

This module is particularly relevant to plants that continue to operate legacy Series 90-70 control systems and require compatible replacement hardware.

Electrical Characteristics

The module supports a rated voltage of 5 VDC or 10–60 VDC. At 10–60 VDC, each output can handle up to 0.5 A, with a maximum of 4 A per output group. The 5 VDC configuration supports TTL-level operation.

The output architecture is designed for applications that may require higher inrush current. Published specifications also identify a maximum 5 A inrush current for a 20 ms period.

Why Use This Module?

For an existing Series 90-70 installation, replacing an individual I/O module can be more practical than modifying the entire control architecture. The IC697MDL753C provides a compact 32-point interface for DC field devices.

Its status LEDs are useful during commissioning and maintenance because technicians can observe the state of individual output points directly from the module.

Functional Layout

The module contains:

• 32 discrete DC output points
• Two isolated groups of 16 points
• Negative-logic output circuitry
• Individual output status indicators
• Interface circuitry for the Series 90-70 PLC backplane
• Protection and switching components

The two-group configuration should be considered when checking field wiring and power distribution.

Compatible Applications

The IC697MDL753C is intended for industrial control environments where DC output signals are required. Depending on the machine design, it can interface with compatible:

Solenoids — for pneumatic and hydraulic control.

Motor starters — for discrete motor-control functions.

Industrial actuators — where suitable DC switching is required.

Control relays — for interfacing with additional field circuits.

Machine sequences — for coordinating multiple discrete devices.

The connected loads must remain within the module's specified voltage and current limits.

Replacement Considerations

The C revision is an important identification detail. Sources list IC697MDL753C as the Series C revision of the IC697MDL753 family.

Before procurement, compare:

1. Full part number: IC697MDL753C
2. Revision designation
3. Number of output points
4. Negative-logic configuration
5. Field voltage
6. Output current requirements
7. Group wiring
8. Physical condition and connector integrity

This is especially useful when sourcing discontinued or surplus Series 90-70 components.

Maintenance Guidance

Always remove applicable power before replacing the module. Inspect the wiring and terminal connections for signs of overheating or loose contacts.

During troubleshooting, use the output LEDs as a first-level indication of the commanded output state. If a point does not operate correctly, verify the PLC logic, field supply, wiring, and connected load before concluding that the module itself has failed.

The GE Fanuc IC697MDL753C remains a useful replacement component for maintaining compatible Series 90-70 PLC installations and legacy industrial automation equipment.

————————————————————————————————————————————————————————————————————————
