GE IC697MEM717D

Product Overview

The GE IC697MEM717D is a CMOS memory expansion module designed for the GE Fanuc Series 90-70 PLC system (IC697 platform). It is used to extend the program and data storage capacity of compatible CPUs and coprocessor modules, enabling more complex control logic, larger datasets, and enhanced automation performance in industrial applications.

This module is part of the IC697 memory expansion family and is widely used in legacy GE industrial control systems where additional non-volatile memory is required for stable PLC operation.

---

Core Function

The IC697MEM717D is primarily responsible for:

• Expanding PLC user program memory
• Increasing data storage capacity for control applications
• Supporting complex ladder logic and function block programs
• Retaining critical data during power loss (CMOS non-volatile memory)
• Enhancing system scalability without replacing the CPU module

It is installed directly onto compatible GE IC697 CPU or coprocessor modules as a plug-in expansion board.

---

Technical Specifications

Item	Specification
Manufacturer	GE (GE Fanuc / Emerson legacy systems)
Model	IC697MEM717D
Product Type	CMOS Memory Expansion Module
Platform	GE Series 90-70 PLC (IC697)
Memory Type	CMOS static non-volatile memory
Capacity Options	64 KB / 128 KB / 256 KB / 512 KB (variant dependent)
Compatibility	IC697 CPU 771 / CPU 772 / PCM modules
Installation	Direct attachment to compatible module
Function	Program & data memory expansion
Retention	Battery-backed / non-volatile retention

---

Design & Structure

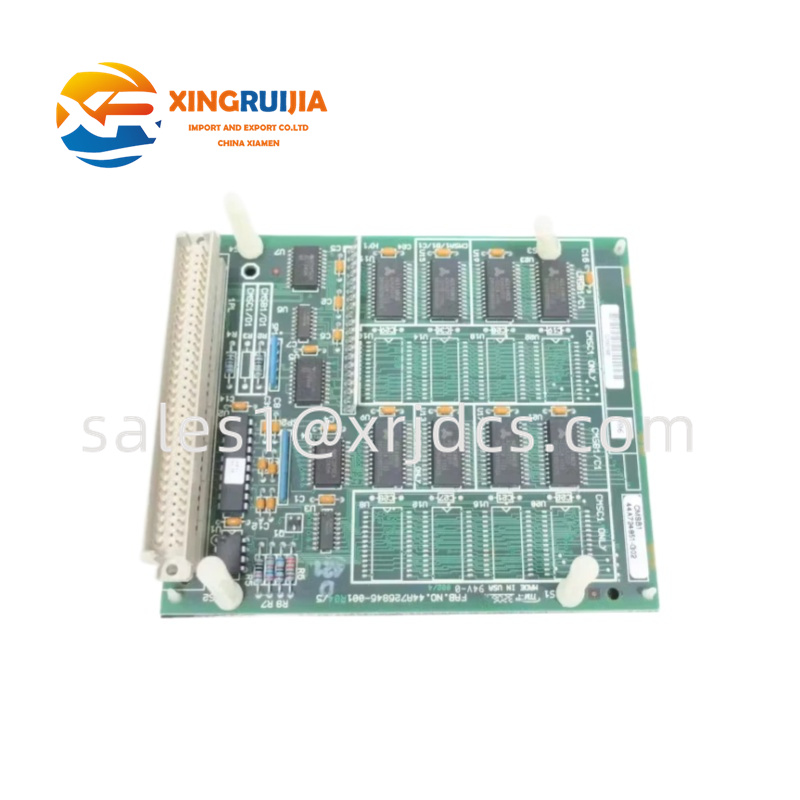

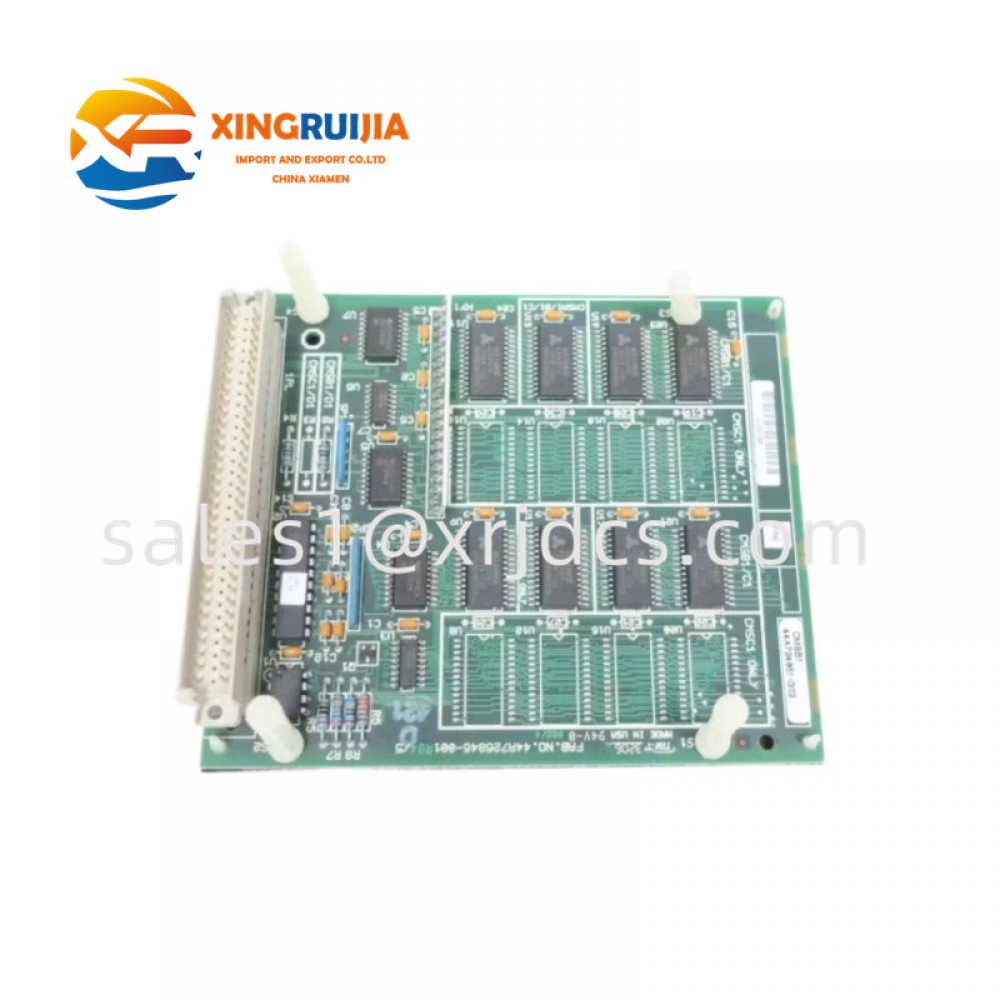

The IC697MEM717D is designed as a compact daughterboard that mounts directly onto a host PLC module. Its construction includes:

• CMOS memory ICs for non-volatile data storage
• Plug-in connector interface for CPU integration
• Compact PCB layout for rack compatibility
• Industrial-grade components for long-term operation
• Static-protected circuit design for reliability

This architecture allows seamless memory expansion without modifying the main PLC hardware.

---

Key Features

• Expands PLC memory capacity for complex automation programs
• Non-volatile CMOS storage ensures data retention during power loss
• Direct compatibility with GE IC697 Series 90-70 systems
• Easy plug-in installation without system redesign
• Supports large-scale industrial control applications
• Reliable operation in harsh industrial environments
• Long lifecycle support for legacy automation systems

---

Typical Applications

The GE IC697MEM717D is used in industrial automation environments such as:

• Manufacturing production lines
• Material handling and conveyor systems
• Power plant control systems
• Water and wastewater treatment facilities
• Oil and gas processing systems
• Chemical and petrochemical plants
• Large-scale PLC-based automation systems
• SCADA-integrated industrial control networks

It is especially valuable in systems requiring expanded logic capacity or extensive process data handling.

---

Installation Guidelines

To ensure proper operation:

• Install only on compatible IC697 CPU or PCM modules
• Power down PLC system before installation
• Align connector pins carefully to avoid damage
• Secure module firmly to avoid vibration issues
• Verify memory configuration in PLC programming software
• Follow GE Series 90-70 installation documentation

Improper installation may result in memory detection failure or system faults.

---

Maintenance & Handling

The IC697MEM717D is a low-maintenance module, but best practices include:

• Periodic inspection of module seating and connectors
• Checking for oxidation or dust accumulation
• Verifying program integrity after power cycles
• Ensuring battery backup (if applicable) is functional
• Replacing module if memory corruption or faults occur

In most cases, it is treated as a replace-and-run expansion module.

---

Industrial Importance

This module remains widely used due to:

• Continued operation of GE IC697 legacy PLC systems
• Cost-effective memory expansion without CPU replacement
• High reliability in critical industrial processes
• Strong compatibility within Series 90-70 architecture
• Long service life in harsh environments

It is especially important in plants where system upgrades are gradual rather than full replacements.

---

Conclusion

The GE IC697MEM717D CMOS Memory Expansion Module is a reliable and essential component for extending the capability of GE Series 90-70 PLC systems. With its non-volatile CMOS architecture, easy installation design, and support for complex industrial control applications, it enables legacy automation systems to handle larger programs and more demanding process requirements while maintaining stability and operational continuity.
